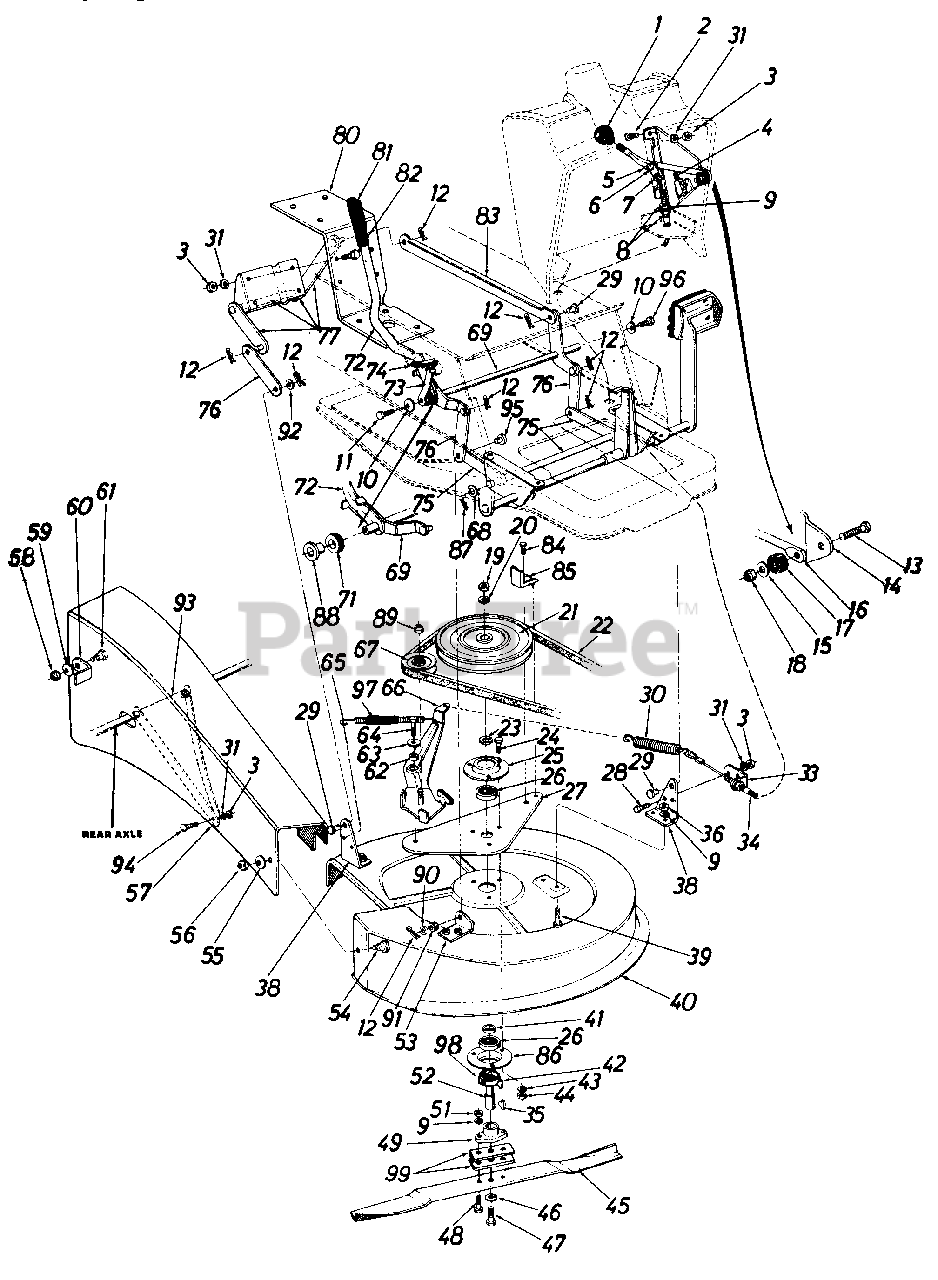

130-527-000 - MTD Lawn Tractor (1990) Parts15 Parts Diagram

Lawn Tractor

Parts15 Parts Diagram

  • Title

1

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

3

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

4

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

Note: (Blade Clutch)

$30.99

$

In Stock, only 2 left!

0

5

MTD 710-0282

Weld Pin .25" Dia. x .62" Lg.

$

$

Currently unavailable

6

MTD 726-0106

Push Cap .25" Dia.

$3.99

$

Usually ships in 3-6 days

0

7

MTD 761-0145

Clevis

$

$

Currently unavailable

8

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.*

$

$

Not available

9

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 736-0219

Bell-Wash. .40" I.D. x 1.11"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

11

MTD 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

12

MTD 714-0101

Internal Cot-Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

13

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

14

MTD 12476A

Deck Clutch Control Brkt.

$

$

Currently unavailable

15

MTD 736-0173

Fl-Wash. .28" I.D. x .75" O.D. x .063

$4.49

$

In Stock, only 4 left!

0

16

MTD 747-0157

Blade Clutch Lever

$

$

Not available

17

MTD 735-0165

Rubber Washer

$

$

Currently unavailable

18

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

19

MTD 712-0261

Hex Nut 5/8-11 Thd.*
(Superseded to 912-0261)

$

$

Not available

20

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

21

MTD 756-0143

Deck Pulley

$

$

Not available

22

MTD 754-0195A

"V"-Belt
(Superseded to 954-0195A)

$54.99

$

In Stock, only 4 left!

0

23

MTD 748-0168

Spacer

$

$

Currently unavailable

24

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.0" Lg.*

$

$

Not available

25

MTD 08253B

Bearing Housing

$19.99

$

In Stock, only 1 left!

0

26

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

27

MTD 12453

Deck Belt Guard Plate

$

$

Currently unavailable

28

MTD 710-0211

Hex Sems Bolt 1/4-20 x .75"

$

$

Not available

29

MTD 711-0332

Lift Brkt. Pin Special
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

30

MTD 732-0180

Extension Spring .88" O.D. x 4" Lg.
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

31

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

33

MTD 12509

Cable Bracket

$

$

Not available

34

MTD 746-0253

Clutch Control Cable 26.88" Lg.

$

$

Not available

35

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

36

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

MTD 12531

Deck Bracket

$

$

Currently unavailable

39

MTD 710-0451

Carriage Bolt 5/1 6-18 x .75" *

$4.49

$

In Stock, Qty 20+

0

40

MTD 14248

26" Deck Ass'y. Comp.

$

$

Currently unavailable

41

MTD 750-0142

Spacer .836" I.D. x 1.01" O.D. x.32" Lg.
(Superseded to 950-0142)

$

$

Not available

42

MTD 714-0388

#61 Hi-Pro Key 3/16 x 518" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

43

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

MTD 742-0255A

26" Blade

$

$

Currently unavailable

46

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

47

MTD 710-0151

Hex Bolt 3/8-24 x 2.0" Lg. H.T.

$7.49

$

In Stock, only 3 left!

0

48

MTD 710-0624

Hex Bolt 5/16-24 x 1.5" Lg. H.T.-Special

$5.99

$

Usually ships in 3-6 days

0

49

MTD 748-0189

Blade Adapter

$

$

Not available

51

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

52

MTD 738-0292

Blade Spindle

$

$

Not available

53

MTD 12532

Deck Bracket

Note: (Chute)

$

$

Currently unavailable

54

MTD 738-0183

Shld. Scr. .5" Dia. x .17" Lg.
(Superseded to 938-0183)

$

$

Not available

55

MTD 736-0140

Fl-Wash. 385" I.D. x .88" O.D.

$7.49

$

In Stock, Qty 7

0

56

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

57

MTD 12464

Chute Ass'y.

$

$

Not available

58

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0242

Bell-Wsh. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

60

MTD 12541

Chute Pivot Brkt.

$

$

Currently unavailable

61

MTD 738-0140

Shld. Bolt .437 I.D. x .18" Lg.

$5.99

$

In Stock, Qty 15

0

62

MTD 750-0258

Spacer .315" I.D. x .75" O.D. x .37 Lg.

$11.99

$

In Stock, only 1 left!

0

63

MTD 736-0231

Fl-Wash. .344" I.D. x 1.12" O.D. x .12

$4.99

$

In Stock, Qty 11

0

64

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

65

MTD 732-0308

Extension Spring
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

66

MTD 12469A

Deck Idler Brkt. Ass'y.

$

$

Not available

67

MTD 756-0116

V-Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

68

MTD 736-0116

Fl-Wash. .63" I.D. x .93" O.D. x .06"
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

69

MTD 12472

Lift Handle Shaft Ass'y.

$

$

Currently unavailable

71

MTD 12477

Rubber Wash.

$

$

Not available

72

MTD 749-0174

Lift Handle

$

$

Currently unavailable

73

MTD 12479

Lift Handle Stop

$

$

Currently unavailable

74

MTD 11249

Height Adj. Knob

$

$

Currently unavailable

75

MTD 1247

Lift Arm Shaft Ass'y.

$

$

Currently unavailable

76

MTD 10317

Deck Link

$

$

Not available

77

MTD 12502

Lift Pivot Brkt. Ass'y.

$

$

Not available

80

MTD 12853

Seat Support Ass'y.

$

$

Currently unavailable

81

MTD 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

82

MTD 710-0597

Hex Sems Bolt 1/4-20 x 1.0" Lg.

$3.99

$

In Stock, Qty 14

0

83

MTD 12495

Connecting Link

$

$

Currently unavailable

84

MTD 710-0627

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

85

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

86

MTD 15296

Open Bearing Hsg.
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

87

MTD 714-0507

Cotter Pin 3/32" Dia. x 75"

$4.49

$

In Stock, only 2 left!

0

88

MTD 748-0176

Flange Brg. .62" I.D. x .87" O.D. x .63" Lg.

$9.99

$

In Stock, only 1 left!

0

89

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

90

MTD 736-0160

Fl-Wash. .53" I.D. x.94" O.D. x .050"

$4.49

$

In Stock, only 2 left!

0

91

MTD 735-0185

Rubber Wash. .531" I.D. x 1.0" O.D. x .120"

$

$

Currently unavailable

92

MTD 736-0192

Fl-Wash. .531" I.D. x .93" O.D. x .090"

$4.49

$

In Stock, Qty 8

0

93

MTD 12852

Chute Baffie

$

$

Not available

94

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

95

MTD 711-0310

Clevis Pin .50"

$10.99

$

Usually ships in 3-6 days

0

96

MTD 710-0413

Self-Tap Scr. 3/16-16 x 1.0"
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

97

MTD 731-0339

Shrink Tube

$

$

Currently unavailable

98

MTD 13703

Bearing Shield

$

$

Not available

99

MTD 12626A

Spacer

Variations

MTD 12626A-0637

No Longer Available SPACER-BLA - POWDER BLACK (0637)

$

$

Not available

$

$
