130-527-000 - MTD Lawn Tractor (1990) Differential Assembly Parts Diagram

Lawn Tractor

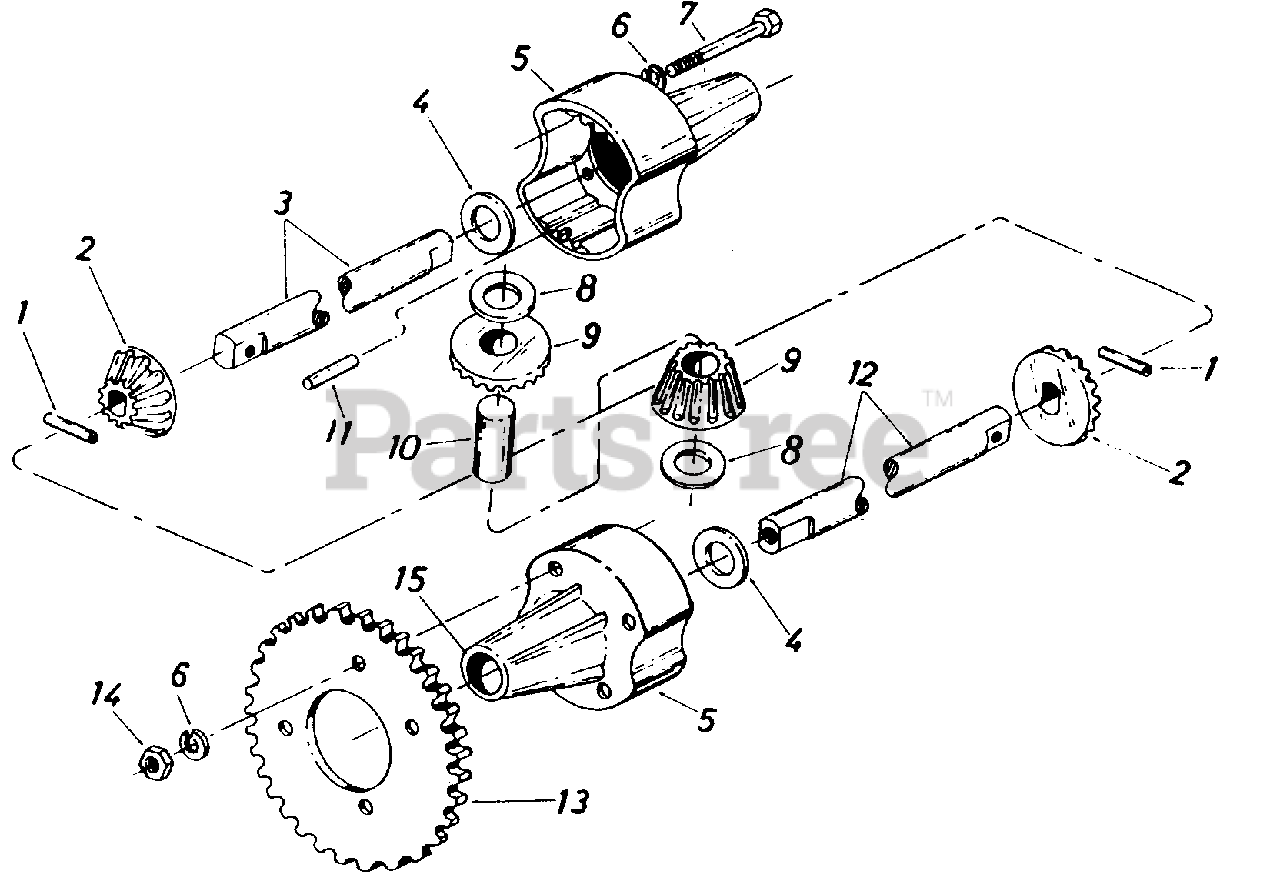

Differential Assembly Parts Diagram

  • Title

1

MTD 715-0247

Spring Pin Spiral 3/16" Dia. x 1.0" Lg.
(Superseded to 915-0247)

$

$

Not available

2

MTD 748-0156

Gear-Double"D" Hole
(Superseded to 948-0185)

$

$

Not available

3

MTD 738-0302

Shaft (Long)-15.11" Lg.

$

$

Not available

4

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49"

$4.49

$

In Stock, Qty 20+

0

5

MTD 719-0150

Housing Half

$86.99

$

Usually ships in 3-6 days

0

6

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0363

Hex Bolt 5/16-24 x 4" Lg.

$

$

Not available

8

MTD 736-0187

Fl-Wash. .64" I.D. x .24"

$4.49

$

In Stock, Qty 20+

0

9

MTD 748-0158

Gear-Round Hole
(Superseded to 948-0158)

$

$

Not available

10

MTD 711-0276

Drive Pin

$

$

Not available

11

MTD 715-0145

Dowel Pin 3/16" Dia. x .62"

$

$

Not available

12

MTD 738-0303

Shaft (Short) 7.58" Lg.

$

$

Not available

13

MTD 713-0162

Sprocket-48 Teeth

$

$

Not available

14

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 3 left!

0

15

MTD 748-0169

Flange Bearing
(Superseded to 948-0169)

$5.99

$

Usually ships in 3-6 days

0
