130.280111 (2690978 A) - Craftsman LT2146 Series 46" Lawn Tractor, 21hp Seat Deck & Fuel Tank Group - EVAP Compliant (19.5GT, 21GT & 24GT) Parts Diagram

LT2146 Series 46" Lawn Tractor, 21hp

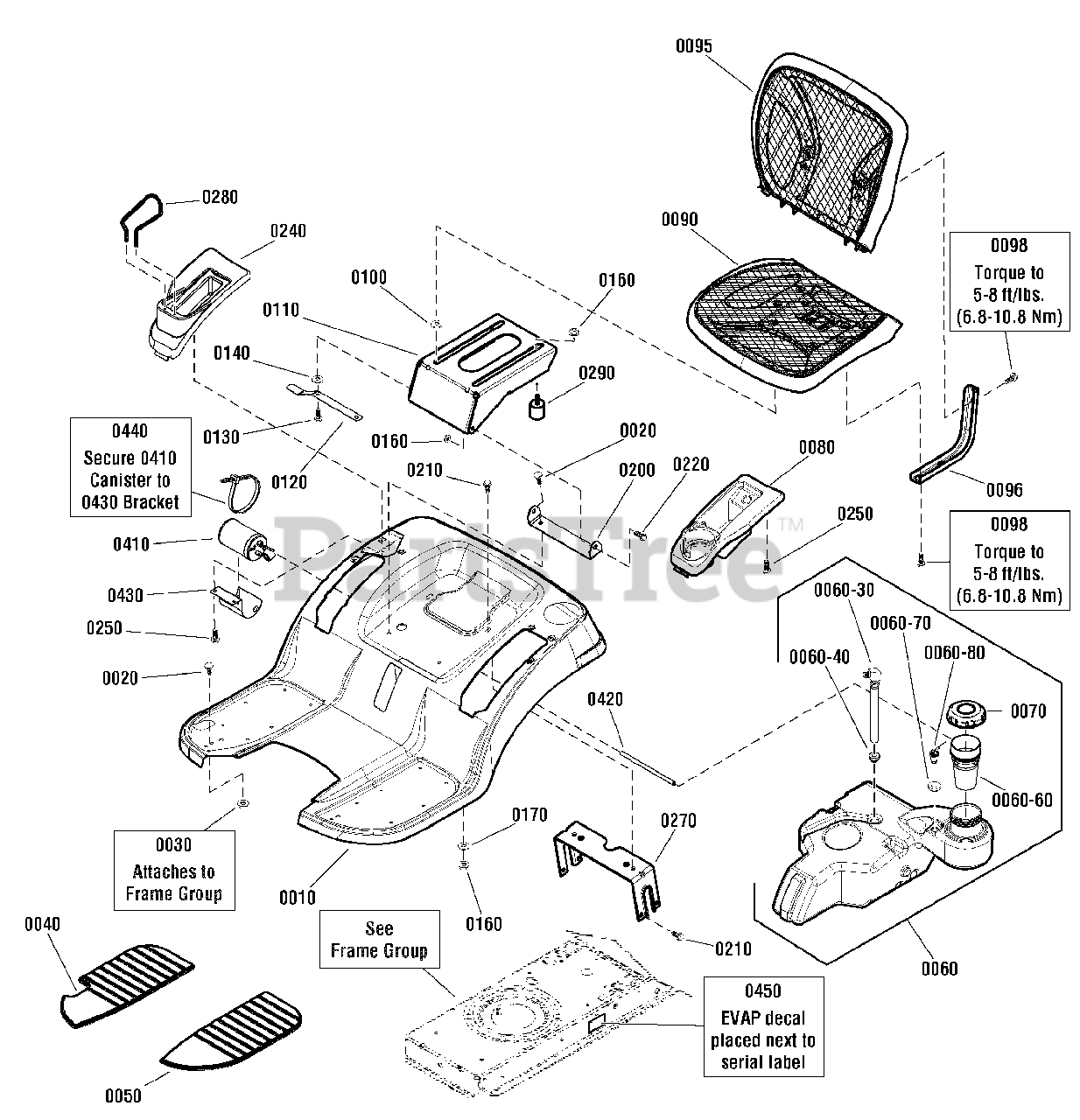

Seat Deck & Fuel Tank Group - EVAP Compliant (19.5GT, 21GT & 24GT) Parts Diagram

  • Title

0010

Snapper 1727264D

DECK, Seat
(Superseded to 1727264DSM)

$542.99

$

Usually ships in 2-12 days

0

0020

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0030

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 1728007

PAD, Footrest R.H.
(Superseded to 1728007SM)

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 1728006

PAD, Footrest L.H.
(Superseded to 1728006SM)

$21.99

$

In Stock, only 1 left!

0

0060

Snapper 1751226

TANK, Fuel
(Superseded to 1751226YP)

$311.99

$

Usually ships in 2-12 days

0

0060-30

Snapper 1736609

FITTING & HOSE ASSEMBLY, Fuel Tank
(Superseded to 1736609YP)

$24.99

$

In Stock, only 1 left!

0

0060-40

Snapper 1654930

BUSHING, Fuel Tank
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0060-60

Snapper 1751531

DROP TUBE

$

$

Not available

0060-70

Snapper 209043

GROMMET
(Superseded to 799624)

$8.99

$

In Stock, Qty 15

0

0060-80

Snapper 7104638

REMOTE VENT ASSEMBLY
(Superseded to 770046)

$16.99

$

In Stock, only 1 left!

0

0070

Snapper 5103005

CAP, Fuel, EVAP
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

0080

Snapper 1739015

POD, L.H.
(Superseded to 1739015YP)

$34.99

$

Usually ships in 2-12 days

0

0090

Snapper 1738013

SEAT, Mesh Bottom
(Superseded to 1738013YP)

$225.99

$

In Stock, only 1 left!

0

0095

Snapper 1738014

SEAT, Mesh Back
(Superseded to 1738014YP)

$262.99

$

In Stock, only 1 left!

0

0096

Snapper 1737848A

SUPPORT, Mesh Seat
(Superseded to 1737848AYP)

$29.99

$

Usually ships in 2-12 days

0

0098

Snapper 1930591

CAPSCREW, Hex, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

0100

Snapper 1731300

SPACER, 5/16 ID x 1-1/4 OD
(Superseded to 1731300SM)

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1727265A

SUPPORT, Seat
(Superseded to 1727265SM)

$102.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268

LATCH, Seat
(Superseded to 1727268SM)

$8.99

$

Usually ships in 2-12 days

0

0130

Snapper 1960667

CAPSCREW, Hex, Whiz Lock, 5/16-18 x 1
(Superseded to 1960667SM)

$4.99

$

Usually ships in 2-12 days

0

0140

Snapper 1919381

WASHER, 5/16 x 1 OD
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0160

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1709256

WASHER, Spring, 5/16 ID x 1-1/4 OD
(Superseded to 1709256SM)

$5.99

$

In Stock, only 2 left!

0

0200

Snapper 1727266A

PIVOT, Seat
(Superseded to 1687866)

$74.99

$

Usually ships in 2-12 days

0

0210

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0220

Snapper 1729576

BOLT, Shoulder, 5/16-18 x 15/32, G5
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0240

Snapper 1738795

POD, Electric, HOC, R.H.
(Superseded to 1738795YP)

$26.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960536

CAPSCREW, Hex Washer Head, 1/4 x 1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 1731310A

SUPPORT, Seat Deck
(Superseded to 1731310SM)

$36.99

$

Usually ships in 2-12 days

0

0280

Snapper 1739276

ROD, Bottle Retainer
(Superseded to 1739276YP)

$13.99

$

Usually ships in 2-12 days

0

0290

Snapper 5022612

BUMPER, Rubber, 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

0410

Snapper 1751599

CANISTER, Carbon, 300cc (Includes Filter)
(Superseded to 1751599YP)

$59.99

$

Usually ships in 2-12 days

0

0410A

Snapper 1752800

FILTER, Dust (Fits On End of Cannister)(Not Shown Separately)
(Superseded to 1752800YP)

$15.99

$

In Stock, only 1 left!

0

0420

Snapper 1751715

HOSE, Vapor, 5mm
(Superseded to 1751715YP)

$17.99

$

In Stock, only 1 left!

0

0430

Snapper 1751519BM

BRACKET, Canister Mounting
(Superseded to 1751519BMYP)

$10.99

$

Usually ships in 2-12 days

0

0440

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0450

Snapper 1752229

DECAL, EVAP
(Superseded to 1752229YP)

$9.49

$

Usually ships in 2-12 days
