13/30 (312006x11E) - Hayter Heritage 30" Lawn Tractor, Canada (2008) Grass Bagger Parts Diagram

Heritage 30" Lawn Tractor, Canada

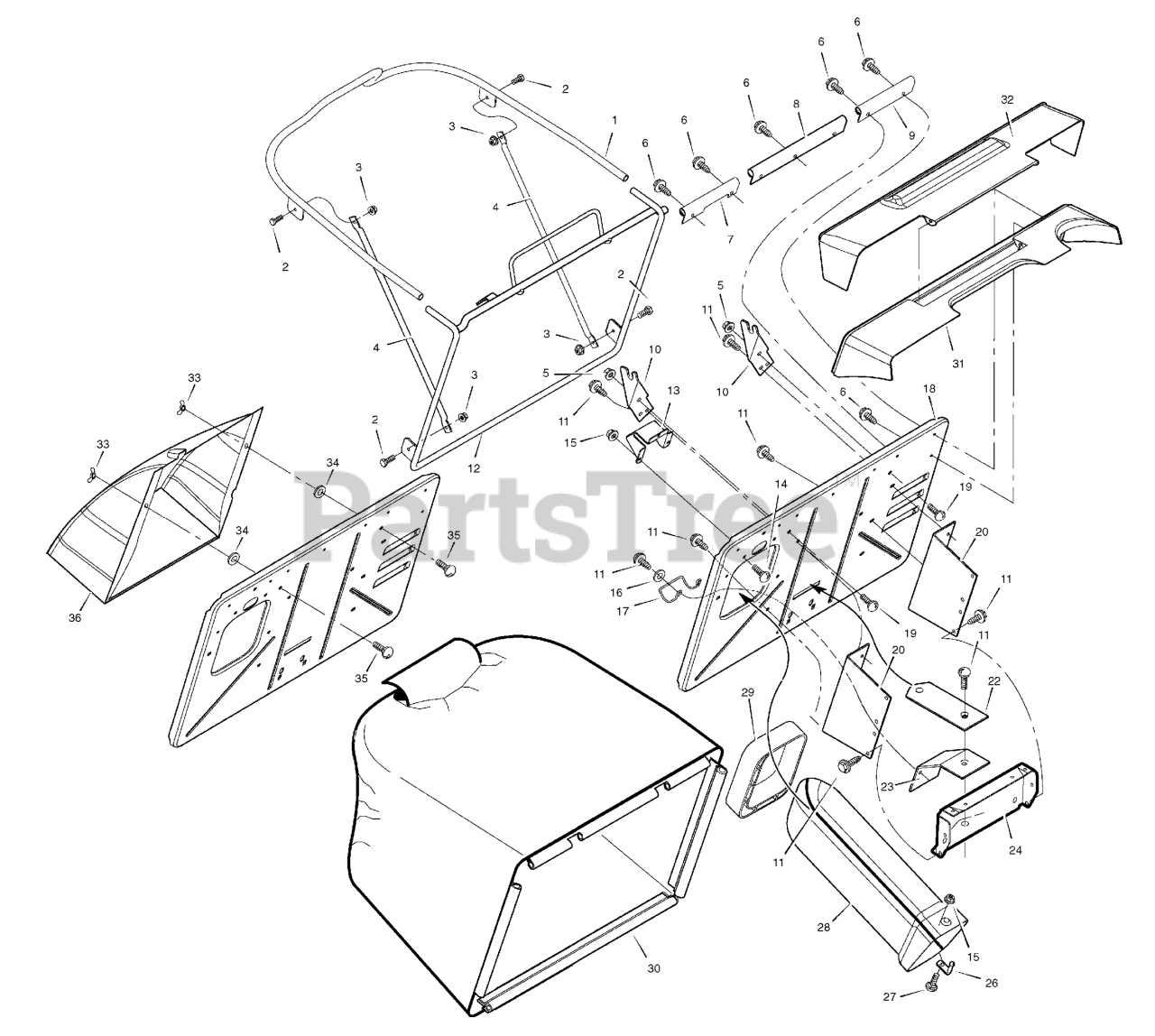

Grass Bagger Parts Diagram

  • Title
1

Murray MU690404MA

TUBE, Top

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU690433MA

STRUT, Bag

$

$

Currently unavailable

5

Murray MU7090585MA

NUT, Flange

$

$

Currently unavailable

6

Murray MU0193X2MA

FASTENER, Panel

$

$

Currently unavailable

7

Murray MU690491MA

SEAL, Bag (Right End)

$

$

Currently unavailable

8

Murray MU690492MA

SEAL, Bag (Center)

$

$

Currently unavailable

9

Murray MU690493MA

SEAL, Bag (Left End)

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

12

Murray MU690403MA

ASSEMBLY, Bag Frame

$

$

Currently unavailable

13

Murray MU7300768ZMA

BRACKET, Switch

$

$

Currently unavailable

14

Murray MU002X82MA

BOLT, Carriage

$

$

Currently unavailable

15

Murray MU015X89MA

NUT, Flange

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU690402MA

LATCH, Spring

$

$

Currently unavailable

18

Murray MU7300833ZMA

PANEL, Rear

$

$

Currently unavailable

19

Murray MU002X53MA

BOLT, Carriage

$

$

Currently unavailable

20

Murray MU7300731ZMA

BRACKET, Bagger Mounting

$

$

Currently unavailable

22

Murray MU7300835ZMA

PLATE, Hitch

$

$

Currently unavailable

23

Murray MU7300757ZMA

BRACKET, Lower Mounting

$

$

Currently unavailable

24

Murray MU7300864ZMA

PLATE, Hitch

$

$

Currently unavailable

26

Murray MU054563MA

PIN, Latch

$

$

Currently unavailable

27

Murray MU002X39MA

BOLT, Carriage

$

$

Currently unavailable

28

Murray MU690368MA

TUBE, Connecting

$

$

Currently unavailable

29

Murray MU690429MA

GROMMET, Extension Tube

$

$

Currently unavailable

30

Murray MU690438MA

BAG, Grass

$

$

Currently unavailable

31

Murray MU885163YP

BAGGER COVER, FRONT

$

$

Currently unavailable

32

Murray MU885164YP

BAGGER COVER, REAR

$

$

Currently unavailable

33

$

$

Currently unavailable

34

Murray MU028X44MA

SPEED NUT

$

$

Currently unavailable

35

Murray MU002X74MA

BOLT, Carriage

$

$

Currently unavailable

36

Murray MU1737657YP

DEFLECTOR, 30" RD

$

$

Currently unavailable

37

Murray MU1687447YP

DEFLECTOR KIT

Note: (Includes Ref. Nos. 33, 34, 35, 36)

$

$

Currently unavailable
