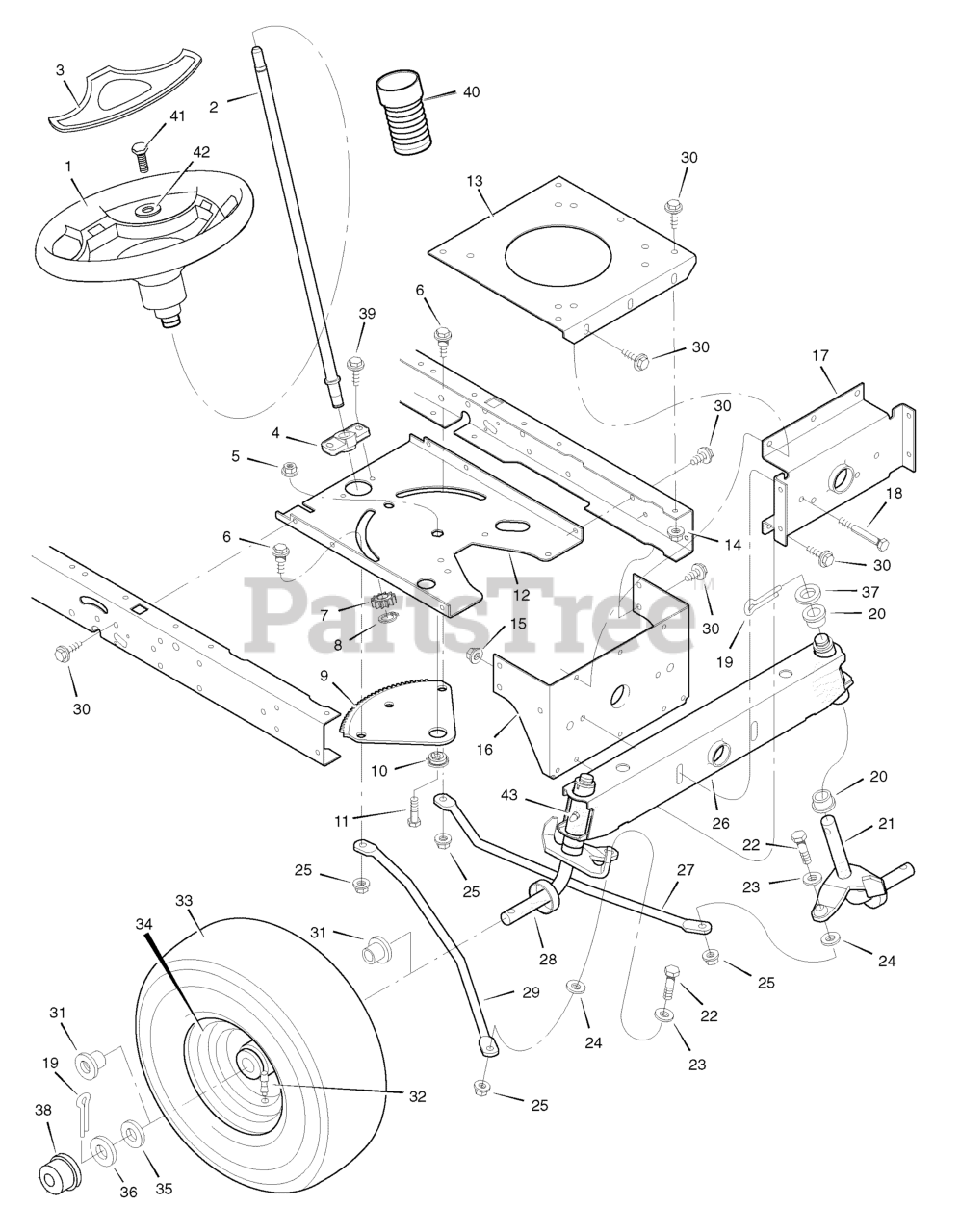

13/30 (312002x11E) - Hayter Heritage 30" Lawn Tractor, Canada (2007) Steering Parts Diagram

Heritage 30" Lawn Tractor, Canada

Steering Parts Diagram

  • Title
1

Murray MU1001980MA

WHEEL, Steering

$

$

Currently unavailable

2

Murray MU690625MA

Post, Steering

$

$

Currently unavailable

3

Murray MU1001982MA

Insert, Steering Wheel

$

$

Currently unavailable

4

Murray MU094124MA

BEARING, Lower

$

$

Currently unavailable

5

Murray MU15X111MA

NUT, Flange

$

$

Currently unavailable

6

Murray MU009X57MA

BOLT, Shoulder

$

$

Currently unavailable

7

Murray MU1001893MA

Gear, Pinion

$

$

Currently unavailable

8

Murray MU011X25MA

Ring, Snap

$

$

Currently unavailable

9

Murray MU094121MA

Gear, Sector

$

$

Currently unavailable

10

$

$

Currently unavailable

$

$

Currently unavailable

12

Murray MU1001121E701MA

Plate, Steering

$

$

Currently unavailable

13

Murray MU094006E701MA

Plate, Engine

$

$

Currently unavailable

14

Murray MU015X88MA

NUT, Flange

$

$

Currently unavailable

15

Murray MU15X118MA

NUT, Flange

$

$

Currently unavailable

16

Murray MU1001270E701MA

BRACKET, Hanger

$

$

Currently unavailable

17

Murray MU094007E701MA

Axle, Hanger

$

$

Currently unavailable

$

$

Currently unavailable

19

Murray MU030X49MA

PIN, Cotter

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Murray MU1001299E701MA

Spindle Assembly, Left

$

$

Currently unavailable

$

$

Currently unavailable

23

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Murray MU015X84MA

NUT, Flange

$

$

Currently unavailable

26

Murray MU690210MA

Axle Assembly

$

$

Currently unavailable

27

Murray MU095329E701MA

Drag Link, Left

$

$

Currently unavailable

28

Murray MU1001298E701MA

Spindle Assembly, Right

$

$

Currently unavailable

29

Murray MU095328E701MA

Drag Link, Right

$

$

Currently unavailable

$

$

Currently unavailable

31

Murray MU091334MA

BEARING, Wheel

$

$

Currently unavailable

32

Murray MU024373MA

Stem, Valve

$

$

Currently unavailable

33

$

$

Currently unavailable

$

$

Currently unavailable

34

Murray MU690377601MA

WHEEL and Tire Assembly *

$

$

Currently unavailable

35

$

$

Currently unavailable

36

$

$

Currently unavailable

37

$

$

Currently unavailable

38

$

$

Currently unavailable

$

$

Currently unavailable

40

$

$

Currently unavailable

$

$

Currently unavailable

42

$

$

Currently unavailable

43

Murray MU092530MA

Fitting, Grease

$

$

Currently unavailable
