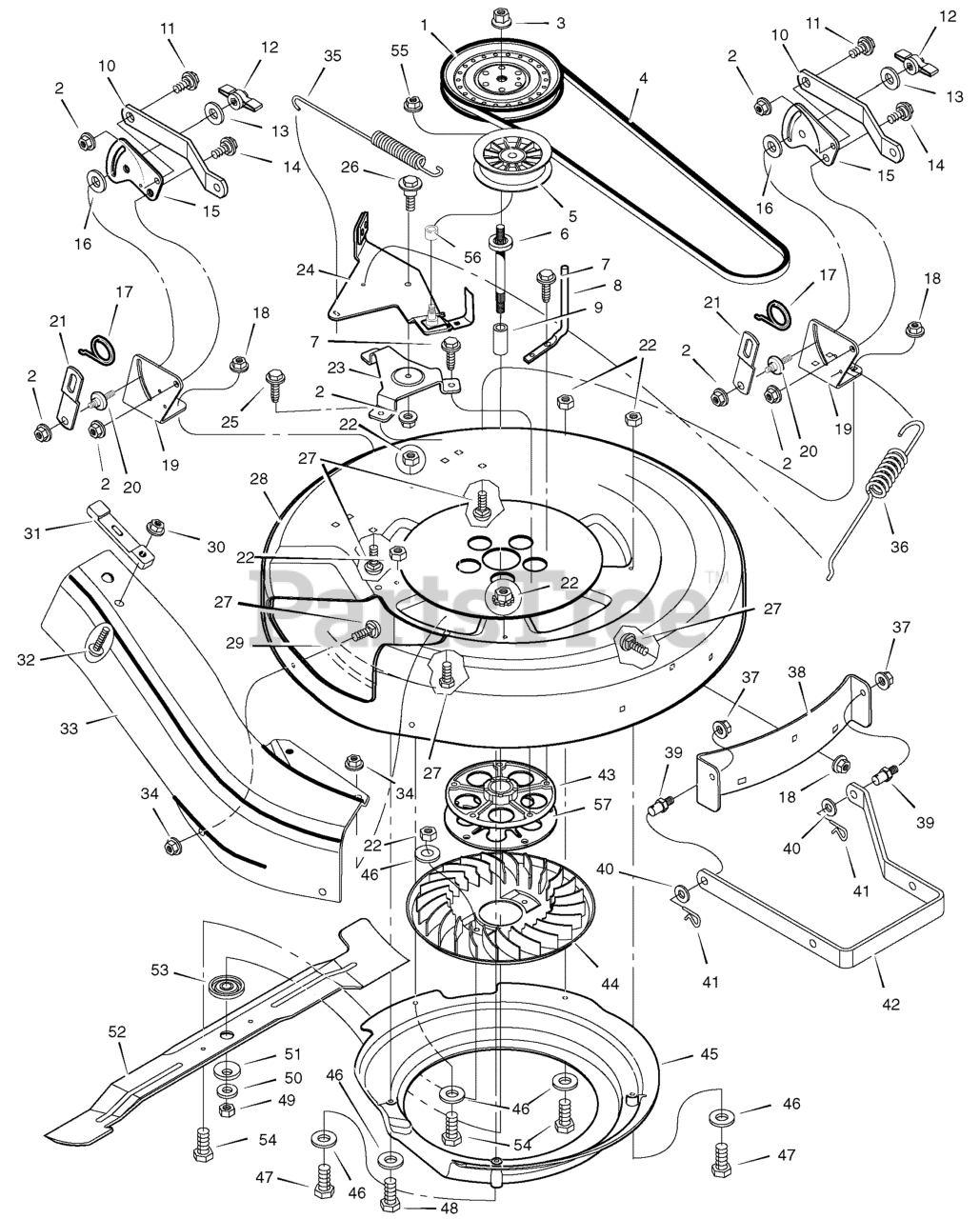

13/30 (312002x11E) - Hayter Heritage 30" Lawn Tractor, Canada (2007) Mower Housing Parts Diagram

Heritage 30" Lawn Tractor, Canada

Mower Housing Parts Diagram

  • Title

$

$

Currently unavailable

2

Murray MU015X84MA

NUT, Flange

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU037X74MA

BELT, Blade

$

$

Currently unavailable

5

Murray MU091801MA

PULLEY, Idler

$

$

Currently unavailable

6

$

$

Currently unavailable

$

$

Currently unavailable

8

Murray MU092424MA

GUIDE, Belt

$

$

Currently unavailable

$

$

Currently unavailable

10

Murray MU094055E701MA

BRACKET, Rear Suspension

$

$

Currently unavailable

11

Murray MU009X52MA

BOLT, Shoulder

$

$

Currently unavailable

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Murray MU009X51MA

BOLT, Shoulder

$

$

Currently unavailable

15

Murray MU690379E701MA

Plate, Suspension

$

$

Currently unavailable

16

Murray MU094137MA

Pad, Friction

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Murray MU015X79MA

NUT, Flange

$

$

Currently unavailable

19

Murray MU690378E701MA

BRACKET, Rear Deck

$

$

Currently unavailable

20

Murray MU095194MA

PIN, Hanger

$

$

Currently unavailable

21

$

$

Currently unavailable

$

$

Currently unavailable

23

Murray MU690427E701MA

BRACKET, Idler Arm

$

$

Currently unavailable

24

Murray MU1002076MA

ASSEMBLY, Idler Arm & Pad

$

$

Currently unavailable

$

$

Currently unavailable

26

Murray MU009X39MA

BOLT, Shoulder

$

$

Currently unavailable

27

Murray MU002X64MA

BOLT, Carriage

$

$

Currently unavailable

28

Murray MU690530E701MA

Housing, Blade

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU015X89MA

NUT, Flange

$

$

Currently unavailable

31

Murray MU054695MA

Strap, Rubber

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

35

Murray MU165X118MA

SPRING, PTO

$

$

Currently unavailable

36

Murray MU165X140MA

SPRING, Extension

$

$

Currently unavailable

37

Murray MU015X84MA

NUT, Flange

$

$

Currently unavailable

38

Murray MU690380E701MA

BRACKET, Front Deck

$

$

Currently unavailable

39

Murray MU094067MA

PIN, Threaded Shoulder

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Murray MU0031X4MA

PIN, Hair

$

$

Currently unavailable

42

Murray MU1002067E701MA

HANGER, Front

$

$

Currently unavailable

43

Murray MU1401275MA

Housing, Jackshaft

$

$

Currently unavailable

44

Murray MU690359MA

Fan, Assist

$

$

Currently unavailable

45

Murray MU1001237MA

Housing, Fan

$

$

Currently unavailable

46

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Murray MU17X166MA

WASHER, Belleville

$

$

Currently unavailable

$

$

Currently unavailable

53

Murray MU092466MA

Adapter, Blade

$

$

Currently unavailable

$

$

Currently unavailable

55

Murray MU015X98MA

NUT, Flange

$

$

Currently unavailable

56

$

$

Currently unavailable

57

Murray MU1001952E701MA

Plate, Jackshaft Support

$

$

Currently unavailable
