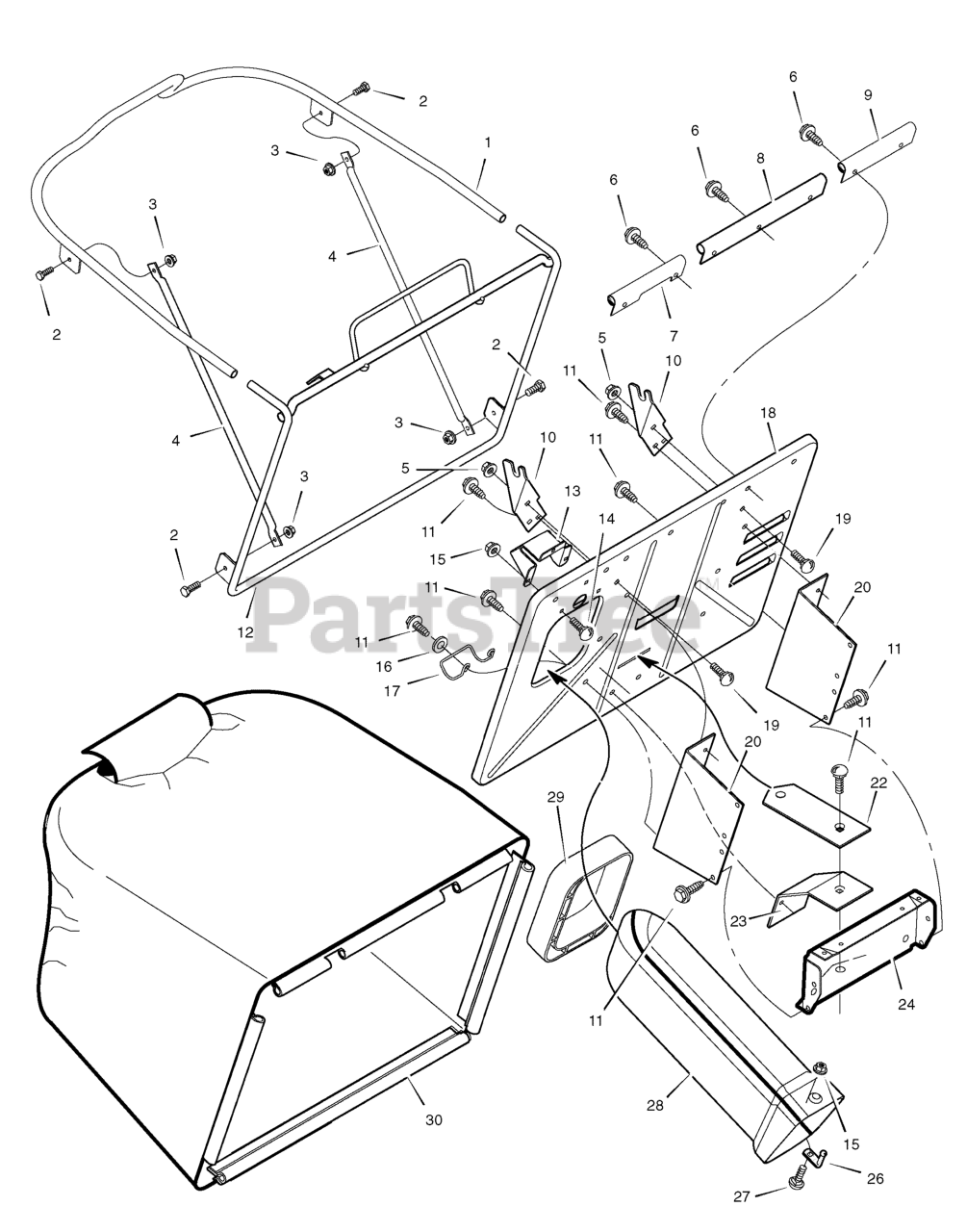

13/30 (312002x11E) - Hayter Heritage 30" Lawn Tractor, Canada (2007) Grass Bagger Parts Diagram

Heritage 30" Lawn Tractor, Canada

Grass Bagger Parts Diagram

  • Title
1

Murray MU690404MA

Tube, Top

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU690433MA

Strut, Bag

$

$

Currently unavailable

5

Murray MU015X79MA

NUT, Flange

$

$

Currently unavailable

6

Murray MU0193X2MA

FASTENER, Panel

$

$

Currently unavailable

7

Murray MU690491MA

Seal, Bag (Right End)

$

$

Currently unavailable

8

Murray MU690492MA

Seal, Bag (Center)

$

$

Currently unavailable

9

Murray MU690493MA

Seal, Bag (Left End)

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

12

Murray MU690403MA

ASSEMBLY, Bag Frame

$

$

Currently unavailable

13

Murray MU690400E701MA

BRACKET, Switch

$

$

Currently unavailable

14

Murray MU002X82MA

BOLT, Carriage

$

$

Currently unavailable

15

Murray MU015X89MA

NUT, Flange

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU690402MA

Latch, Spring

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Murray MU002X53MA

BOLT, Carriage

$

$

Currently unavailable

20

Murray MU690355E701MA

BRACKET, Bagger Mounting

$

$

Currently unavailable

22

Murray MU1001000E701MA

Plate, Hitch

$

$

Currently unavailable

23

Murray MU1001001E701MA

BRACKET, Lower Mounting

$

$

Currently unavailable

24

Murray MU1001002E701MA

Plate, Hitch

$

$

Currently unavailable

26

Murray MU054563MA

PIN, Latch

$

$

Currently unavailable

27

Murray MU002X39MA

BOLT, Carriage

$

$

Currently unavailable

28

Murray MU690368MA

Tube, Connecting

$

$

Currently unavailable

29

Murray MU690429MA

Grommet, Extension Tube

$

$

Currently unavailable

30

Murray MU690438MA

Bag, Grass

$

$

Currently unavailable
