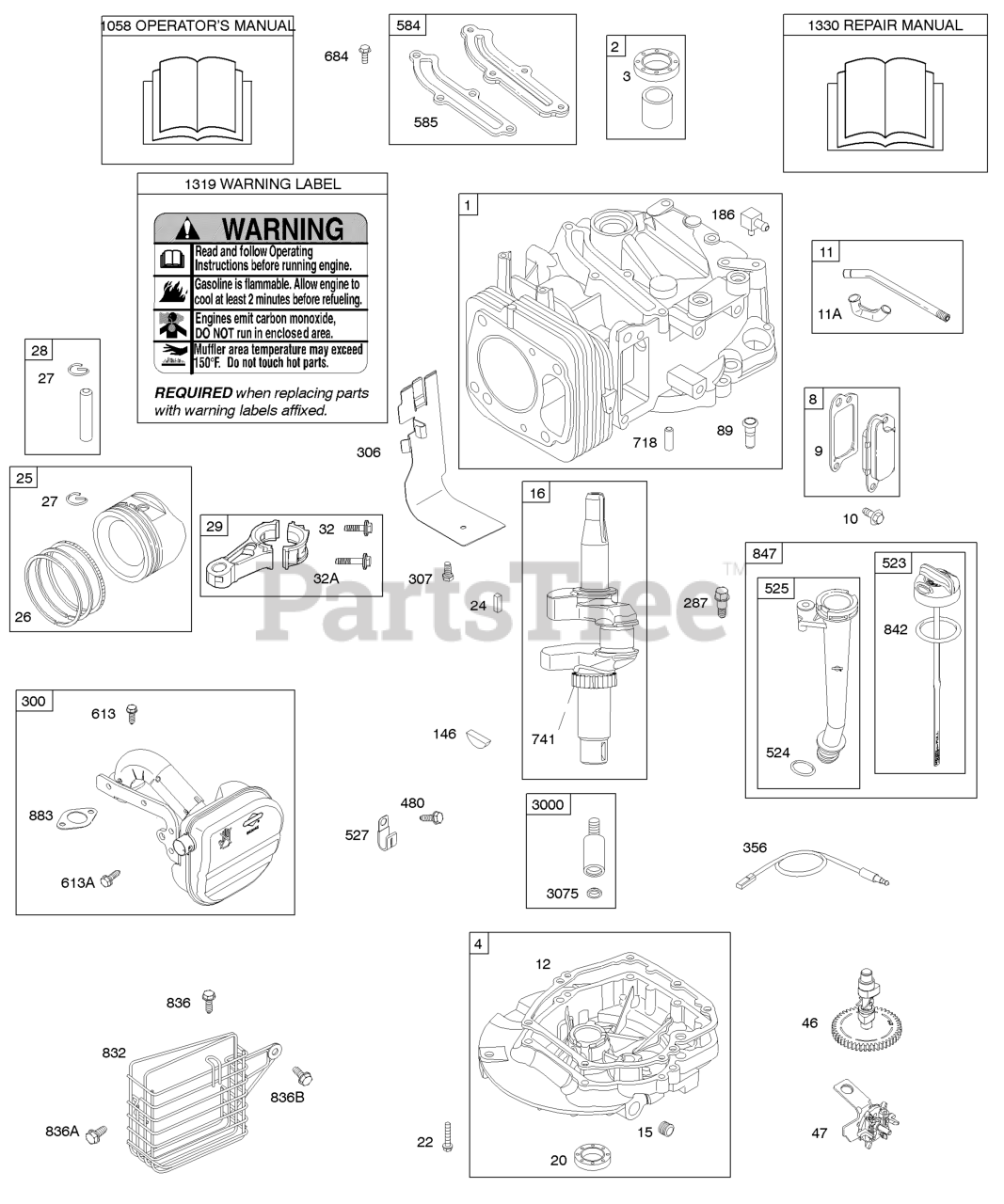

12Y602-0111-E1 - Briggs & Stratton Vertical Engine Cylinder, Piston, Crankshaft, Operator's Manual, Muffler, Crankcase Cover/Sump, Lubrication Parts Diagram

Vertical Engine

Cylinder, Piston, Crankshaft, Operator's Manual, Muffler, Crankcase Cover/Sump, Lubrication Parts Diagram

  • Title

1

Briggs & Stratton 697893

Cylinder Assembly

$251.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

4

Briggs & Stratton 696340

Sump-Engine

$103.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 495786

Breather Assembly
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 699833

Gasket-Breather

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691125

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 499675

Tube-Breather
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

11A

Briggs & Stratton 692937

Tube-Breather

$9.49

$

In Stock, Qty 14

0

12

Briggs & Stratton 692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 692824

Crankshaft

$100.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781S

Seal-Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 793000

Piston Assembly

Note: (.020 Oversize)

$95.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 791968

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 499631

Ring Set

Note: (Standard) Used Before Code Date 04040500

$53.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 692786

Ring Set

Note: (.020 Oversize) Used Before Code Date 04040500

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791969

Ring Set

Note: (Standard) Used After Code Date 04040400

$38.99

$

In Stock, Qty 12

0

26

Briggs & Stratton 793001

Ring Set

Note: (.020 Oversize) Used After Code Date 04040400

$40.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod) (1 3/32" Long)

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod) (1 1/2" Long)

$4.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 694039

Camshaft

$65.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 697732

Slinger-Oil

$12.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 692348

Plug-Oil

$3.49

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 690979

KEY, Woodruff

Note: Used Before Code Date 04060900

$3.49

$

In Stock, Qty 8

0

186

Briggs & Stratton 861190

Connector-Hose

$16.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 690940

Screw

Note: (Dipstick Tube)

$3.99

$

In Stock, Qty 14

0

300

Briggs & Stratton 699769

Muffler

$55.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 691232

Shield-Cylinder

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 861294

Wire-Stop

$9.99

$

Usually ships in 2-12 days

0

480

Briggs & Stratton 691108

SCREW

Note: (Tube Clamp) Used Before Code Date 03090200

$3.49

$

In Stock, Qty 20+

0

523

Briggs & Stratton 698175

Dipstick

Note: (24 Ounces)

$9.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 692296

Seal-Dipstick Tube

$4.99

$

In Stock, Qty 7

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

527

Briggs & Stratton 698467

Clamp-Tube

Note: Used Before Code Date 03090200

$4.99

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697734

Cover-Breather Passage

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

613

Briggs & Stratton 691108

SCREW

Note: (Muffler) (19/32" Long)

$3.49

$

In Stock, Qty 20+

0

613A

Briggs & Stratton 691140

Screw

Note: (Muffler) (2/3" Long)

$3.99

$

Usually ships in 2-12 days

0

684

Briggs & Stratton 690345

Screw

Note: (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 790345

Gear-Timing

Note: Used After Code Date 04060800

$15.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691830

Gear-Timing

Note: Used Before Code Date 04060900

$17.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 861201

Guard-Muffler

$44.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 694593

Screw
(Superseded to 691693)

Note: (Muffler Guard)

$3.99

$

In Stock, Qty 12

0

836A

Briggs & Stratton 691108

SCREW

Note: (Muffler Guard)

$3.49

$

In Stock, Qty 20+

0

836B

Briggs & Stratton 691140

Screw

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 698176

Dipstick/Tube Assembly

$11.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

1058

Briggs & Stratton MS3813

Operator's Manual

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 275110

Repair Manual

$42.99

$

In Stock, only 1 left!

0

3000

Briggs & Stratton 861185

Adapter/Seal-Crankshaft

$34.99

$

Usually ships in 2-12 days

0

3075

Briggs & Stratton 861268

Seal-Crankshaft Adapter

$7.49

$

Usually ships in 2-12 days

0
