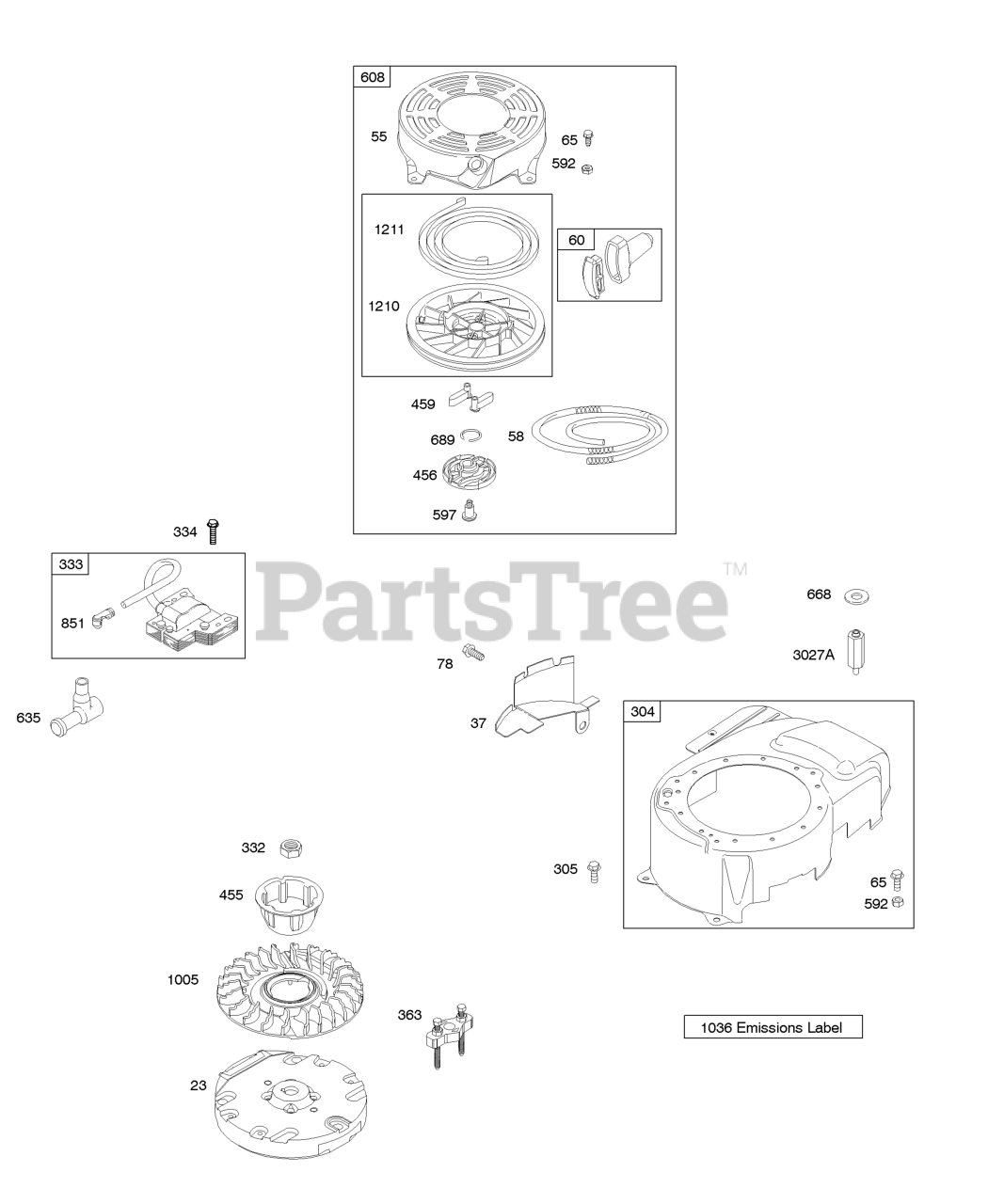

12Y602-0110-E2 - Briggs & Stratton Vertical Engine Rewind, Ignition, Flywheel, Blower Housing Parts Diagram

Vertical Engine

Rewind, Ignition, Flywheel, Blower Housing Parts Diagram

  • Title

23

Briggs & Stratton 699488

Flywheel

$185.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 694086

Guard-Flywheel
(Superseded to 793756)

Note: Used Before Code Date 07011000

$10.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton 793756

Guard-Flywheel

Note: Used After Code Date 07010900

$10.99

$

In Stock, only 3 left!

0

55

Briggs & Stratton 691421

Housing-Rewind Starter

$64.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (70" Long)

$9.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 697742

Grip-Starter Rope

$5.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 690837

Screw

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

78

Briggs & Stratton 691108

SCREW

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 861188

Housing-Blower

$59.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 791960

Cup-Flywheel

$11.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 13

0

592

Briggs & Stratton 690800

Nut

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 697743

Starter-Rewind

$58.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692927

Boot-Spark Plug
(Superseded to 798619)

$6.49

$

In Stock, only 1 left!

0

668

Briggs & Stratton 861231

Spacer

Note: (Standoff) Used Before Code Date 03061600

$3.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691855

SPRING, Friction

Note: (Rewind Starter)

$4.49

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley) (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring) (Spring)

$19.99

$

In Stock, Qty 20+

0

3027A

Briggs & Stratton 861228

Standoff

Note: (Blower Housing)

$4.99

$

Usually ships in 2-12 days

0
