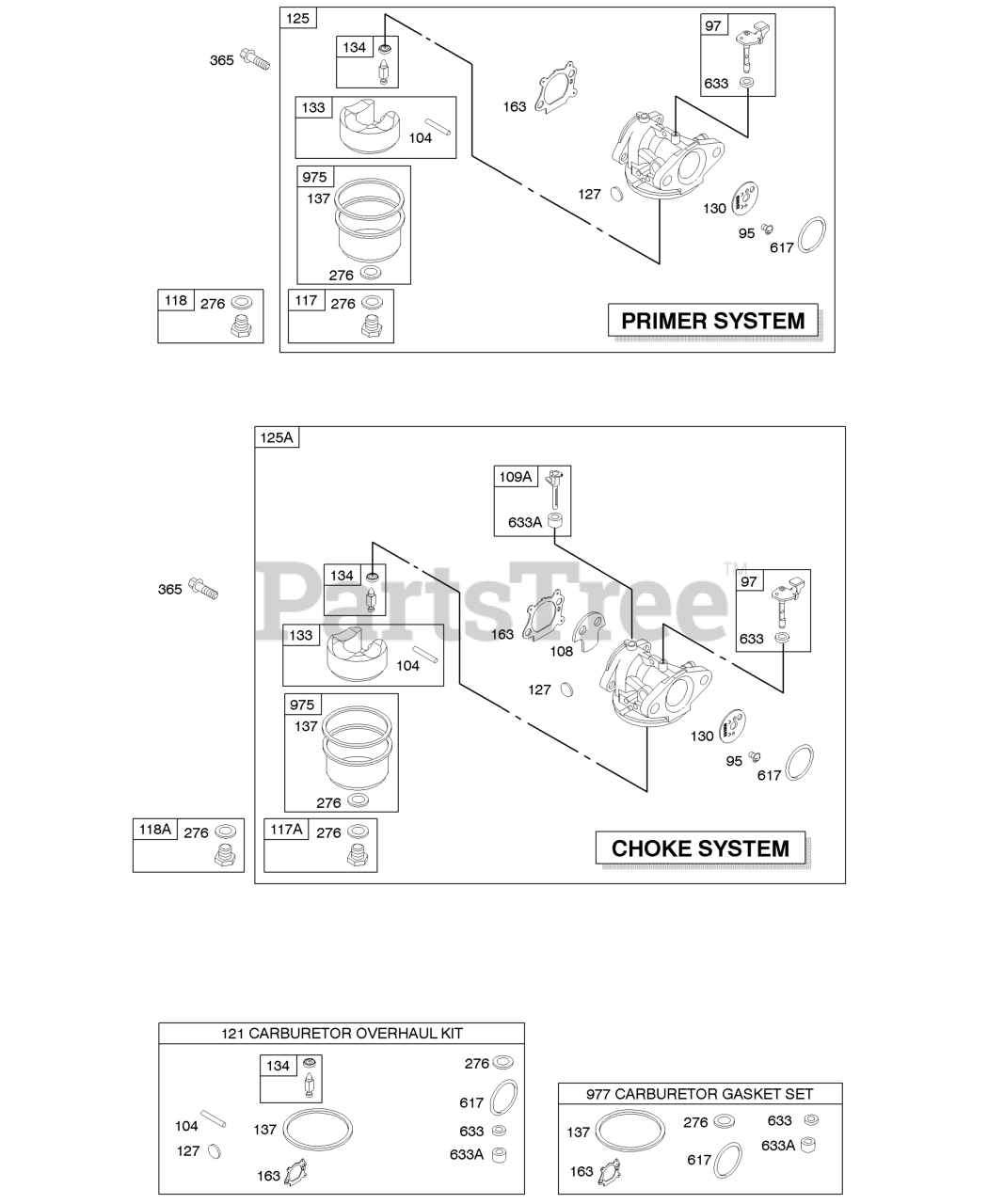

12X802-0015-E1 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

Carburetor Parts Diagram

  • Title
95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 493267

Shaft-Throttle

$16.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

$9.49

$

Usually ships in 2-12 days

0

109A

$15.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 494870

Jet-Main

Note: (Standard)

$

$

Not available

117A

Briggs & Stratton 498978

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 498977

Jet-Main

Note: (High Altitude)

$

$

Not available

118A

Briggs & Stratton 497315

Jet-Main

Note: (High Altitude)

$13.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 498260

Kit-Carb Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 694882

Carburetor
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

125A

$

$

Not available

127

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 8

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 16

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor)

$4.49

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

Note: (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 693867

Seal-Choke/Thr Shaft

Note: (Choke Shaft)

$4.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0
