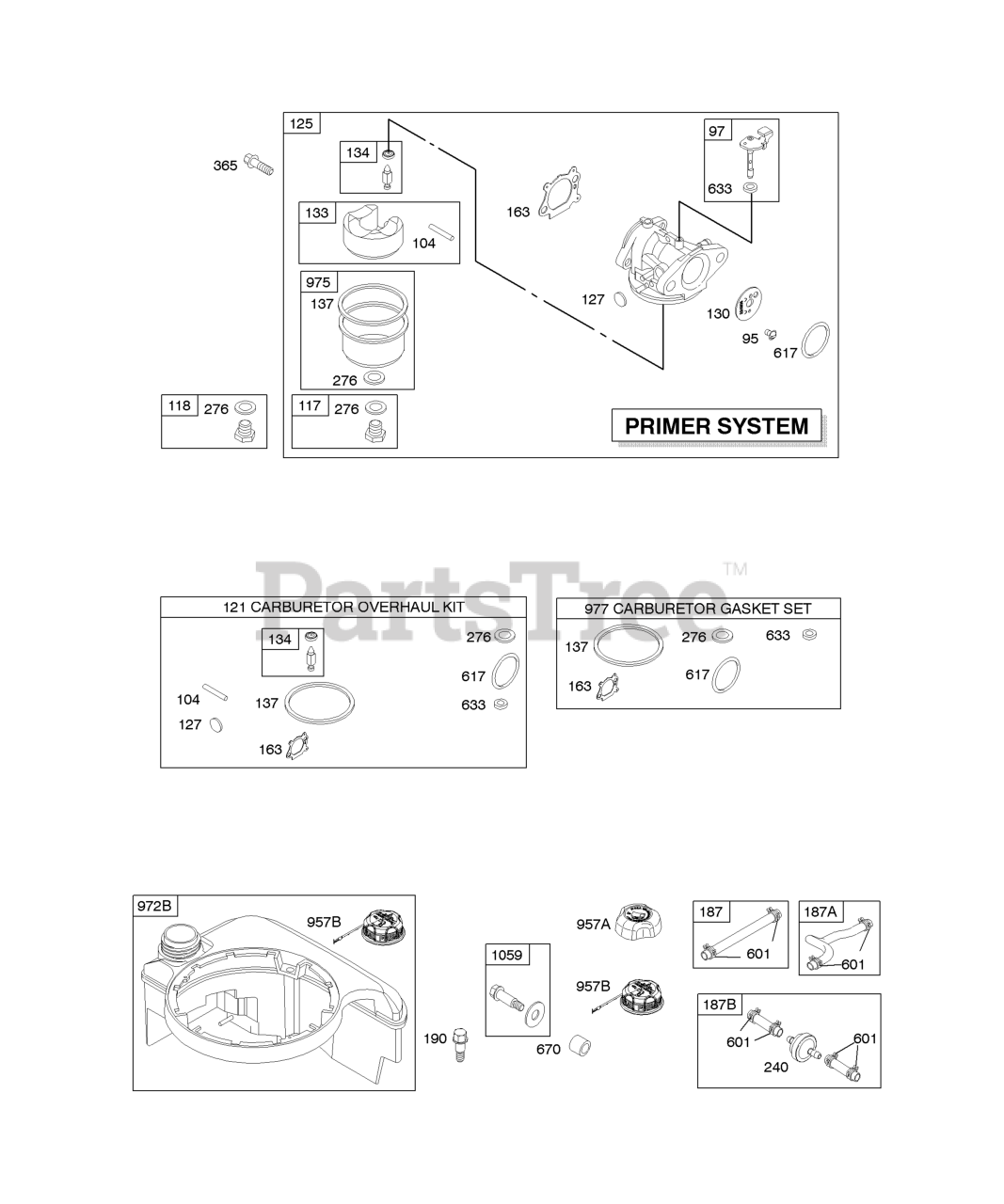

12W802-2374-A1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

Carburetor, Fuel Supply Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 4 left!

0

97

Briggs & Stratton 493267

Shaft-Throttle

$16.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 497466

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 496495

Jet-Main

Note: (High Altitude)

$

$

Not available

121

Briggs & Stratton 498260

Kit-Carb Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 498254

Carburetor
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 8

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791873

Line-Fuel

Note: (Molded)

$15.99

$

In Stock, Qty 7

0

187B

Briggs & Stratton 791891

Line-Fuel

Note: (Includes Filter)

$18.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, Qty 5

0

240

Briggs & Stratton 298090S

Filter-Fuel

$

$

Not available

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 16

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor)

$4.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 5

0

957A

Briggs & Stratton 692046

Cap-Fuel Tank

Note: (Plastic)

$5.49

$

In Stock, Qty 7

0

957B

Briggs & Stratton 699985

Cap-Fuel Tank
(Superseded to 796577)

Note: (Plastic)

$16.99

$

In Stock, only 1 left!

0

972B

Briggs & Stratton 699374

Tank-Fuel

Note: (Plastic) (Standard)

$64.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$7.49

$

In Stock, only 1 left!
