12V352-0135-F1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

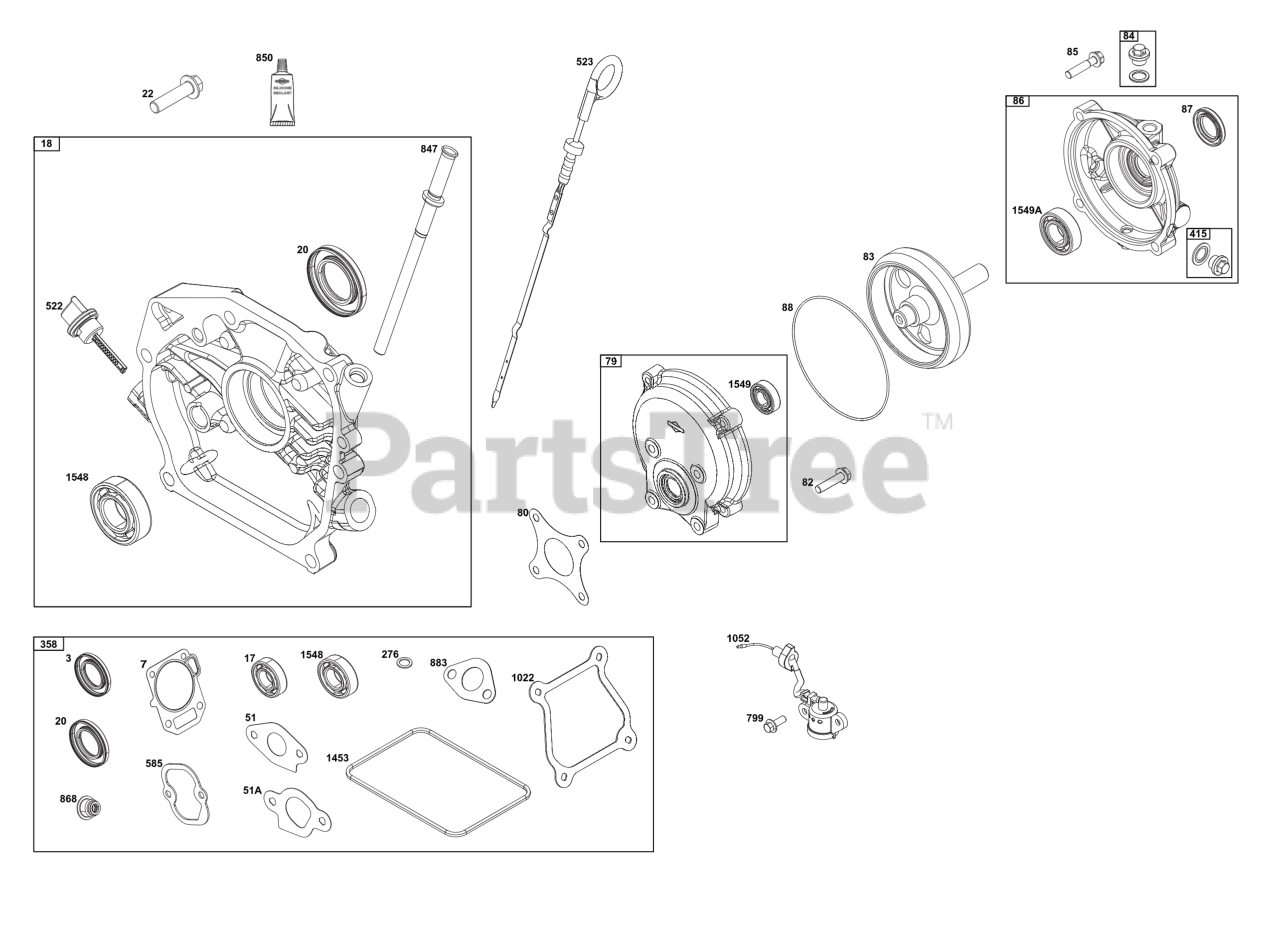

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 596986

COVER, Crankcase

$172.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 596991

SEAL, Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 590714

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

79

Briggs & Stratton 84002975

CASE, Gear Reduction

$51.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 792755

GASKET, Gear Case

$9.49

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 792753

SCREW

Note: (Gear Reduction Case)

$7.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 792756

SHAFT, Auxiliary Drive

$235.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 792759

PLUG, Breather

$9.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 594760

SCREW

Note: (Gear Cover)

$3.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 792748

COVER, Gear

$161.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 792752

SEAL, Gear Reduction

$36.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 792760

GASKET, Gear Cover/Housing

$11.99

$

Usually ships in 2-12 days

0

276

WASHER, Sealing

Note: (Part information located in Carburetor Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

415

Briggs & Stratton 596721

PLUG

$10.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 590716

PLUG, Dipstick/Fill

$8.99

$

In Stock, only 1 left!

0

522

Briggs & Stratton 590716

PLUG, Dipstick/Fill

$8.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 596992

DIPSTICK

$14.99

$

Usually ships in 2-12 days

0

585

GASKET, Breather Passage

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

847

Briggs & Stratton 596989

DIPSTICK/TUBE ASSEMBLY

$16.99

$

Usually ships in 2-12 days

0

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1453

SEAL, Air Cleaner Cover

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

1548

Briggs & Stratton 596990

BEARING, Ball

Note: (Crankcase Cover/Sump)

$22.99

$

Usually ships in 2-12 days

0

1549

Briggs & Stratton 99158

BEARING, Ball

Note: (Crankshaft)

$20.99

$

Usually ships in 2-12 days

0

1549A

Briggs & Stratton 792745

BEARING, Ball

Note: (Crankshaft)

$60.99

$

Usually ships in 2-12 days

0
