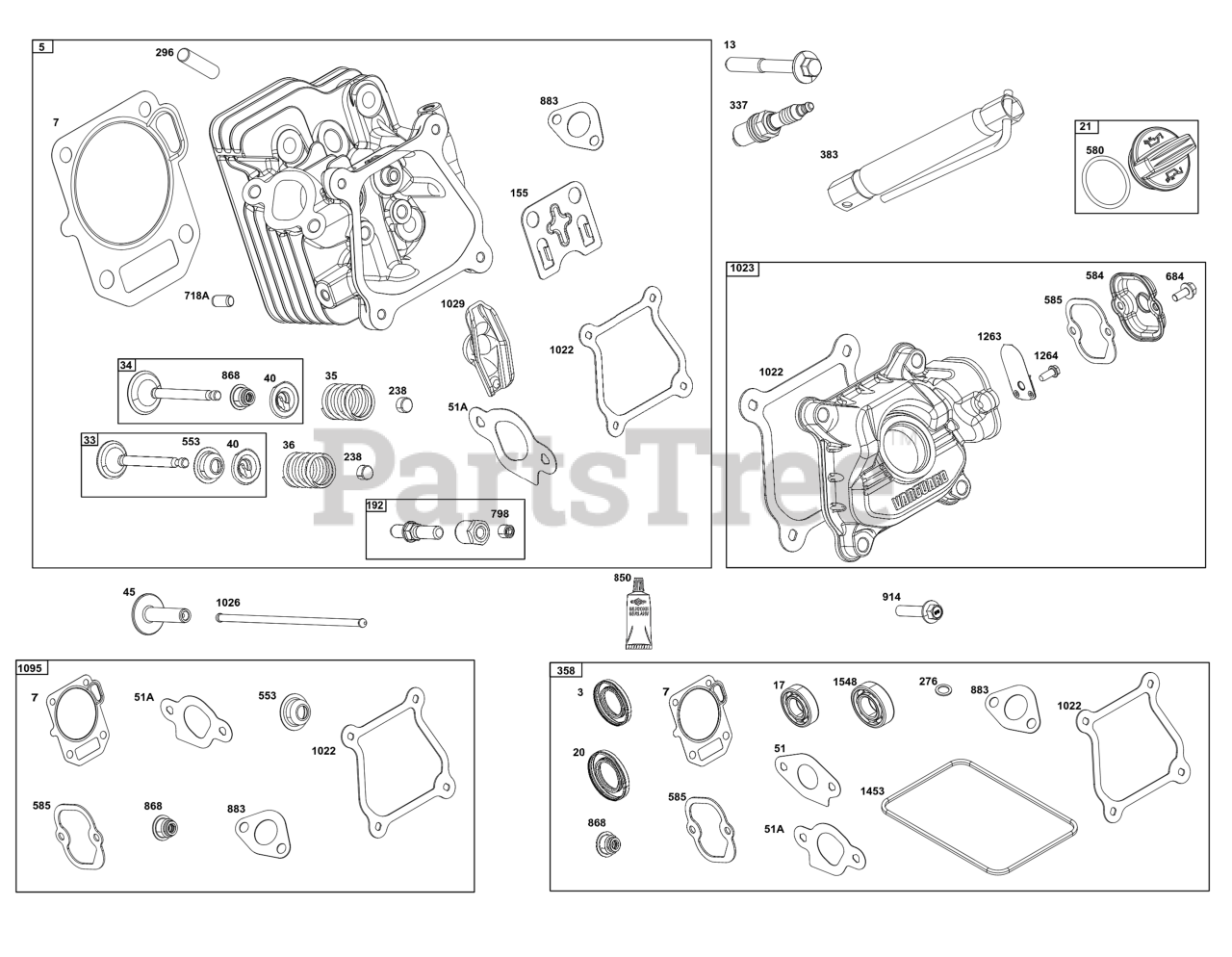

12V337-0024-F1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 596998

HEAD, Cylinder

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 597007

GASKET, Cylinder Head

$12.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 597008

SCREW

Note: (Cylinder Head)

$4.49

$

Usually ships in 2-12 days

0

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

21

Briggs & Stratton 597014

CAP, Oil Fill

$9.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 597005

VALVE, Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 597004

VALVE, Intake

$20.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 597002

SPRING, Valve

Note: (Intake)

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 597002

SPRING, Valve

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 590654

RETAINER, Valve

$6.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 591449

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 596769

GASKET, Intake

$

$

Not available

51A

Briggs & Stratton 596770

GASKET, Intake

$3.49

$

In Stock, only 1 left!

0

155

Briggs & Stratton 592874

PLATE, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 597006

ADJUSTER, Rocker Arm

$12.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 590649

CAP, Valve

$9.49

$

In Stock, only 1 left!

0

276

WASHER, Sealing

Note: (Part information located in Carburetor Group.)

$

$

Not available

296

Briggs & Stratton 590631

STUD

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 597383

PLUG, Spark

$9.49

$

In Stock, only 3 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

553

Briggs & Stratton 597003

RETAINER, Valve Spring

$3.99

$

Usually ships in 2-12 days

0

580

Briggs & Stratton 809894

SEAL, O-Ring

Note: (Oil Fill Cap)

$9.49

$

In Stock, only 1 left!

0

584

Briggs & Stratton 597011

COVER, Breather Passage

$7.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 597010

GASKET, Breather Passage

$8.49

$

Usually ships in 2-12 days

0

684

Briggs & Stratton 597012

SCREW

Note: (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 590637

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

798

Briggs & Stratton 597000

SCREW

Note: (Rocker Arm)

$3.49

$

Usually ships in 2-12 days

0

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

Briggs & Stratton 597001

SEAL, Valve

$9.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 597072

GASKET, Exhaust

$5.99

$

Usually ships in 2-12 days

0

914

Briggs & Stratton 597016

SCREW

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 597015

GASKET, Rocker Cover

$12.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 597009

COVER, Rocker

$33.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 597017

ROD, Push

$8.49

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 596999

ARM, Rocker

$6.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 597140

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$26.99

$

Usually ships in 2-12 days

0

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 793453

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1453

SEAL, Air Cleaner Cover

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

1548

BEARING, Ball

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available
