12V332-0146-01 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

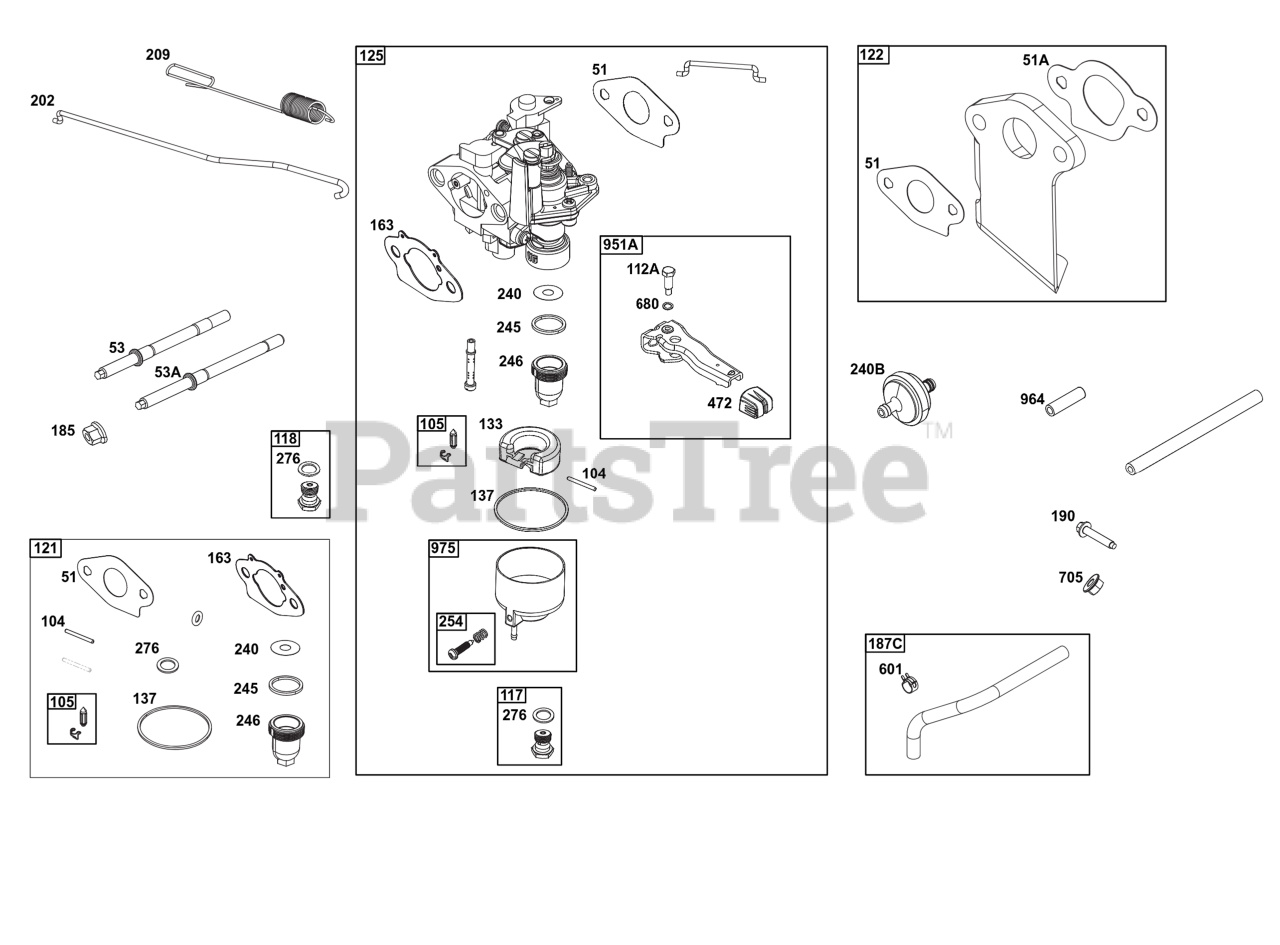

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 597052

STUD

Note: (Carburetor) (Short)

$5.99

$

Usually ships in 2-12 days

0

53A

Briggs & Stratton 597051

STUD

Note: (Carburetor) (Long)

$5.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 597533

PIN, Float Hinge

$3.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 797139

VALVE, Float Needle

$15.99

$

In Stock, only 4 left!

0

112A

Briggs & Stratton 84003640

SCREW

Note: (Choke Lever)

$4.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 84002966

JET, MAIN

$7.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 84006890

JET, Main

$8.49

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 597138

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$21.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 84003331

SPACER, Carburetor

$12.99

$

In Stock, only 4 left!

0

125

Briggs & Stratton 84006286

CARBURETOR

$90.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 597473

FLOAT, Carburetor

$14.99

$

In Stock, Qty 7

0

137

Briggs & Stratton 798932

GASKET, Float Bowl

$7.99

$

In Stock, Qty 9

0

163

Briggs & Stratton 596768

GASKET, Air Cleaner

$3.49

$

In Stock, Qty 12

0

185

NUT

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

187C

Briggs & Stratton 84006783

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 591476

SCREW

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

202

LINK, Mechanical Governor

Note: (Part information located in Controls Group.)

$

$

Not available

209

SPRING, Governor

$

$

Not available

240

Briggs & Stratton 597039

FILTER, Fuel

$6.99

$

In Stock, only 1 left!

0

240B

Briggs & Stratton 394358S

FILTER, Fuel

$5.99

$

In Stock, Qty 20+

0

245

Briggs & Stratton 597735

GASKET, Fuel Bowl

$4.99

$

Usually ships in 2-12 days

0

246

Briggs & Stratton 597043

BOWL, Fuel Filter

$5.49

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 595322

DRAIN, Carburetor Bowl

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797632

WASHER, Sealing

$7.99

$

In Stock, Qty 12

0

472

Briggs & Stratton 84002963

KNOB, Choke Shaft

$5.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

680

Briggs & Stratton 80078774

WASHER

Note: (Choke Lever)

$

$

Currently unavailable

705

Briggs & Stratton 707919

NUT

Note: (Fuel Tank)

$3.49

$

Usually ships in 2-12 days

0

951A

Briggs & Stratton 84003872

LEVER, Choke

$5.49

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

975

Briggs & Stratton 597049

BOWL, Float

$9.99

$

Usually ships in 2-12 days

0
