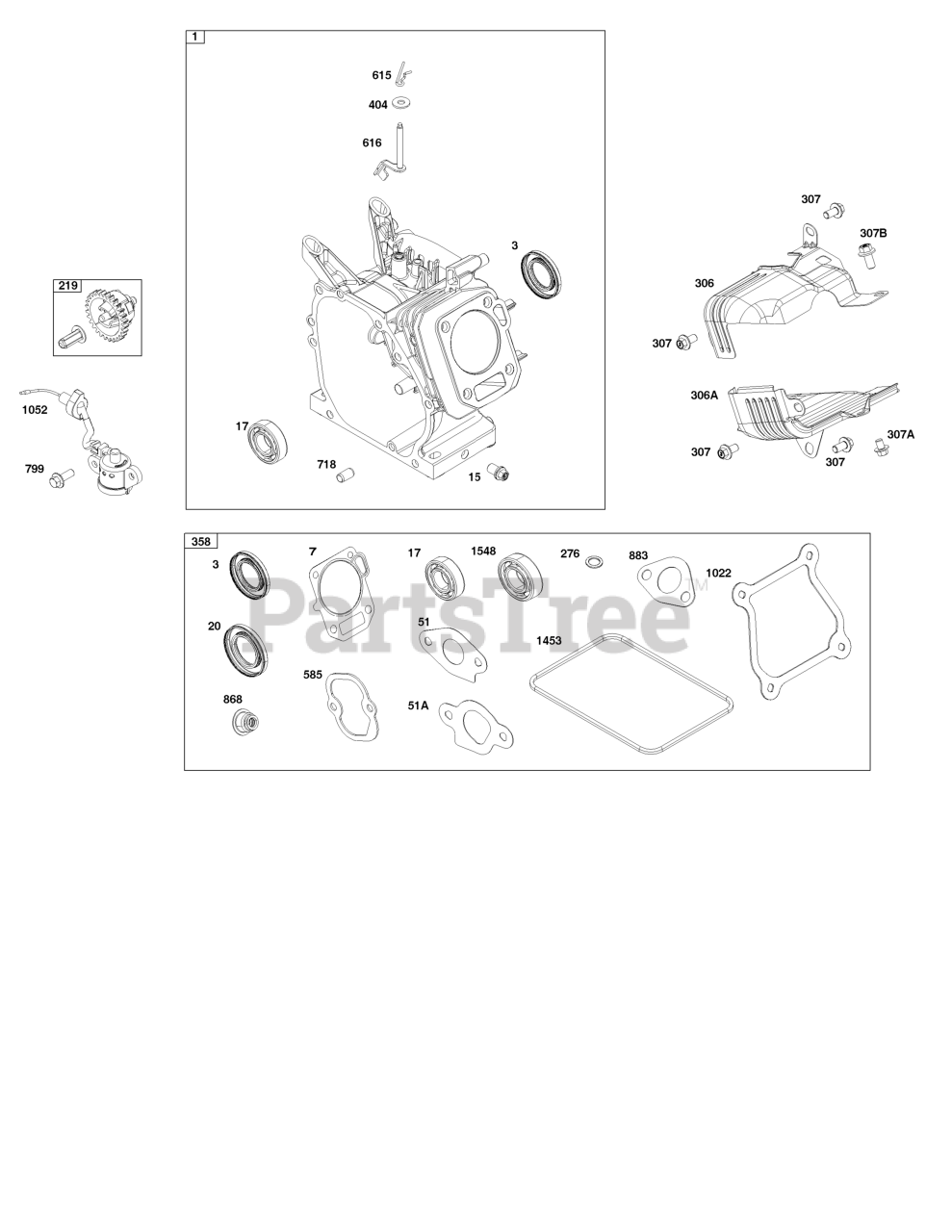

12V332-0004-F1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 596995

CYLINDER ASSEMBLY

$198.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 84002132

SEAL, Oil

Note: (Magneto Side)

$14.99

$

Usually ships in 2-12 days

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

15

Briggs & Stratton 590678

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 596990

BEARING, Ball

Note: (Cylinder) (Crankshaft)

$22.99

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Carburetor Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Carburetor Group.)

$

$

Not available

219

Briggs & Stratton 597038

GEAR, Governor

$22.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797632

WASHER, Sealing

$7.99

$

In Stock, Qty 12

0

306

Briggs & Stratton 597076

SHIELD, Cylinder

$17.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 597077

SHIELD, Cylinder

$17.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 590850

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 7

0

307A

Briggs & Stratton 590683

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 20+

0

307B

Briggs & Stratton 590850

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 7

0

358

Briggs & Stratton 597139

GASKET SET, Engine

$51.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 597030

WASHER

Note: (Governor Crank)

$3.99

$

Usually ships in 2-12 days

0

585

GASKET, Breather Passage

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

615

Briggs & Stratton 597031

RETAINER, Governor Shaft

$3.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 597029

CRANK, Governor

$12.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 590713

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

799

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

Briggs & Stratton 597001

SEAL, Valve

$9.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1052

SENSOR, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1453

SEAL, Air Cleaner Cover

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

1548

BEARING, Ball

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available
