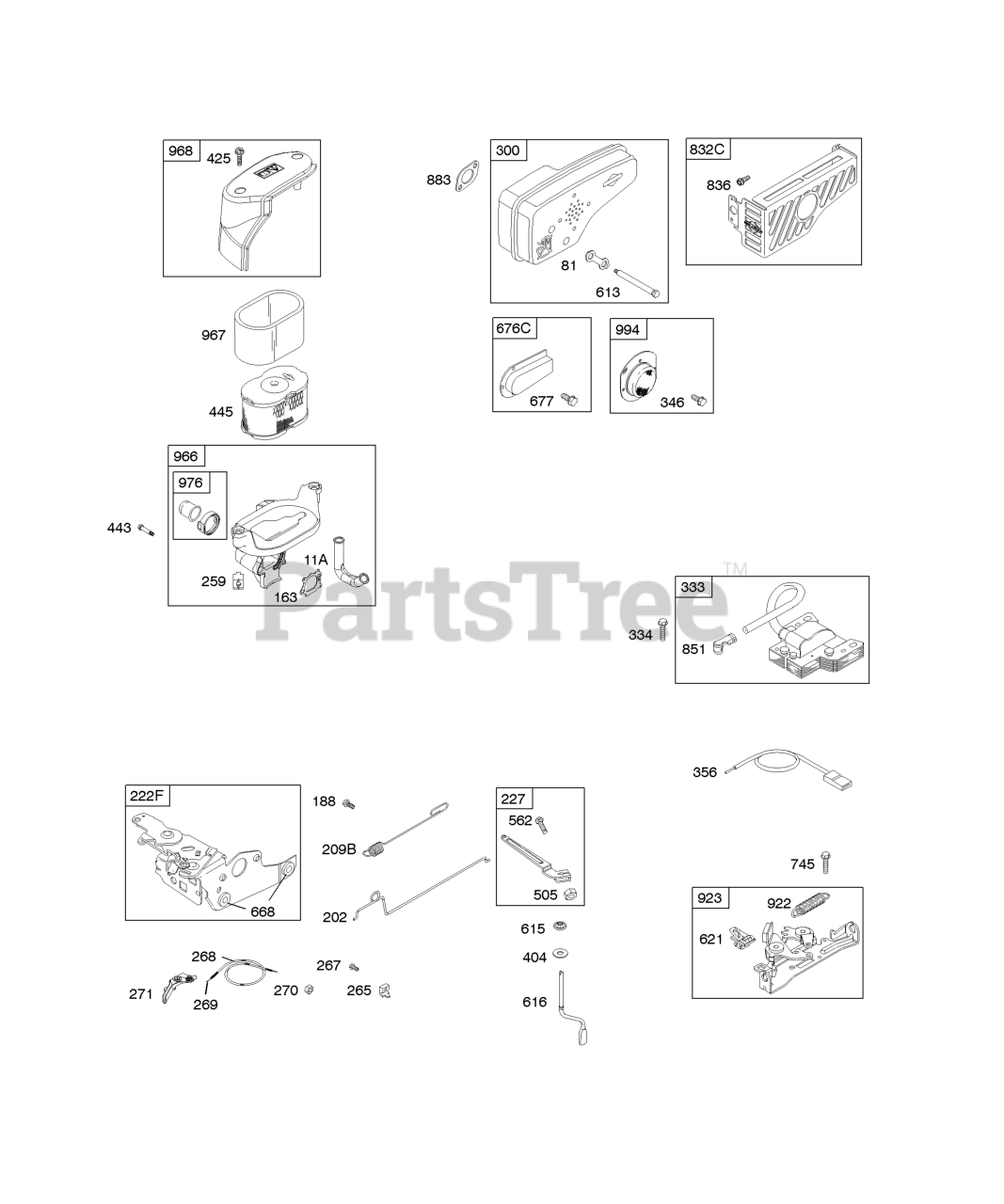

12U802-0639-01 - Briggs & Stratton Vertical Engine Air Cleaner, Brake, Controls, Electrical, Governor Spring, Ignition, Muffler Parts Diagram

Vertical Engine

Air Cleaner, Brake, Controls, Electrical, Governor Spring, Ignition, Muffler Parts Diagram

  • Title

11A

Briggs & Stratton 691934

Tube-Breather

$

$

Not available

81

Briggs & Stratton 691740

Lock-Muffler Screw

$5.49

$

In Stock, Qty 6

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, only 1 left!

0

202

Briggs & Stratton 691829

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209B

Briggs & Stratton 691852

Spring-Governor

$8.49

$

Usually ships in 2-12 days

0

222F

Briggs & Stratton 691436

Bracket-Control

Note: (Compliance)

$33.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 690783

Lever-Governor Control

$15.99

$

Usually ships in 2-12 days

0

259

Briggs & Stratton 691189

Bracket-Casing Clamp

$4.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 496106S

Muffler
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

425

Briggs & Stratton 691671

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, Qty 9

0

443

Briggs & Stratton 690349

Screw

Note: (Air Cleaner Primer Base)

$6.99

$

In Stock, only 2 left!

0

445

Briggs & Stratton 497725S

Filter-A/C Cartridge

$14.99

$

In Stock, Qty 6

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

613

Briggs & Stratton 691340

Screw

Note: (Muffler)

$4.99

$

In Stock, Qty 7

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer

$6.49

$

In Stock, only 1 left!

0

676C

Briggs & Stratton 493871

Deflector-Muffler

Note: (Side Out)(Extended)

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

745

Briggs & Stratton 691648

Screw

Note: (Brake)

$4.99

$

Usually ships in 2-12 days

0

832C

Briggs & Stratton 691442

Guard-Muffler

Note: (Yardman Guard)

$49.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 690664

Screw

Note: (Muffler Guard)

$5.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$8.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 691994

Brake
(Superseded to 796387)

$

$

Not available

966

Briggs & Stratton 691439

Base-A/C Primer

$33.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 273185S

Filter-Pre Cleaner

$4.99

$

In Stock, Qty 9

0

968

Briggs & Stratton 498997

Cover-Air Cleaner

$

$

Not available

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

994

Briggs & Stratton 398067

Arrestor-Spark

$64.99

$

Usually ships in 2-12 days

0
