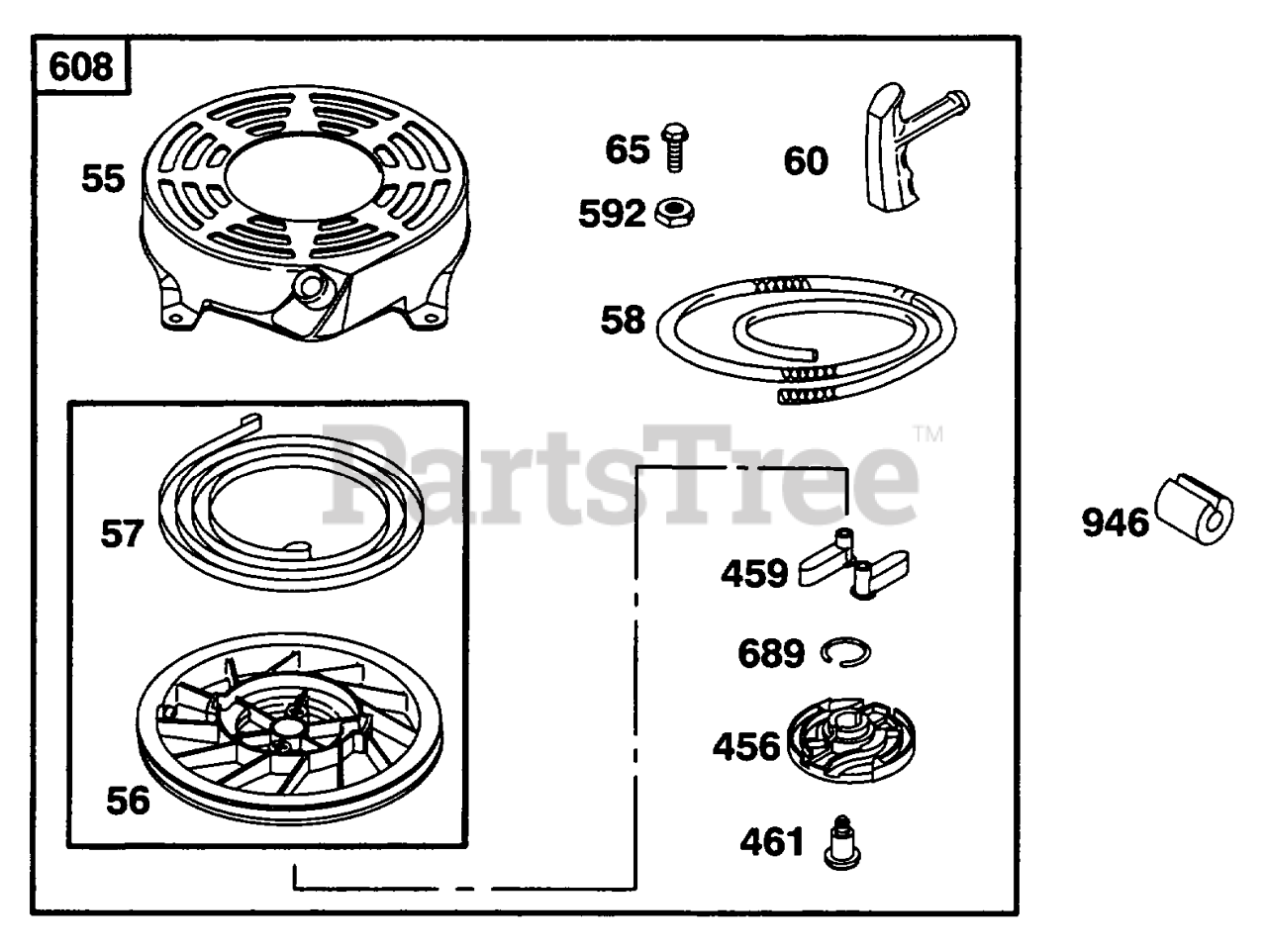

12T702-0651-01 - Briggs & Stratton Vertical Engine Rewind Assy Parts Diagram

Vertical Engine

Rewind Assy Parts Diagram

  • Title

55

Briggs & Stratton 691421

Housing-Rewind Starter

$64.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 491889

Spring-Rewind Starter

$15.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, Qty 20+

0

58

Briggs & Stratton 280399

Rope-Starter (Cut To Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 7

0

60

Briggs & Stratton 281434

Grip-Starter Rope
(Superseded to 281434S)

$3.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 690759

Screw (Rewind Starter)
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 3 left!

0

459

Briggs & Stratton 281505

Ratchet
(Superseded to 281505S)

$3.49

$

In Stock, Qty 9

0

461

Briggs & Stratton 691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

592

Briggs & Stratton 690800

Nut (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, Qty 20+

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

946

Briggs & Stratton 691738

Stop-Rope

$5.99

$

In Stock, only 4 left!

0
