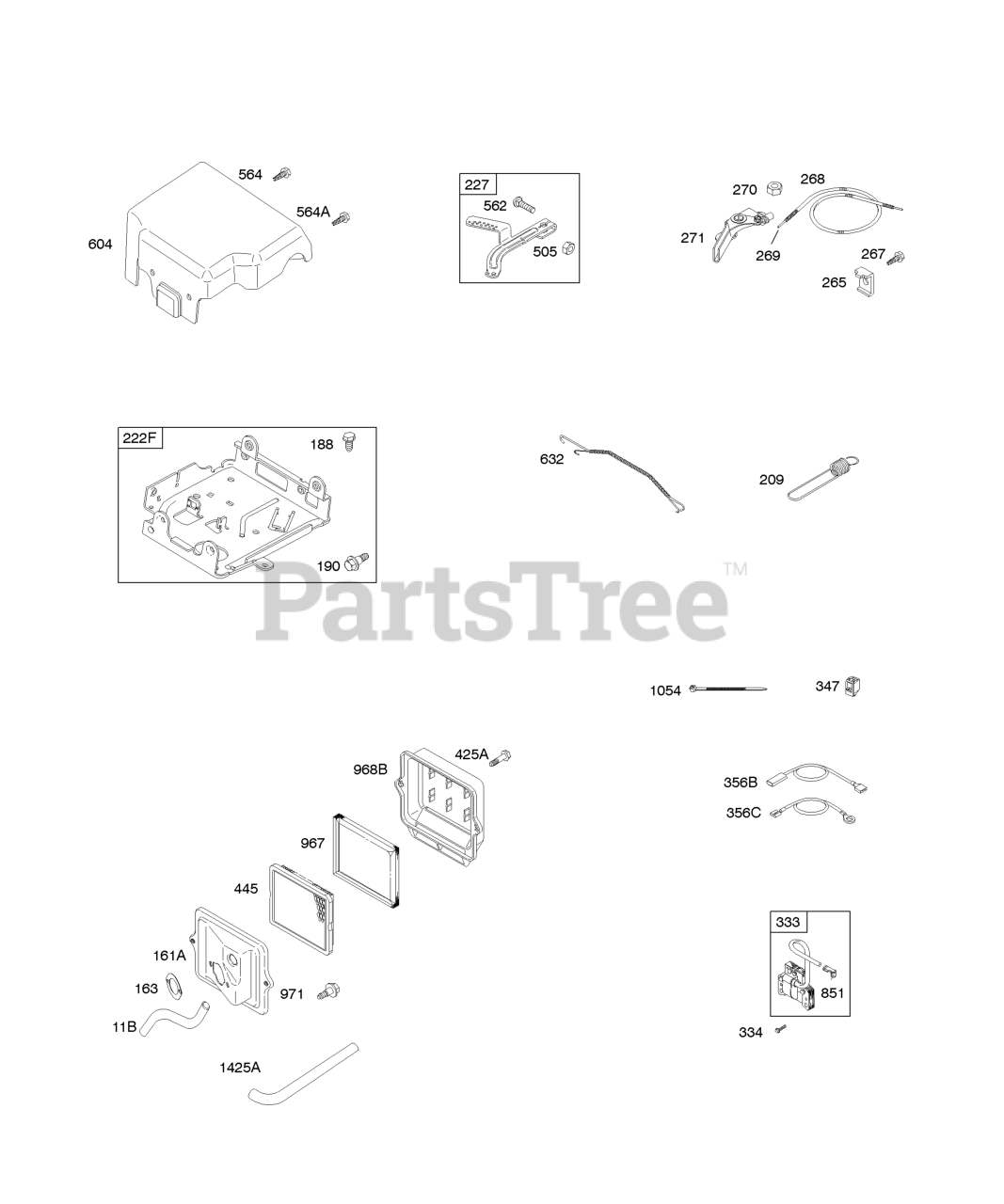

12T312-0110-G1 - Briggs & Stratton Horizontal Engine Air Cleaner, Controls, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Air Cleaner, Controls, Governor Spring, Ignition Parts Diagram

  • Title

11B

Briggs & Stratton 790632

Tube-Breather

Note: (Ultra Low Mount Air Cleaner)

$10.99

$

In Stock, only 1 left!

0

161A

Briggs & Stratton 795231

Base-Air Cleaner

Note: (Metal) (Ultra Low Mount Air Cleaner) Used After Code Date 07081200

$37.99

$

Usually ships in 2-12 days

0

161A

Briggs & Stratton 790631

Base-Air Cleaner

Note: (Metal) (Ultra Low Mount Air Cleaner) Used Before Code Date 07081300

$34.99

$

In Stock, only 4 left!

0

163

Briggs & Stratton 696024

Gasket-Air Cleaner

Note: (Flat Panel Air Cleaner)

$5.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 699479

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699220

Screw
(Superseded to 597133)

Note: (Fuel Tank)

$4.99

$

In Stock, Qty 7

0

209

Briggs & Stratton 693206

Spring-Governor

$7.49

$

In Stock, only 1 left!

0

222F

Briggs & Stratton 795668

Bracket-Control

Note: Used After Code Date 08051100

$45.99

$

Usually ships in 2-12 days

0

222F

Briggs & Stratton 793100

Bracket-Control

Note: Used Before Code Date 08051200

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, Qty 12

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, Qty 9

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 697854

SWITCH, Rocker

$13.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 692602

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

356C

Briggs & Stratton 695630

WIRE, Stop

$7.99

$

Usually ships in 2-12 days

0

425A

Briggs & Stratton 699492

SCREW

Note: (Air Cleaner Cover)

$3.99

$

In Stock, Qty 12

0

445

Briggs & Stratton 491588S

FILTER, A/C Cartridge

Note: (Flat Panel)

$6.49

$

In Stock, Qty 20+

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

564

Briggs & Stratton 699491

Screw

Note: (Control Cover)

$3.99

$

In Stock, only 2 left!

0

564A

Briggs & Stratton 699206

Screw

Note: (Control Cover)

$3.99

$

In Stock, only 3 left!

0

604

Briggs & Stratton 697326

Cover-Control

$30.99

$

In Stock, only 1 left!

0

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 3 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

967

Briggs & Stratton 493537S

Filter-Pre Cleaner

Note: (Flat Panel)

$6.49

$

In Stock, Qty 20+

0

968B

Briggs & Stratton 791082

COVER, Air Cleaner

Note: (Ultra Low Mount Air Cleaner)

$20.99

$

In Stock, Qty 13

0

971

Briggs & Stratton 690370

Screw

Note: (Air Cleaner Base to Carburetor) (SAE)

$3.99

$

In Stock, Qty 20+

0

971

Briggs & Stratton 798649

Screw

Note: (Air Cleaner Base to Carburetor) (Metric)

$3.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1425A

Briggs & Stratton 795227

Hose-Purge Line
(Superseded to 795741)

$12.99

$

Usually ships in 2-12 days

0
