12T292-0570-F8 - Briggs & Stratton Horizontal Engine Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group Parts Diagram

Horizontal Engine

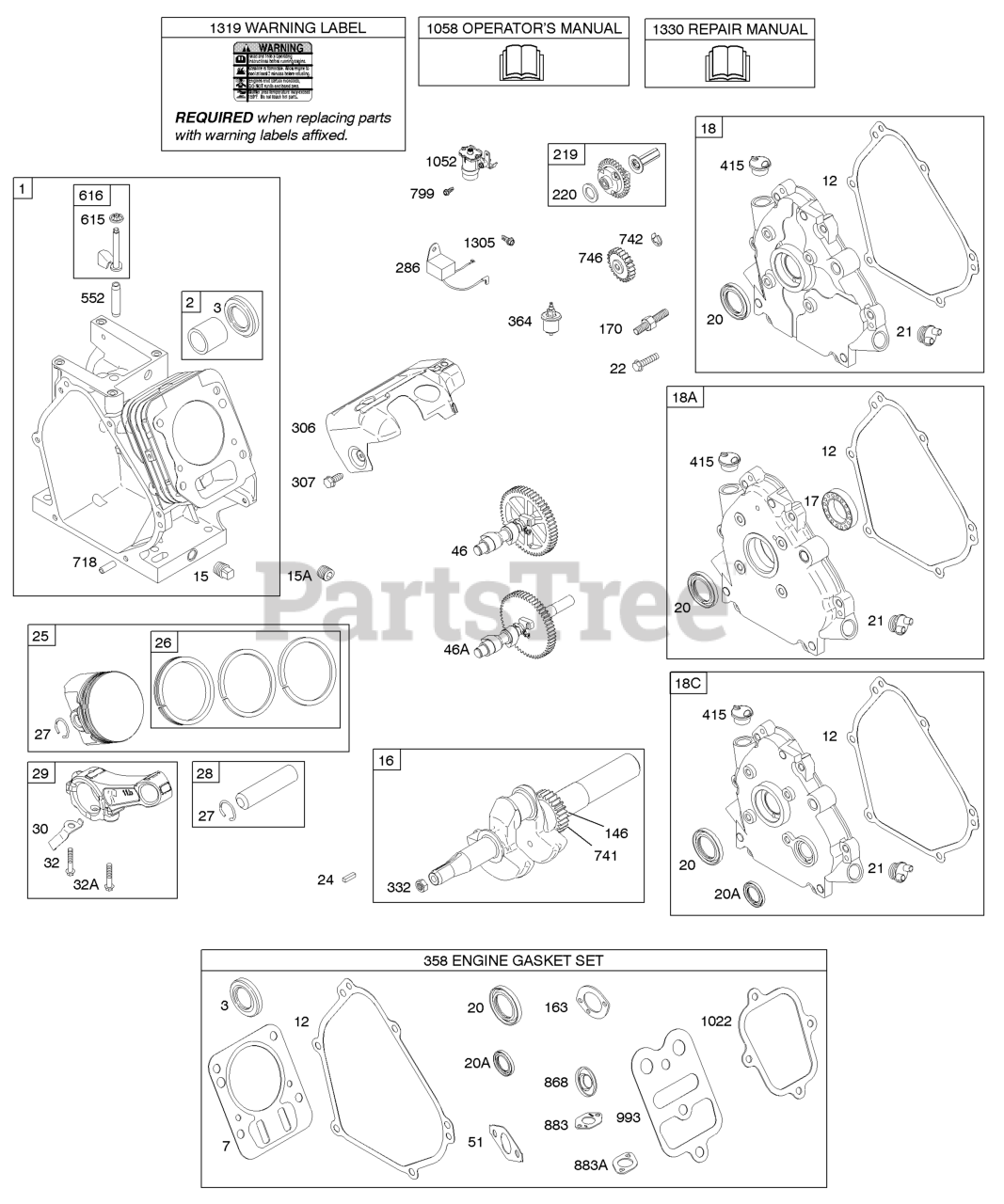

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group Parts Diagram

  • Title

1

Briggs & Stratton 699510

Cylinder Assembly

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 16

0

7

Briggs & Stratton 698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 17

0

12

Briggs & Stratton 699485

Gasket-Crankcase

$8.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 699445

Crankshaft
(Superseded to 797070)

$192.99

$

Usually ships in 2-12 days

0

18C

Briggs & Stratton 699677

Cover-Crankcase

$145.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 694171

Seal-Oil

Note: (PTO Side)

$27.99

$

Usually ships in 2-12 days

0

20A

Briggs & Stratton 691952

Seal-Oil

Note: (PTO Side)

$9.99

$

In Stock, Qty 10

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 699478

Screw
(Superseded to 594761)

Note: (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 791968

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 791326

Piston Assembly
(Superseded to 799064)

Note: (.020 Oversize)

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791969

Ring Set

Note: (Standard)

$38.99

$

In Stock, Qty 12

0

26

Briggs & Stratton 791324

Ring Set

Note: (.020 Oversize)

$47.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 690124

Rod-Connecting
(Superseded to 798813)

$43.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 791584

Dipper-Connecting Rod

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 1 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 693404

Camshaft

$73.99

$

In Stock, Qty 5

0

46A

Briggs & Stratton 694831

Camshaft

$74.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 9

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

163

Briggs & Stratton 696024

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 20+

0

170

Briggs & Stratton 699818

Stud

Note: (Crankcase Cover/Sump)

$8.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

286

Briggs & Stratton 794185

Module-Oil Sensor

$61.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 693610

Shield-Cylinder
(Superseded to 795334)

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 699483

Screw
(Superseded to 794822)

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 792723

Nut
(Superseded to 591988)

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 791797

Gasket Set-Engine

$67.99

$

In Stock, only 1 left!

0

364

Briggs & Stratton 695693

Terminal-Oil Plug

$13.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 693463

Plug

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 692346

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 790278

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 699202

Screw

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, only 4 left!

0

1052

Briggs & Stratton 790141

Sensor-Oil

$61.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 277040

Operator's Manual

$

$

Not available

1305

Briggs & Stratton 699691

SCREW

Note: (Oil Sensor Module)

$3.99

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!

0
