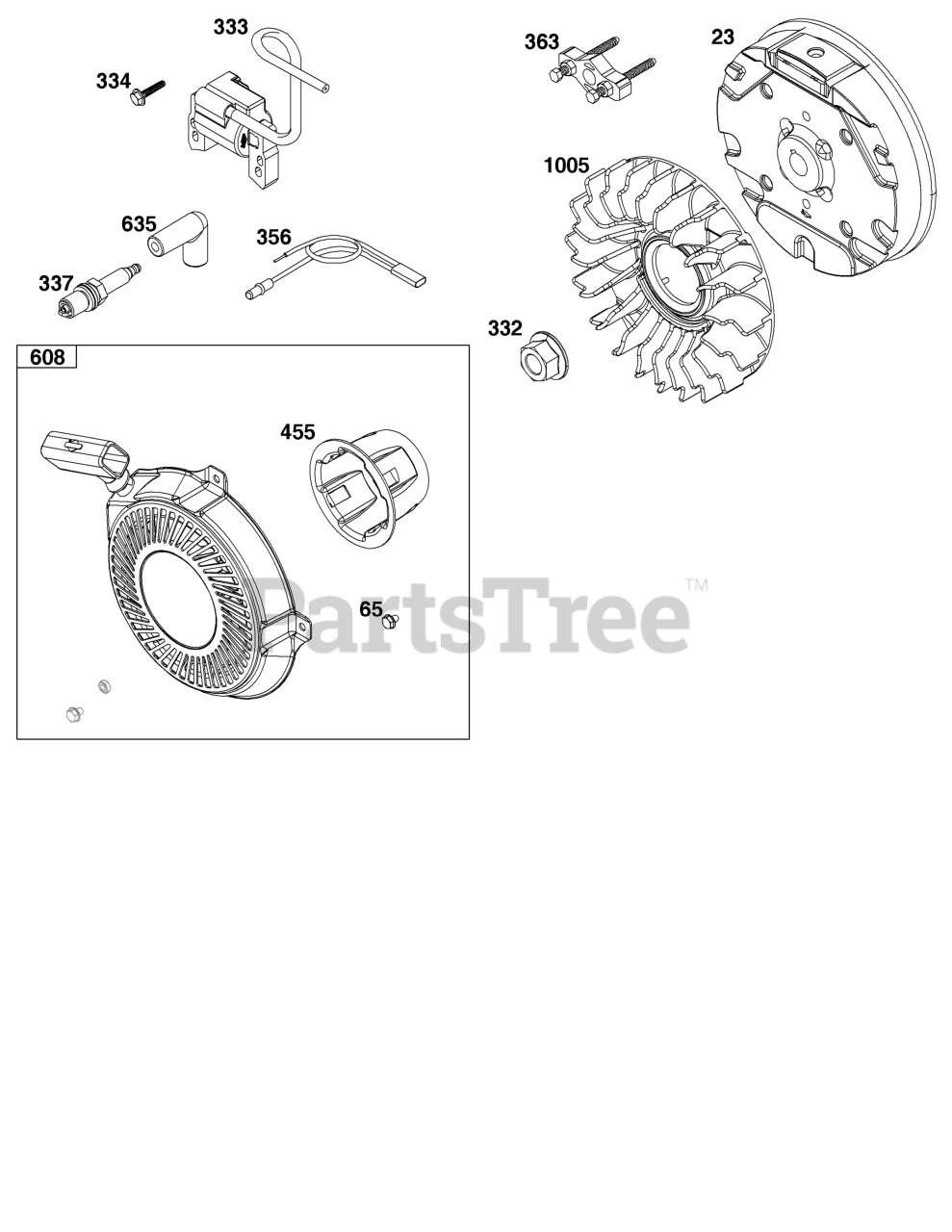

12T102-0061-F8 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title
23

Briggs & Stratton 699488

FLYWHEEL

Note: serviced by 699487 per TC-OMF (charged version)

$185.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 699228

SCREW

Note: (Rewind Starter)

$3.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 591988

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 796964

ARMATURE, Magneto

$55.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

337

PLUG, Spark

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

356

$

$

Not available

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 591302

CUP, Flywheel

$11.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 591301

STARTER, Rewind

Note: includes 810136 (4), 813451 and 497940 (pre-pack assy)

$56.99

$

In Stock, Qty 5

0

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1005

Briggs & Stratton 794273

FAN, Flywheel

$16.99

$

In Stock, Qty 8

0
