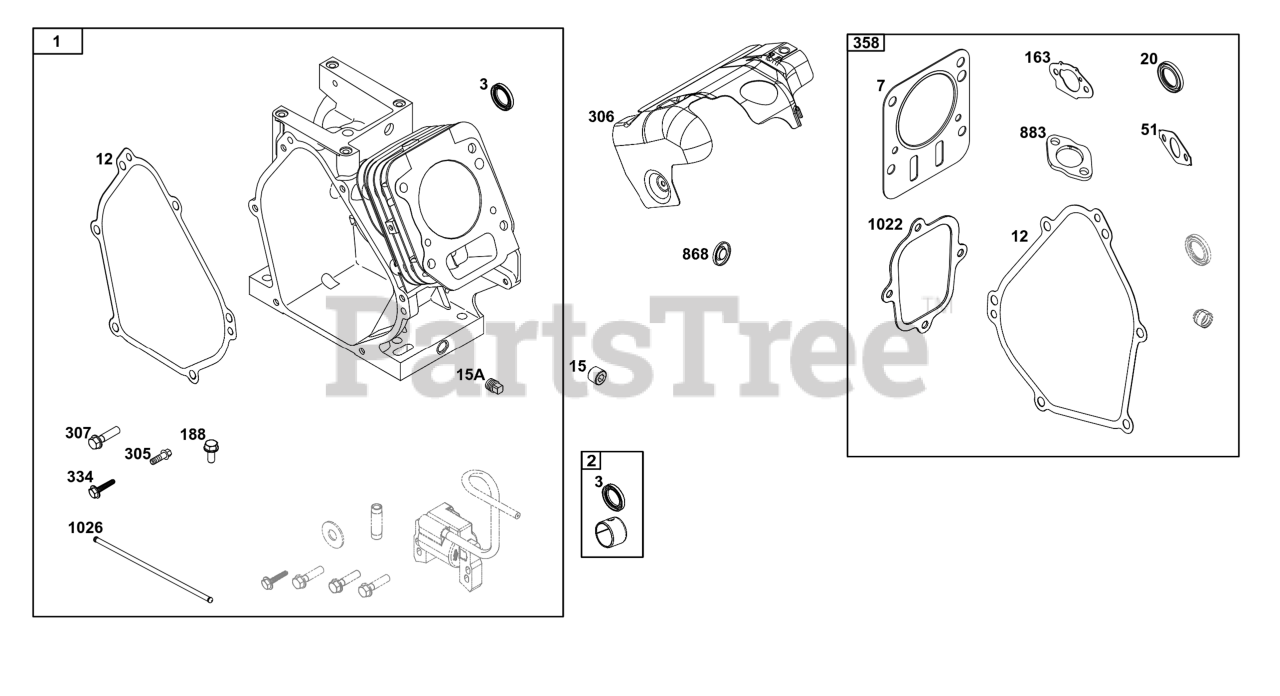

12T102-0061-F8 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 699510

CYLINDER ASSEMBLY

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 796961

KIT, Bushing/Seal

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 13

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 691682

PLUG, Oil Drain

$5.49

$

Usually ships in 2-12 days

0

15A

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 1 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

188

SCREW

Note: (Control Bracket)

$

$

Not available

305

SCREW

Note: (Part information located in Blower Housing Group.)

$

$

Not available

306

Briggs & Stratton 594516

SHIELD, Cylinder

$20.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 794822

SCREW

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

334

SCREW

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

358

Briggs & Stratton 84003785

GASKET SET, ENGINE

Note: (Service Kits can include parts not for this engine.)

$54.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1026

ROD, Push

Note: (Part information located in Cylinder Head Group.)

$

$

Not available
