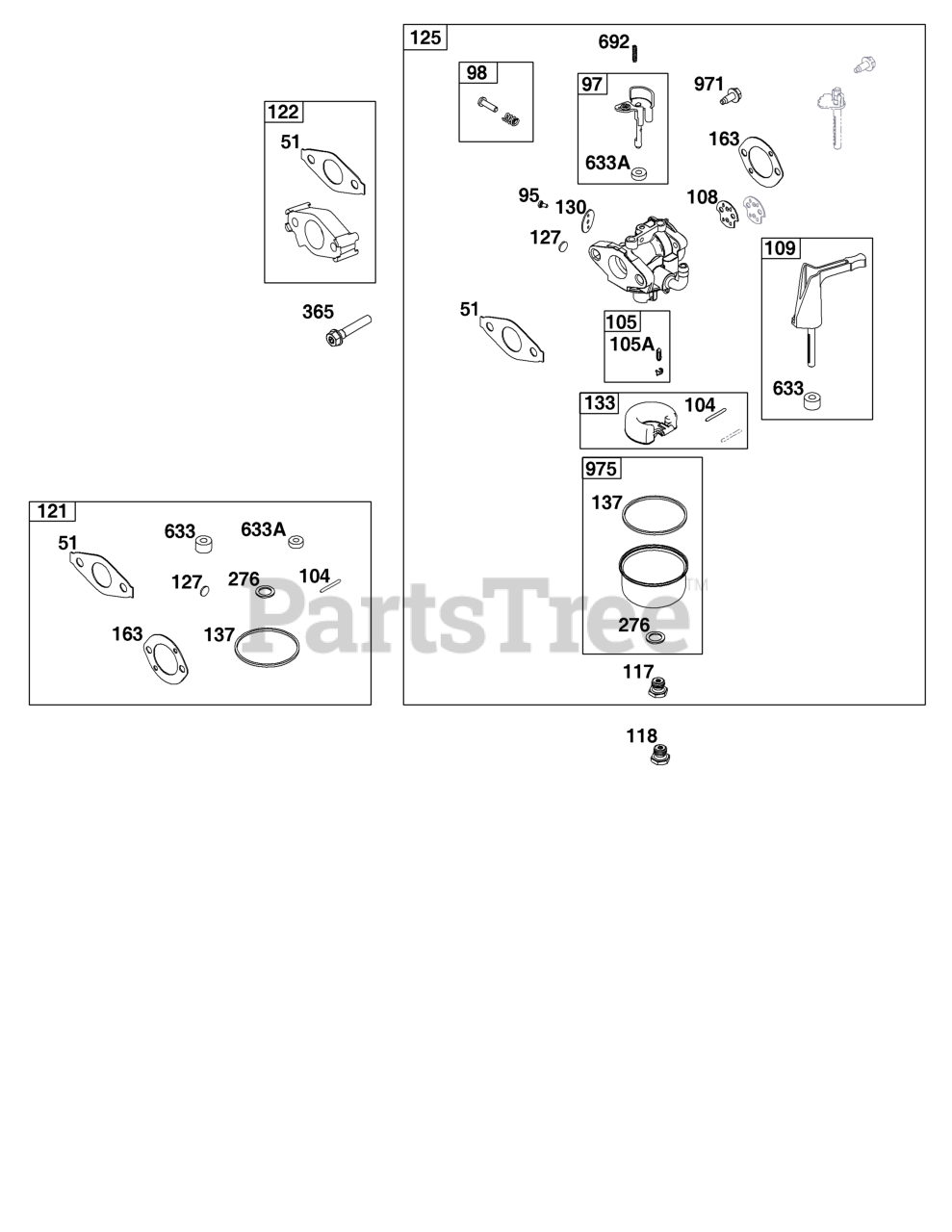

12T102-0061-F8 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title
51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 691636

SCREW

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 797628

SHAFT, Throttle

$28.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

KIT, Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

PIN, Float Hinge

$3.99

$

In Stock, Qty 10

0

105

Briggs & Stratton 797139

VALVE, Float Needle

$15.99

$

In Stock, Qty 5

0

105A

Briggs & Stratton 595324

VALVE, Float Needle

$18.99

$

Usually ships in 2-12 days

0

108

$9.49

$

Usually ships in 2-12 days

0

109

$28.99

$

In Stock, Qty 9

0

117

Briggs & Stratton 797575

JET, Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 798661

JET, Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 84003757

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$53.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 795208

SPACER, Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

$66.99

$

In Stock, Qty 20+

0

127

$4.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 797630

VALVE, Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 797136

FLOAT, Carburetor

$14.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 797625

GASKET, Float Bowl

$7.99

$

In Stock, Qty 9

0

163

Briggs & Stratton 696024

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 797632

WASHER, Sealing

$7.99

$

In Stock, Qty 13

0

365

Briggs & Stratton 699484

SCREW

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

SEAL, Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

In Stock, only 1 left!

0

692

Briggs & Stratton 797624

SPRING, Detent

$5.49

$

Usually ships in 2-12 days

0

971

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

975

$43.99

$

In Stock, only 2 left!

0
