12S807-1121-01 - Briggs & Stratton Vertical Engine Fuel Tank Grp Parts Diagram

Vertical Engine

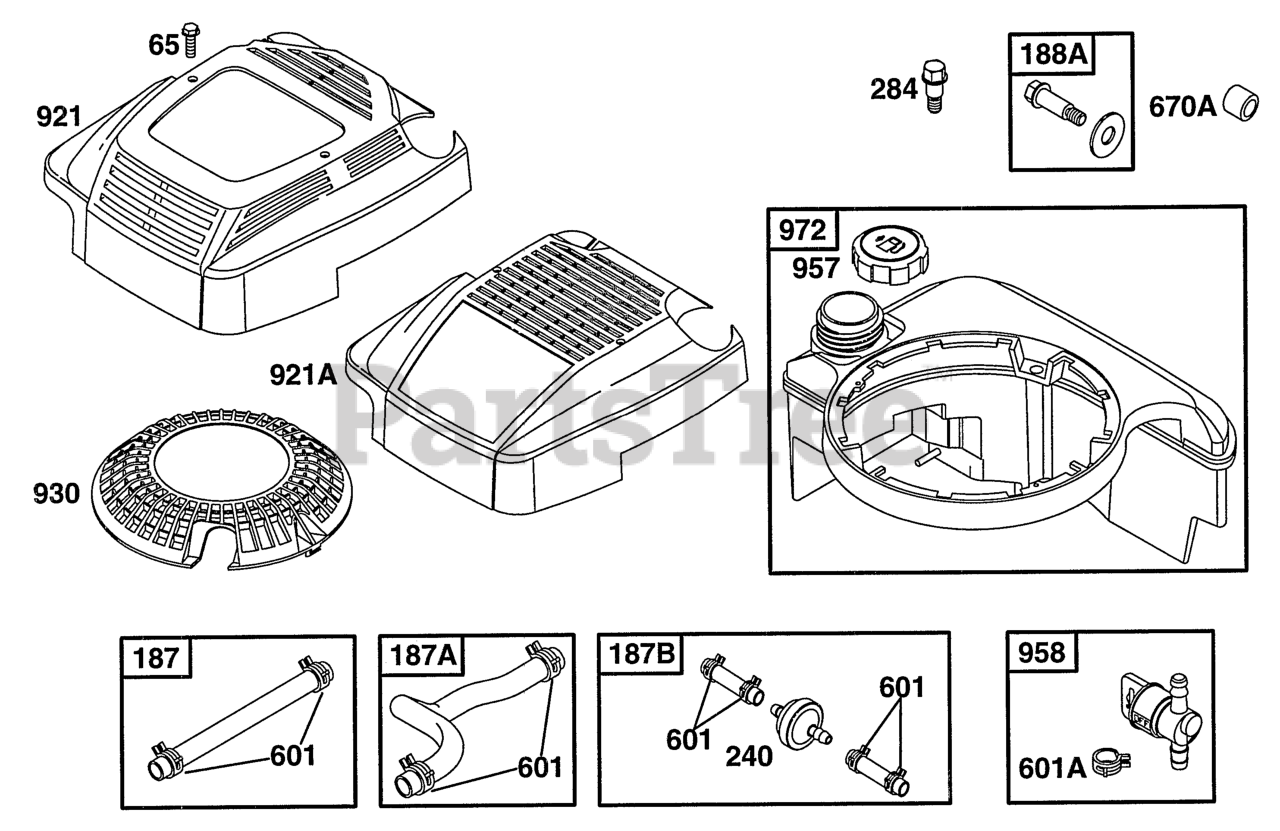

Fuel Tank Grp Parts Diagram

  • Title

65

Briggs & Stratton 94686

Screw, Machine Hex
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

65

Briggs & Stratton 94696

Screw, Pan Head Tor
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

187A

Briggs & Stratton 492791

Hose, Fuel Assy
(Superseded to 791873)

$15.99

$

In Stock, Qty 7

0

187B

Briggs & Stratton 498171

Line-Fuel
(Superseded to 791891)

$18.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 492790

Hose, Fuel Assy (6-3/4")
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 398540

Screw/Washer Kit
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

284

Briggs & Stratton 94511

Screw, Machine Hex
(Superseded to 690940)

$3.99

$

In Stock, only 2 left!

0

601A

Briggs & Stratton 93807

Clamp, Hose (Black)
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 280512

Spacer, Tank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

921A

Briggs & Stratton 281440

Cover, Static-Guard (Black)
(Superseded to 692931)

$69.99

$

Usually ships in 2-12 days

0

921

Briggs & Stratton 497233

Guard-Rewind

$60.99

$

In Stock, only 1 left!

0

930

Briggs & Stratton 281136

Screen, Static (Snap In Style For 1-1/2 Quart Tank)
(Superseded to 691919)

$28.99

$

Usually ships in 2-12 days

0

930

Briggs & Stratton 281187

Ring, Trim Black P-P (Snap-in-style For 1 Quart Tanks)
(Superseded to 690598)

$24.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap, Tank Assy (Plastic)
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

958

Briggs & Stratton 494768

Vlv-Shut Off Plas (Upper)
(Superseded to 698183)

$8.49

$

In Stock, Qty 20+

0

972

Briggs & Stratton 495224

Tank-Fuel (Black, 1.6 Quart)
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0
