12S402-2140-F8 - Briggs & Stratton Horizontal Engine Camshaft, Crankshaft, Cylinder, Piston Group Parts Diagram

Horizontal Engine

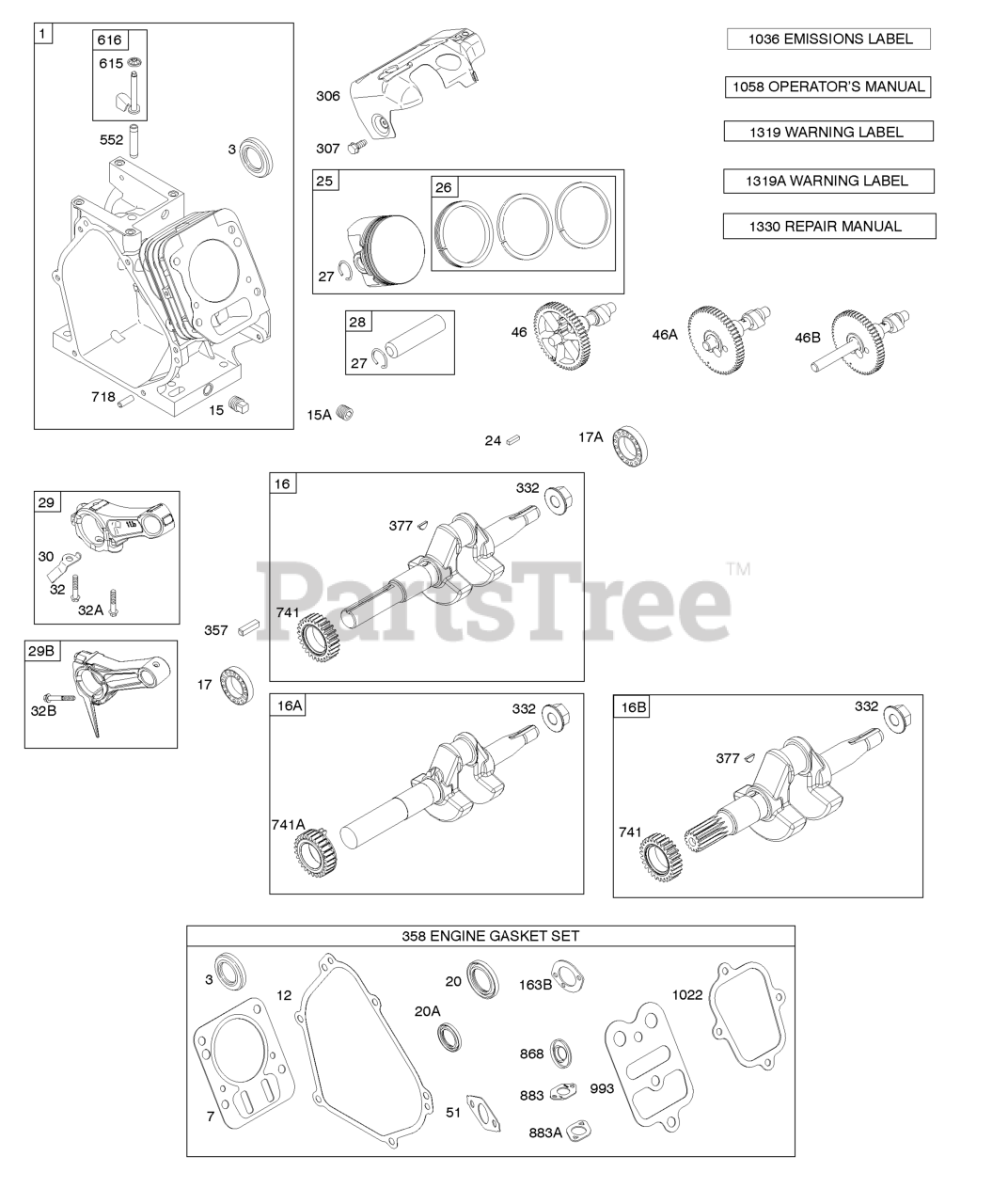

Camshaft, Crankshaft, Cylinder, Piston Group Parts Diagram

  • Title

1

Briggs & Stratton 699505

Cylinder Assembly

$255.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 17

0

12

Briggs & Stratton 699485

Gasket-Crankcase

$8.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

Note: (Square Head)

$5.49

$

In Stock, only 2 left!

0

15A

Briggs & Stratton 691682

Plug-Oil Drain

Note: (Flush)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 797076

Crankshaft

Note: (Use Reference 741 Timing Gear) Used Before Code Date 13050600

$192.99

$

Usually ships in 2-12 days

0

16A

Briggs & Stratton 594991

Crankshaft
(Superseded to 797076)

Note: (Use Reference 741A Timing Gear) Used After Code Date 13050500

$192.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 798538

Bearing-Ball

Note: (PTO Side)

$31.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 690824

Bearing-Ball

$28.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

20A

Briggs & Stratton 691952

Seal-Oil

Note: (PTO Side)

$9.99

$

In Stock, Qty 11

0

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 799064

Piston Assembly

Note: (.020" Oversize)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 795429

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, Qty 5

0

26

Briggs & Stratton 791324

Ring Set

Note: (.020" Oversize)

$47.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 791969

Ring Set

Note: (Standard)

$38.99

$

In Stock, Qty 12

0

27

Briggs & Stratton 691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 792247

Rod-Connecting

Note: (.020" Undersize)

$39.99

$

Usually ships in 2-12 days

0

29B

Briggs & Stratton 798813

Rod-Connecting

$43.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 791584

Dipper-Connecting Rod

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

32B

Briggs & Stratton 797437

Screw

Note: (Connecting Rod)

$4.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 693404

Camshaft

$73.99

$

In Stock, Qty 5

0

46A

Briggs & Stratton 696813

Camshaft
(Superseded to 555790)

$69.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 17

0

163B

Briggs & Stratton 696024

Gasket-Air Cleaner

$5.99

$

In Stock, Qty 20+

0

306

Briggs & Stratton 795334

Shield-Cylinder

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 794822

SCREW

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 694504

Motor-Starter

$375.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 591988

Nut

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

357

Briggs & Stratton 692191

Key-Drive Pulley

$

$

Not available

358

Briggs & Stratton 791797

Gasket Set-Engine

$67.99

$

In Stock, only 2 left!

0

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

552

Briggs & Stratton 692346

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741A

Briggs & Stratton 593499

Gear-Timing

Note: (Nylon Gear, See Reference 16A Crankshafts)

$

$

Not available

868

Briggs & Stratton 795440

Seal-Valve

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 692237

Gasket-Exhaust

Note: (Head To Adapter)

$5.49

$

In Stock, only 3 left!

0

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 5

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 277040

Operator's Manual

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!
