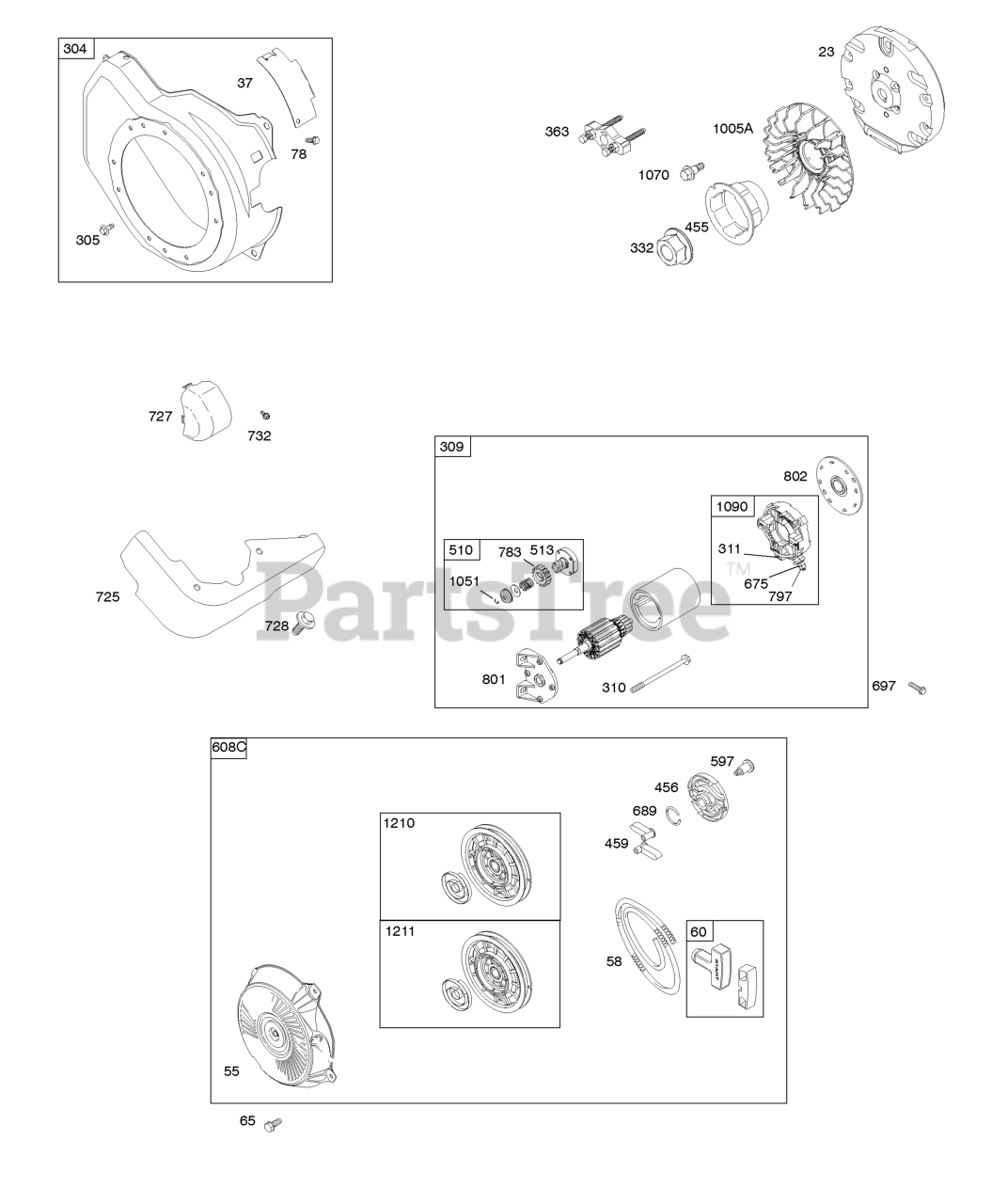

12S402-2140-F8 - Briggs & Stratton Horizontal Engine Blower Housing, Electric Starter, Flywheel, Rewind Starter Parts Diagram

Horizontal Engine

Blower Housing, Electric Starter, Flywheel, Rewind Starter Parts Diagram

  • Title

23

Briggs & Stratton 699488

FLYWHEEL

$185.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 699661

GUARD, Flywheel

$8.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 791848

HOUSING, Rewind Starter

Note: Used Before Code Date 12010100

$45.99

$

In Stock, only 1 left!

0

55

Housing-Rewind Starter

Note: (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

58

Briggs & Stratton 693389

ROPE, Starter

Note: (Cut To Required Length) Used After Code Date 08030200

$9.49

$

In Stock, only 2 left!

0

58

Briggs & Stratton 66574

ROPE, Starter

Note: (Cut To Required Length) Used Before Code Date 08030300

$7.49

$

In Stock, Qty 9

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 12

0

65

Briggs & Stratton 699228

SCREW

Note: (Rewind Starter) (Metric)

$3.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 699205

SCREW

Note: (Flywheel Guard)

$3.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 699598

HOUSING, Blower

$90.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 699481

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

309

Briggs & Stratton 694504

MOTOR, Starter

$375.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

SET, Brush

$27.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 591988

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 591302

CUP, Flywheel

$11.99

$

Usually ships in 2-12 days

0

456

Plate-Pawl Friction

Note: (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

456

Briggs & Stratton 692299

PLATE, Pawl Friction

Note: Used Before Code Date 12010100

$4.99

$

In Stock, only 2 left!

0

459

Pawl-Ratchet

Note: (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

459

Briggs & Stratton 281505S

PAWL, Ratchet

Note: Used Before Code Date 12010100

$3.49

$

In Stock, Qty 20+

0

510

Briggs & Stratton 499308

DRIVE, Starter

$80.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

597

Screw

Note: (Pawl Friction Plate) (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

597

Briggs & Stratton 691696

SCREW

Note: (Pawl Friction Plate) Used Before Code Date 12010100

$11.99

$

In Stock, Qty 6

0

608C

Briggs & Stratton 591301

STARTER, Rewind

$56.99

$

In Stock, only 4 left!

0

675

Briggs & Stratton 691261

WASHER

Note: (Brush Retainer)

$3.99

$

In Stock, only 3 left!

0

689

Briggs & Stratton 691855

SPRING, Friction

Note: Used Before Code Date 12010100

$4.49

$

In Stock, only 3 left!

0

689

Spring-Friction

Note: (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

697

Briggs & Stratton 699200

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 792874

SHIELD, Heat

$15.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 698039

COVER, Starter Drive

$8.49

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 699491

SCREW

Note: (Heat Shield)

$3.99

$

In Stock, only 2 left!

0

732

Briggs & Stratton 699200

SCREW

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 692353

GEAR, Pinion

$23.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 694482

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

1005A

Briggs & Stratton 794273

FAN, Flywheel

$16.99

$

In Stock, Qty 9

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 699201

SCREW

Note: (Flywheel Fan)

$4.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1210

Pulley/Spring Assembly

Note: (Pulley) (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

1210

Briggs & Stratton 498144

PULLEY/SPRING ASSEMBLY

Note: (Pulley) Used Before Code Date 08030300

$19.99

$

In Stock, Qty 20+

0

1210

Briggs & Stratton 791849

PULLEY/SPRING ASSEMBLY

Note: (Pulley) Used Before Code Date 12010100

$27.99

$

Usually ships in 2-12 days

0

1211

Pulley/Spring Assembly

Note: (Spring) (Not Serviced Separate. Service With Rewind Assembly.) Used After Code Date 11123100

$

$

Not available

1211

Briggs & Stratton 791849

PULLEY/SPRING ASSEMBLY

Note: (Spring) Used Before Code Date 12010100

$27.99

$

Usually ships in 2-12 days

0
