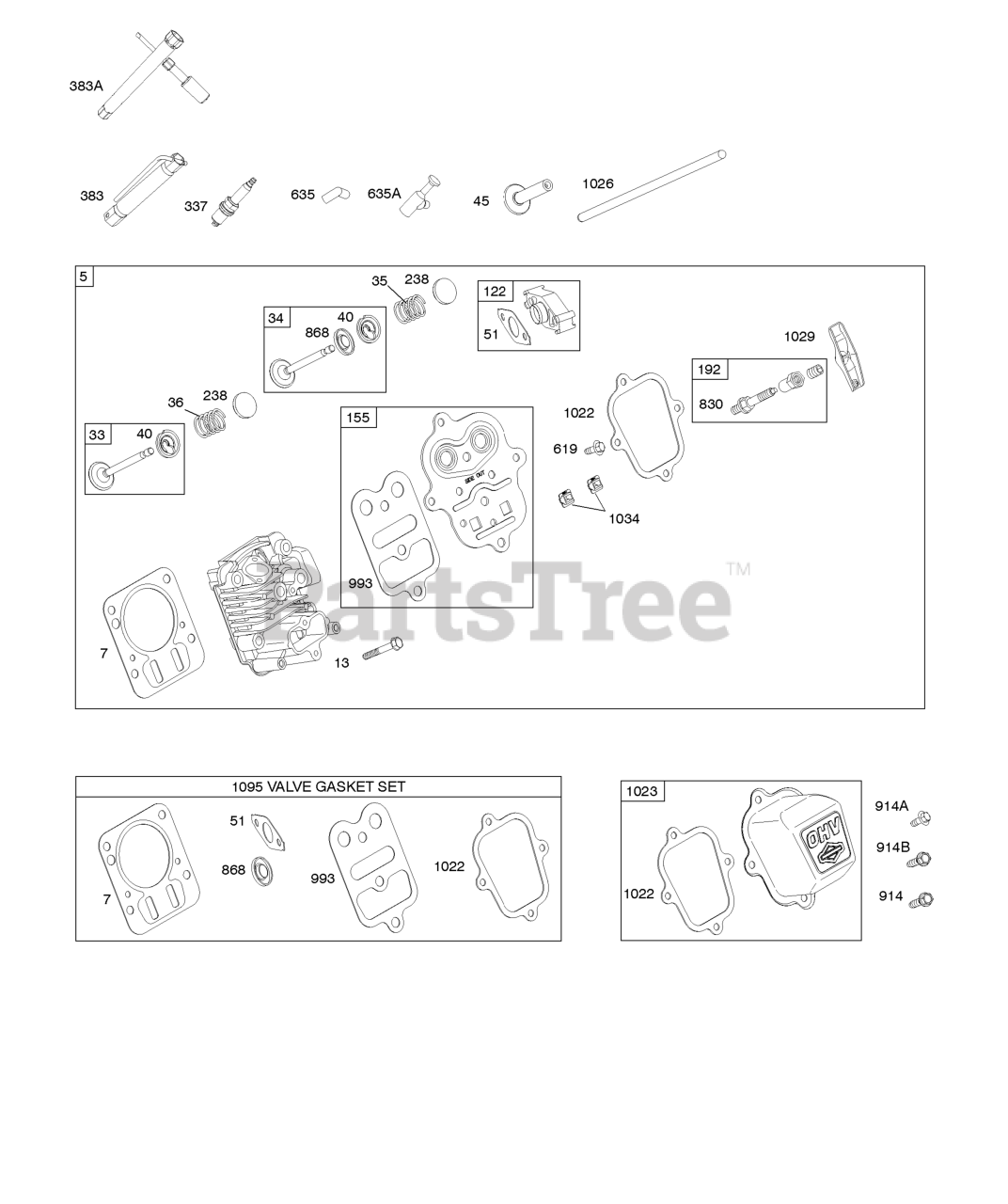

12S402-0004-F8 - Briggs & Stratton Horizontal Engine Cylinder Head Parts Diagram

Horizontal Engine

Cylinder Head Parts Diagram

  • Title

5

Briggs & Stratton 797439

HEAD, Cylinder
(Superseded to 594514)

Note: (Metric)

$

$

Not available

7

Briggs & Stratton 698210

GASKET, Cylinder Head

$8.99

$

In Stock, Qty 16

0

13

Briggs & Stratton 699482

SCREW

Note: (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 499642

VALVE, Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 795443

VALVE, Intake

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 691304

SPRING, Valve

Note: (Intake)

$5.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 691304

SPRING, Valve

Note: (Exhaust)

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 692194

RETAINER, Valve

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

GASKET, Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 5

0

122

Briggs & Stratton 795643

SPACER, Carburetor

$13.99

$

In Stock, Qty 8

0

155

Briggs & Stratton 698214

PLATE, Cylinder Head

Note: (SAE) Used Before Code Date 09061800

$10.99

$

Usually ships in 2-12 days

0

155

Briggs & Stratton 797442

PLATE, Cylinder Head

Note: (Metric) Used After Code Date 09061700

$17.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 694543

ADJUSTER. Rocker Arm

Note: (SAE) Used Before Code Date 09061800

$

$

Not available

192

Briggs & Stratton 797440

ADJUSTER. Rocker Arm

Note: (Metric) Used After Code Date 09061700

$13.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 691300

CAP, Valve

$9.49

$

In Stock, Qty 9

0

337

Briggs & Stratton 491055S

PLUG, Spark

Note: (Resistor)

$4.99

$

In Stock, Qty 20+

0

337

Briggs & Stratton 691043

PLUG, Spark

Note: (EMS)

$6.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

383A

Briggs & Stratton 590721

WRENCH, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

619

Briggs & Stratton 699481

SCREW

Note: (Cylinder Head Plate)

$3.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

635A

Briggs & Stratton 798619

BOOT, Spark Plug

$6.49

$

In Stock, only 1 left!

0

830

Briggs & Stratton 797441

STUD, Rocker Arm

Note: (Rocker Arm) (Metric) Used After Code Date 09061700

$7.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 694544

STUD, Rocker Arm

Note: (Rocker Arm) (SAE) Used Before Code Date 09061800

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 795440

SEAL, Valve

$13.99

$

In Stock, Qty 9

0

914

Briggs & Stratton 699481

SCREW

Note: (Rocker Cover) (Bottom)

$3.99

$

In Stock, only 3 left!

0

914A

Briggs & Stratton 692557

SCREW

Note: (Rocker Cover) (Top) Used Before Code Date 09061800

$3.99

$

Usually ships in 2-12 days

0

914A

Briggs & Stratton 797444

SCREW

Note: (Rocker Cover) (Quantity 1 Top Or Center) Used After Code Date 09061700

$3.99

$

Usually ships in 2-12 days

0

914B

Briggs & Stratton 697551

SCREW
(Superseded to 691108)

Note: (Rocker Cover) (Center) Used Before Code Date 09061800

$3.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

GASKET, Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

GASKET, Rocker Cover

$7.99

$

In Stock, Qty 6

0

1023

Briggs & Stratton 791585

COVER, Rocker

$24.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 790287

ROD, Push

$11.99

$

In Stock, only 2 left!

0

1029

Briggs & Stratton 797443

ARM, Rocker

Note: (Metric) Used After Code Date 09061700

$10.99

$

In Stock, only 1 left!

0

1029

Briggs & Stratton 691230

ARM, Rocker

Note: (SAE) Used Before Code Date 09061800

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

GUIDE, Push Rod

$9.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 791798

GASKET SET, Valve

$33.99

$

In Stock, only 1 left!

0
