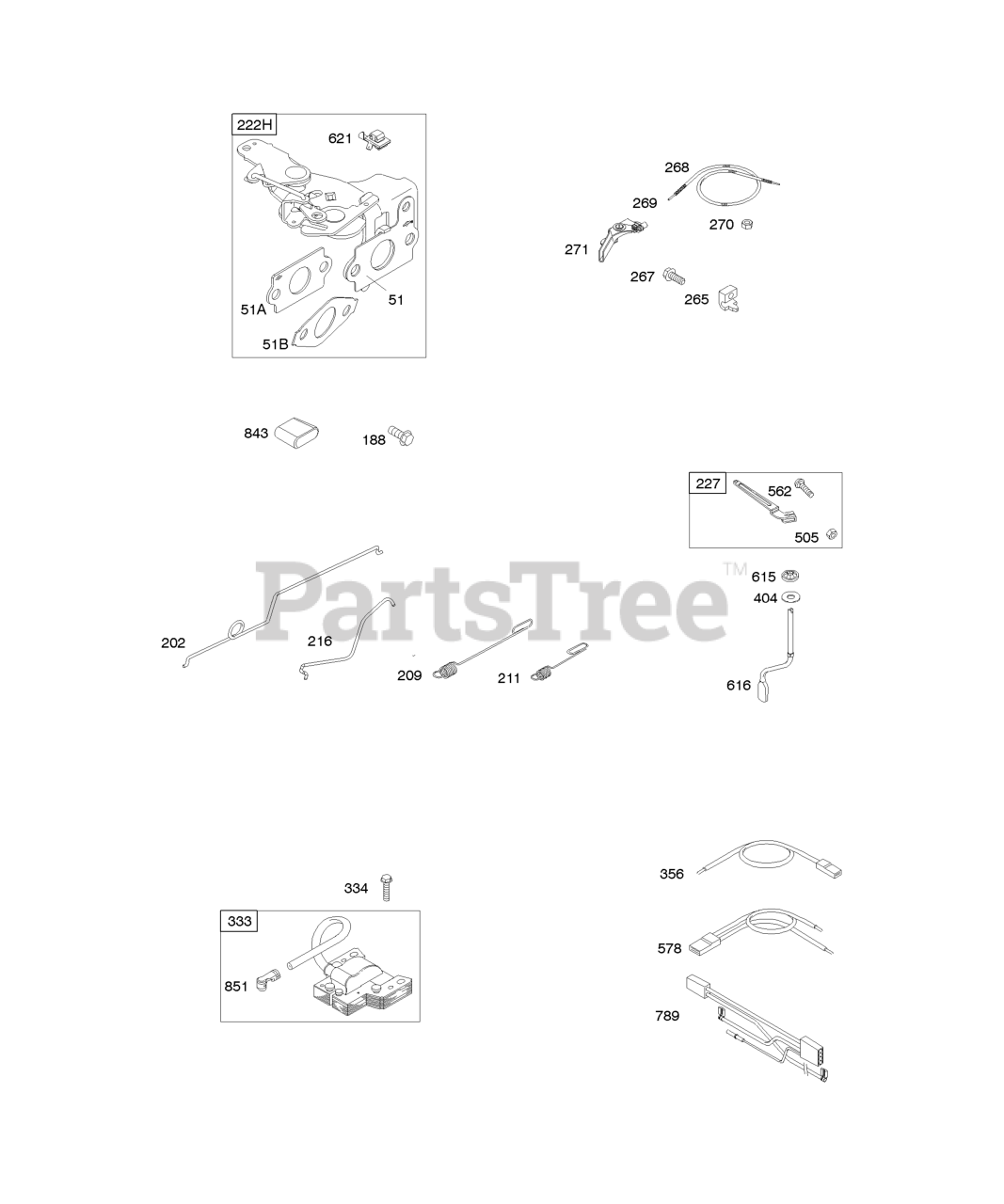

12R605-0116-F1 - Briggs & Stratton Vertical Engine Controls, Governor Spring, Ignition Parts Diagram

Vertical Engine

Controls, Governor Spring, Ignition Parts Diagram

  • Title

51

Briggs & Stratton 692668

Gasket-Intake

$4.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 697735

Gasket-Intake

$4.49

$

Usually ships in 2-12 days

0

51B

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 18

0

188

Briggs & Stratton 691147

Screw

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691303

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 691290

Spring-Governor

$7.99

$

In Stock, only 2 left!

0

211

Briggs & Stratton 692434

Spring-Governed Idle

$8.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 793655

Link-Choke

$9.49

$

Usually ships in 2-12 days

0

222H

Briggs & Stratton 792397

Bracket-Control

$

$

Not available

227

Briggs & Stratton 691467

Lever-Governor Control

$12.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, Qty 6

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

578

Briggs & Stratton 398153

Wire Assembly

$21.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

789

Briggs & Stratton 792685

Harness-Wiring

$33.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 691884

Sleeve-Lever

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0
