12R605-0116-F1 - Briggs & Stratton Vertical Engine Air Cleaner, Exhaust System Parts Diagram

Vertical Engine

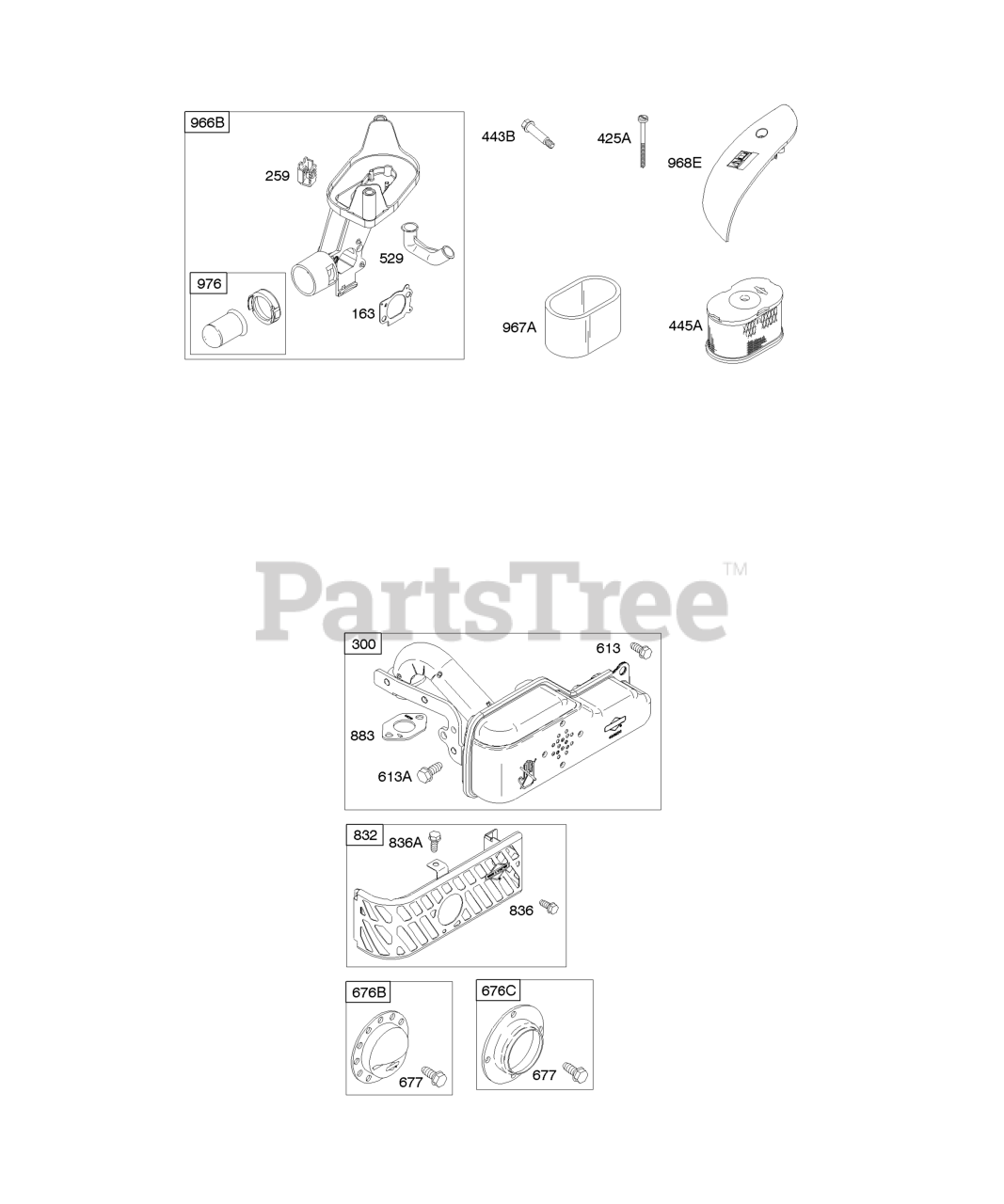

Air Cleaner, Exhaust System Parts Diagram

  • Title

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 10

0

259

Briggs & Stratton 691189

Bracket-Casing Clamp

$4.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 697590

Muffler

$51.99

$

Usually ships in 2-12 days

0

425A

Briggs & Stratton 690244

Screw

Note: (Air Cleaner Cover)

$3.99

$

In Stock, only 2 left!

0

443B

Briggs & Stratton 690255

Screw

Note: (Air Cleaner Primer Base)

$5.99

$

In Stock, only 3 left!

0

445A

Briggs & Stratton 697029

Filter-Air Cleaner Cartridge

$13.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 692937

Grommet

$9.49

$

In Stock, Qty 16

0

613

Briggs & Stratton 691108

SCREW

Note: (Muffler)

$3.49

$

In Stock, Qty 20+

0

613A

Briggs & Stratton 691140

Screw

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 396548

Deflector-Muffler

$16.99

$

Usually ships in 2-12 days

0

676C

Briggs & Stratton 497682

Deflector-Muffler

$9.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 9

0

832

Briggs & Stratton 691466

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691147

Screw

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 697551

Screw
(Superseded to 691108)

Note: (Muffler Guard)

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

966B

Briggs & Stratton 795151

Base-Air Cleaner Primer

$45.99

$

Usually ships in 2-12 days

0

967A

Briggs & Stratton 273356S

Filter-Pre Cleaner

$5.49

$

In Stock, Qty 12

0

968E

Briggs & Stratton 795147

Cover-Air Cleaner

$23.99

$

Usually ships in 2-12 days

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0
