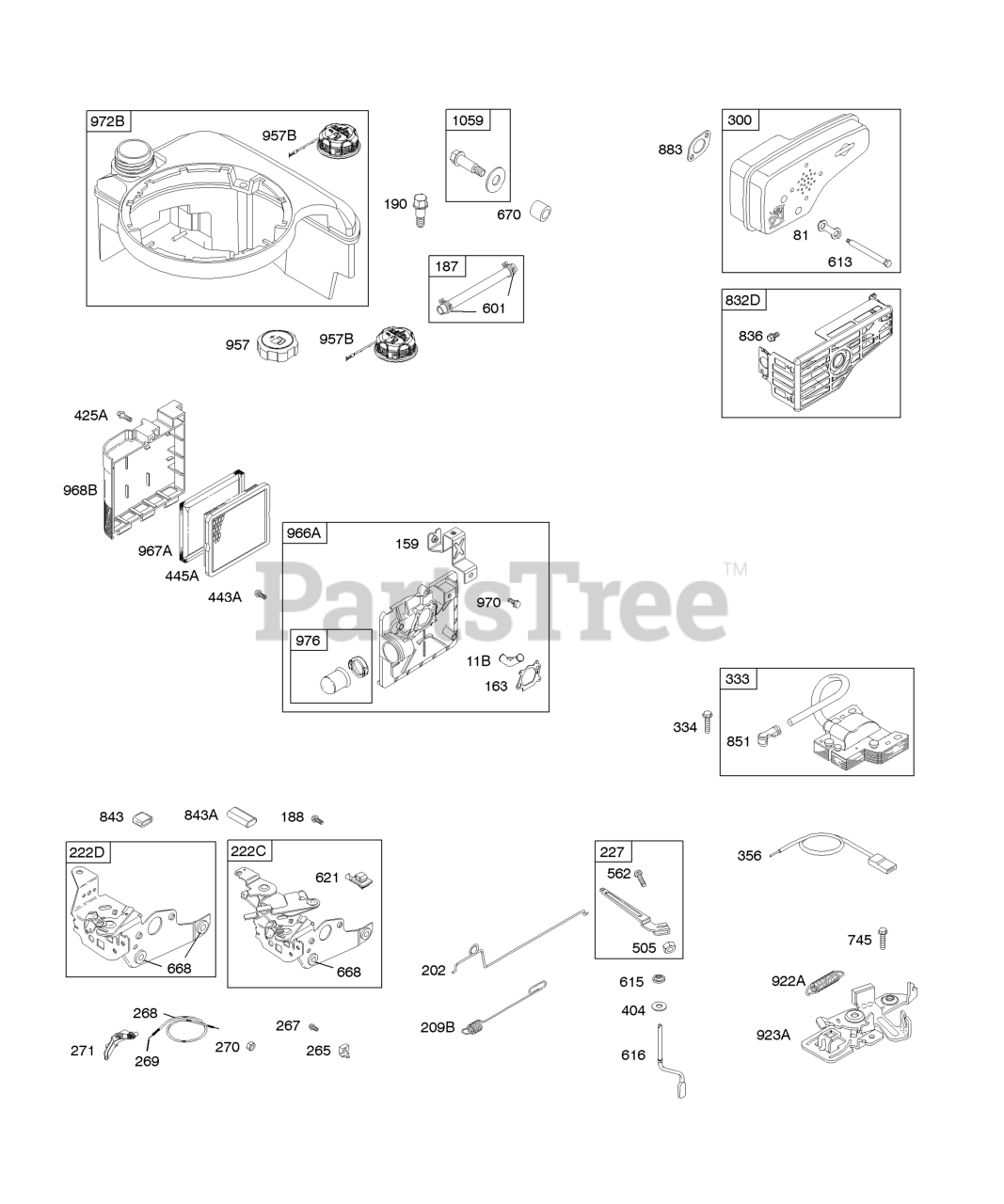

12Q802-0120-D1 - Briggs & Stratton Vertical Engine Air Cleaner, Controls, Electrical, Exhaust System, Flywheel Brake, Fuel Supply, Governor Spring, Ignition Parts Diagram

Vertical Engine

Air Cleaner, Controls, Electrical, Exhaust System, Flywheel Brake, Fuel Supply, Governor Spring, Ignition Parts Diagram

  • Title

11B

Briggs & Stratton 691923

Tube-Breather

$9.49

$

In Stock, only 1 left!

0

81

Briggs & Stratton 691740

Lock-Muffler Screw

$5.49

$

In Stock, Qty 6

0

159

Briggs & Stratton 691753

Bracket-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 4 left!

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, Qty 5

0

202

Briggs & Stratton 691829

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209B

Briggs & Stratton 691290

Spring-Governor

$7.99

$

In Stock, only 2 left!

0

222C

Briggs & Stratton 692150

Bracket-Control

Note: (Remote/Manual Friction)(Variable Speed And 5 Position Manual Choke)

$57.99

$

Usually ships in 2-12 days

0

222D

Briggs & Stratton 692467

Bracket-Control
(Superseded to 793754)

Note: (Fixed Speed)

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690783

Lever-Governor Control

$15.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 692038

Muffler

Note: (Tuned)

$29.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

425A

Briggs & Stratton 690670

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, only 4 left!

0

443A

Briggs & Stratton 692523

Screw

Note: (Air Cleaner Primer Base)

$7.49

$

In Stock, only 2 left!

0

445A

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691340

Screw

Note: (Muffler)

$4.99

$

In Stock, Qty 7

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer

$6.49

$

In Stock, only 1 left!

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 5

0

745

Briggs & Stratton 691648

Screw

Note: (Brake)

$4.99

$

Usually ships in 2-12 days

0

832D

Briggs & Stratton 499034

Guard-Muffler
(Superseded to 593875)

$55.99

$

In Stock, only 3 left!

0

836

Briggs & Stratton 690664

Screw

Note: (Muffler Guard)

$5.49

$

In Stock, only 2 left!

0

843

Briggs & Stratton 691884

Sleeve-Lever

Note: (Control Bracket)

$4.99

$

Usually ships in 2-12 days

0

843A

Briggs & Stratton 691895

Sleeve-Lever

Note: (Choke)

$4.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$8.99

$

Usually ships in 2-12 days

0

922A

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0

923A

Briggs & Stratton 695891

Brake
(Superseded to 796136)

$32.99

$

In Stock, only 2 left!

0

957

Briggs & Stratton 397974S

Cap-Fuel Tank
(Superseded to 796577)

Note: (Plastic)

$16.99

$

Usually ships in 2-12 days

0

957B

Briggs & Stratton 699985

Cap-Fuel Tank
(Superseded to 796577)

Note: (Plastic)

$16.99

$

Usually ships in 2-12 days

0

966A

Briggs & Stratton 496116

Base-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 4 left!

0

967A

Briggs & Stratton 493537S

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 20+

0

968B

Briggs & Stratton 692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 691681

SCREW

Note: (Air Cleaner Primer Bracket)

$8.49

$

In Stock, only 1 left!

0

972B

Briggs & Stratton 699374

Tank-Fuel

Note: (Plastic)

$64.99

$

In Stock, Qty 20+

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$7.49

$

In Stock, only 1 left!

0
