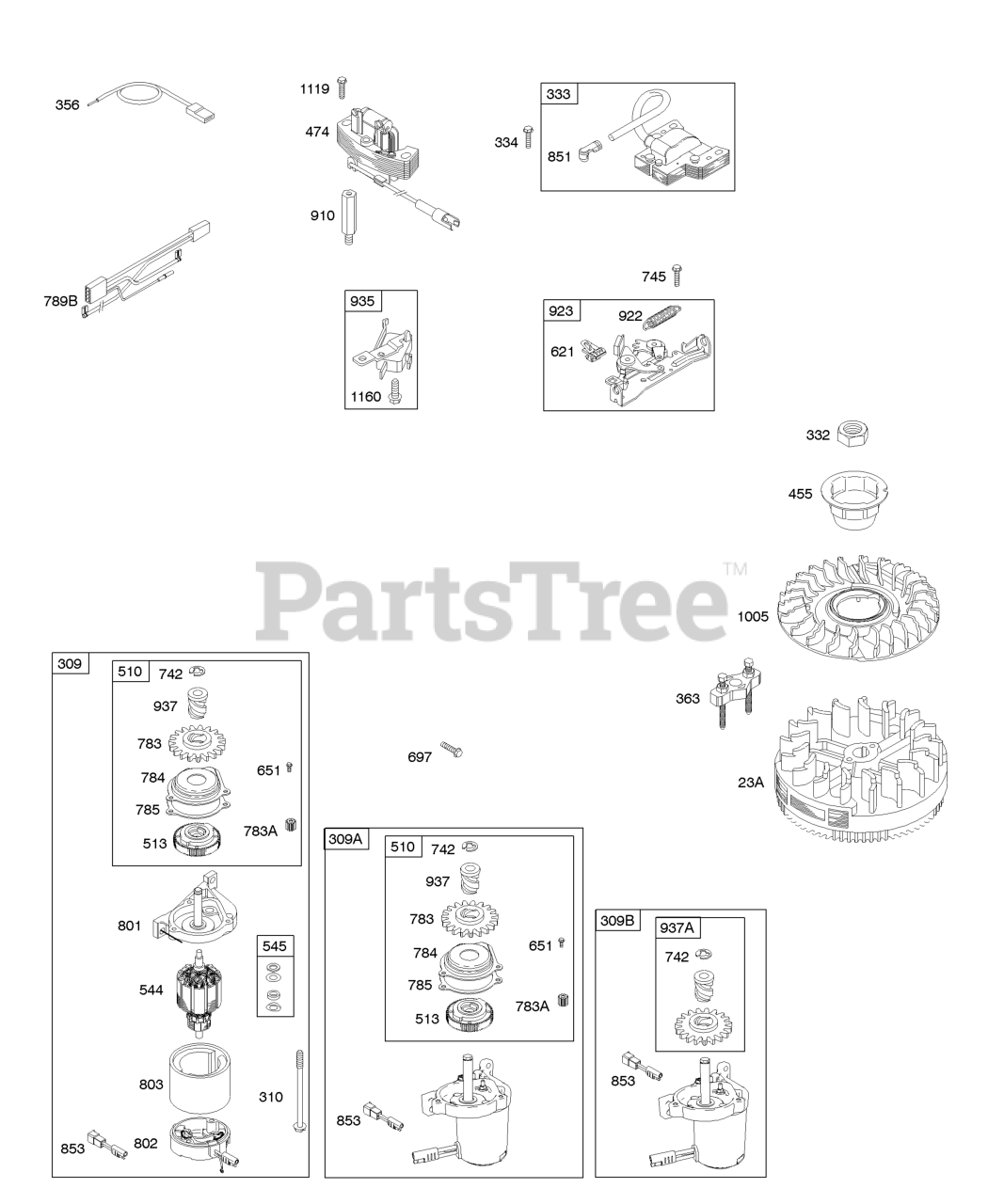

12L882-1509-21 - Briggs & Stratton Vertical Engine Alternator, Electric Starter, Electrical, Flywheel, Flywheel Brake, Ignition Parts Diagram

Vertical Engine

Alternator, Electric Starter, Electrical, Flywheel, Flywheel Brake, Ignition Parts Diagram

  • Title

$112.99

$

In Stock, only 1 left!

0

309

Briggs & Stratton 695550

Motor-Starter
(Superseded to 799045)

Note: Used Before Code Date 07052900

$198.99

$

Usually ships in 2-12 days

0

309A

Briggs & Stratton 795092

Motor-Starter
(Superseded to 799045)

Note: Used After Code Date 07052800 Used Before Code Date 10112800

$198.99

$

Usually ships in 2-12 days

0

309B

Briggs & Stratton 799045

Motor-Starter

Note: Used After Code Date 10112700

$198.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 692327

Screw

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

$

$

Not available

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

$11.99

$

In Stock, only 1 left!

0

474

$118.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 795093

Drive-Starter

$90.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 692358

Clutch-Drive
(Superseded to 795100)

$79.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 690786

Armature-Starter

$32.99

$

Usually ships in 2-12 days

0

545

Briggs & Stratton 492919

Washer Set

Note: (Starter Motor)

$2.49

$

Usually ships in 2-12 days

0

621

$5.99

$

In Stock, Qty 20+

0

651

Briggs & Stratton 691660

Screw

Note: (Starter Gear Cover)

$3.99

$

In Stock, Qty 8

0

697

Briggs & Stratton 691127

SCREW

Note: (Drive Cap)

$4.49

$

In Stock, Qty 13

0

742

Briggs & Stratton 93941

RETAINER, E Ring

$6.99

$

In Stock, only 1 left!

0

745

Briggs & Stratton 691648

Screw

Note: (Brake)

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 691918

Gear-Pinion
(Superseded to 795099)

Note: (19 Teeth)(Starter Drive)

$21.99

$

Usually ships in 2-12 days

0

783A

Briggs & Stratton 691269

Gear-Pinion
(Superseded to 795096)

Note: (12 Teeth)

$13.99

$

Usually ships in 2-12 days

0

784

Briggs & Stratton 795095

Cover-Starter Gear

$13.99

$

Usually ships in 2-12 days

0

785

Briggs & Stratton 692352

Gasket-Starter Cover

$6.49

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 696547

Harness-Wiring
(Superseded to 792685)

$33.99

$

Usually ships in 2-12 days

0

801

$85.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 695975

Cap-End

Note: Used Before Code Date 00040700

$53.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 695267

Cap-End

Note: Used After Code Date 00040600

$30.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 695266

Housing-Starter

Note: Used After Code Date 00040600

$34.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 695975

Housing-Starter

Note: Used Before Code Date 00040700

$53.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

853

$

$

Not available

910

Briggs & Stratton 691094

Stud

Note: (Alternator)

$10.99

$

In Stock, only 2 left!

0

922

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 796387

Brake

Note: Used After Code Date 08043000

$

$

Not available

935

Briggs & Stratton 499421

Switch-Interlock

Note: Used Before Code Date 08050100

$31.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 691325

Spline-Starter
(Superseded to 795098)

$11.99

$

Usually ships in 2-12 days

0

937A

Briggs & Stratton 799420

Spline-Starter

$26.99

$

Usually ships in 2-12 days

0

1005

$26.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691648

Screw

Note: (Alternator)

$4.99

$

Usually ships in 2-12 days

0

1160

Briggs & Stratton 690345

Screw

Note: (Interlock Switch)

$4.99

$

Usually ships in 2-12 days

0
