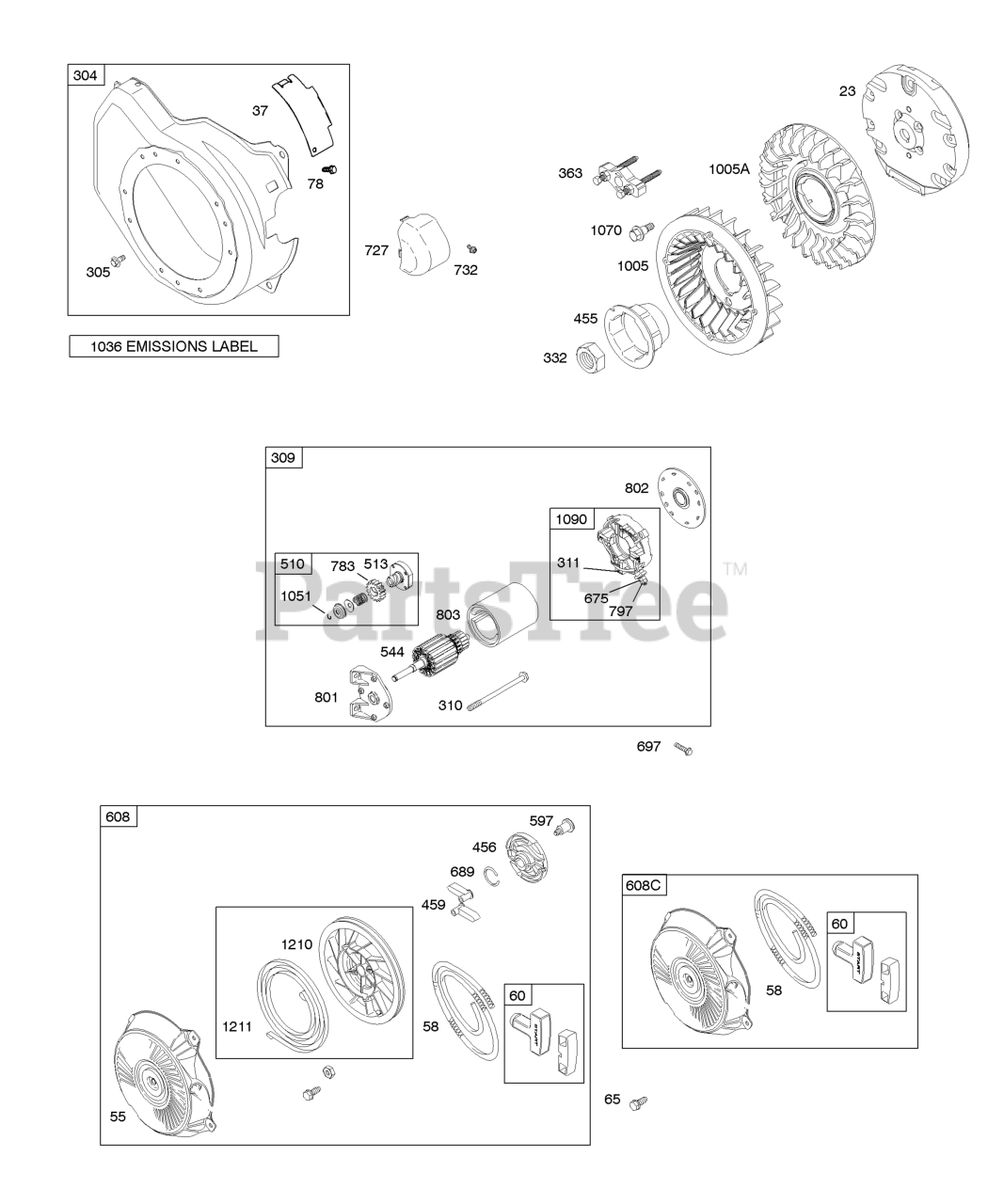

12L332-0106-F8 - Briggs & Stratton Horizontal Engine Blower Housing, Electric Starter, Flywheel, Rewind Starter Parts Diagram

Horizontal Engine

Blower Housing, Electric Starter, Flywheel, Rewind Starter Parts Diagram

  • Title

23

Briggs & Stratton 699488

Flywheel

$185.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 699661

Guard-Flywheel

$8.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 791848

Housing-Rewind Starter

$45.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

Note: (Cut To Required Length) Used After Code Date 11123100

$9.49

$

In Stock, only 2 left!

0

58

Briggs & Stratton 66574

Rope-Starter

Note: (Cut To Required Length) Used Before Code Date 12010100

$7.49

$

In Stock, Qty 9

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 12

0

65

Briggs & Stratton 699851

Screw

Note: (Rewind Starter) (Metric)

$3.99

$

In Stock, Qty 13

0

65

Briggs & Stratton 699228

SCREW

Note: (Rewind Starter) (SAE)

$3.99

$

In Stock, only 3 left!

0

78

Briggs & Stratton 699205

Screw

Note: (Flywheel Guard)

$3.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 795658

Housing-Blower

$90.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 699481

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

309

Briggs & Stratton 694504

Motor-Starter

$375.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 792723

Nut
(Superseded to 591988)

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 591302

Cup-Flywheel

Note: Used After Code Date 11123100

$11.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 692591

Cup-Flywheel
(Superseded to 591302)

Note: Used Before Code Date 12010100

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 13

0

510

Briggs & Stratton 499308

Drive-Starter

$80.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 692966

Armature-Starter

$70.99

$

Usually ships in 2-12 days

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 791670

Starter-Rewind
(Superseded to 591301)

Note: Used Before Code Date 12010100

$56.99

$

In Stock, only 4 left!

0

608C

Briggs & Stratton 591301

Starter-Rewind

Note: Used After Code Date 11123100

$56.99

$

In Stock, only 4 left!

0

675

Briggs & Stratton 691261

WASHER

Note: (Brush Retainer)

$3.99

$

In Stock, only 3 left!

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

697

Briggs & Stratton 793567

Screw

Note: (Drive Cap)

$4.49

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 698039

Cover-Starter Drive

$8.49

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 699200

SCREW

Note: (Starter Drive Cover)

$3.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 692353

Gear-Pinion

$23.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 694482

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

$25.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 692592

Fan-Flywheel
(Superseded to 555778)

$14.99

$

In Stock, only 1 left!

0

1005A

Briggs & Stratton 794273

Fan-Flywheel

$16.99

$

In Stock, Qty 9

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 699201

Screw

Note: (Flywheel Fan)

$4.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1210

Briggs & Stratton 791849

Pulley/Spring Assembly

Note: (Pulley)

$27.99

$

Usually ships in 2-12 days

0

1211

Briggs & Stratton 791849

Pulley/Spring Assembly

Note: (Spring)

$27.99

$

Usually ships in 2-12 days

0
