12L232-0009-H8 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

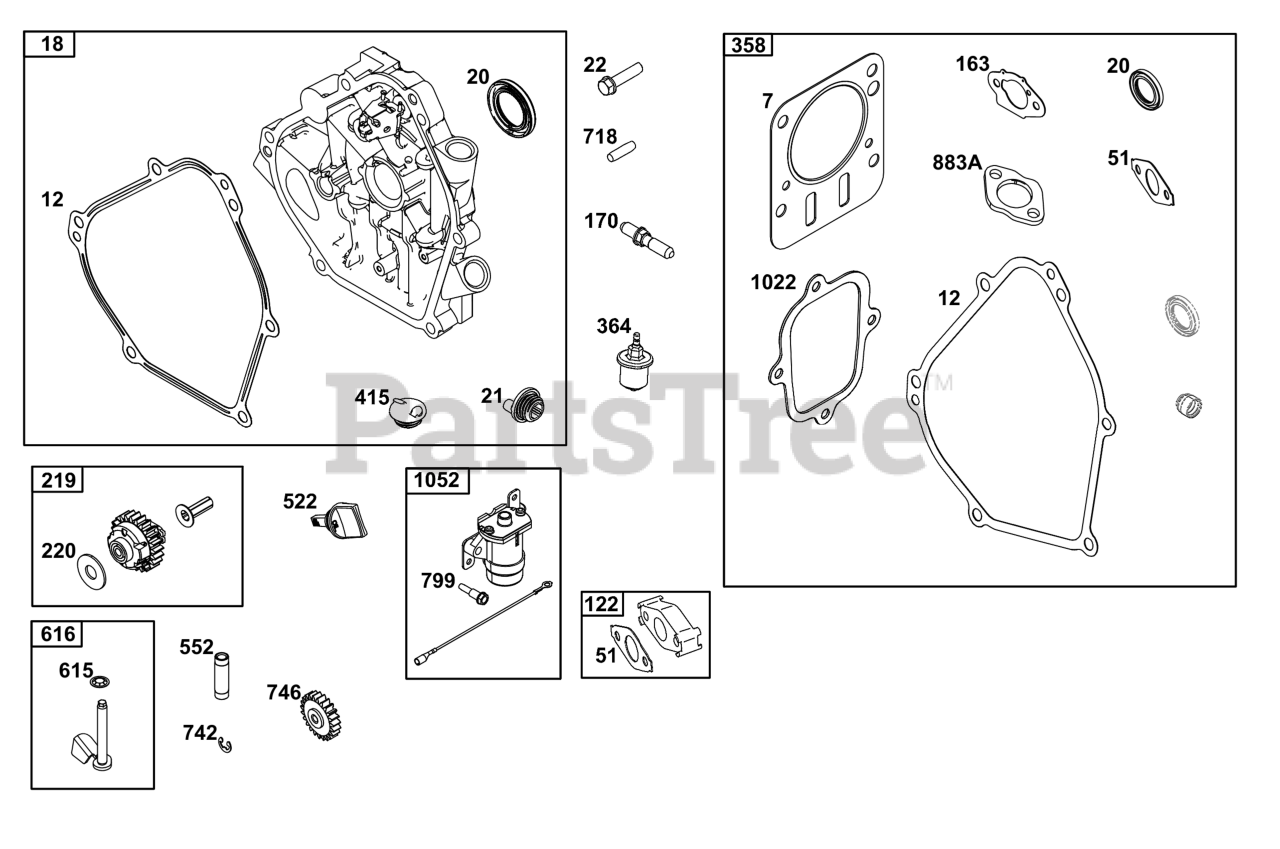

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 699485

GASKET, Crankcase

$8.99

$

In Stock, Qty 15

0

18

Briggs & Stratton 699672

COVER, Crankcase

$199.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

SEAL, Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

CAP, Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 594519

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

122

SPACER, Carburetor

Note: (Part information located in Carburetor and Fuel Supply Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

170

Briggs & Stratton 699818

STUD

Note: (Crankcase Cover/Sump)

$8.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

WASHER

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

364

Briggs & Stratton 695693

TERMINAL, Oil Plug

$13.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 693463

PLUG

$3.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 798503

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 692346

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

RETAINER, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

CRANK, Governor

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 592860

PIN, Locating

$4.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 790278

GEAR, Idler

$17.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 699202

SCREW

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

883A

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1052

Briggs & Stratton 790141

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0
