12L232-0009-H8 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

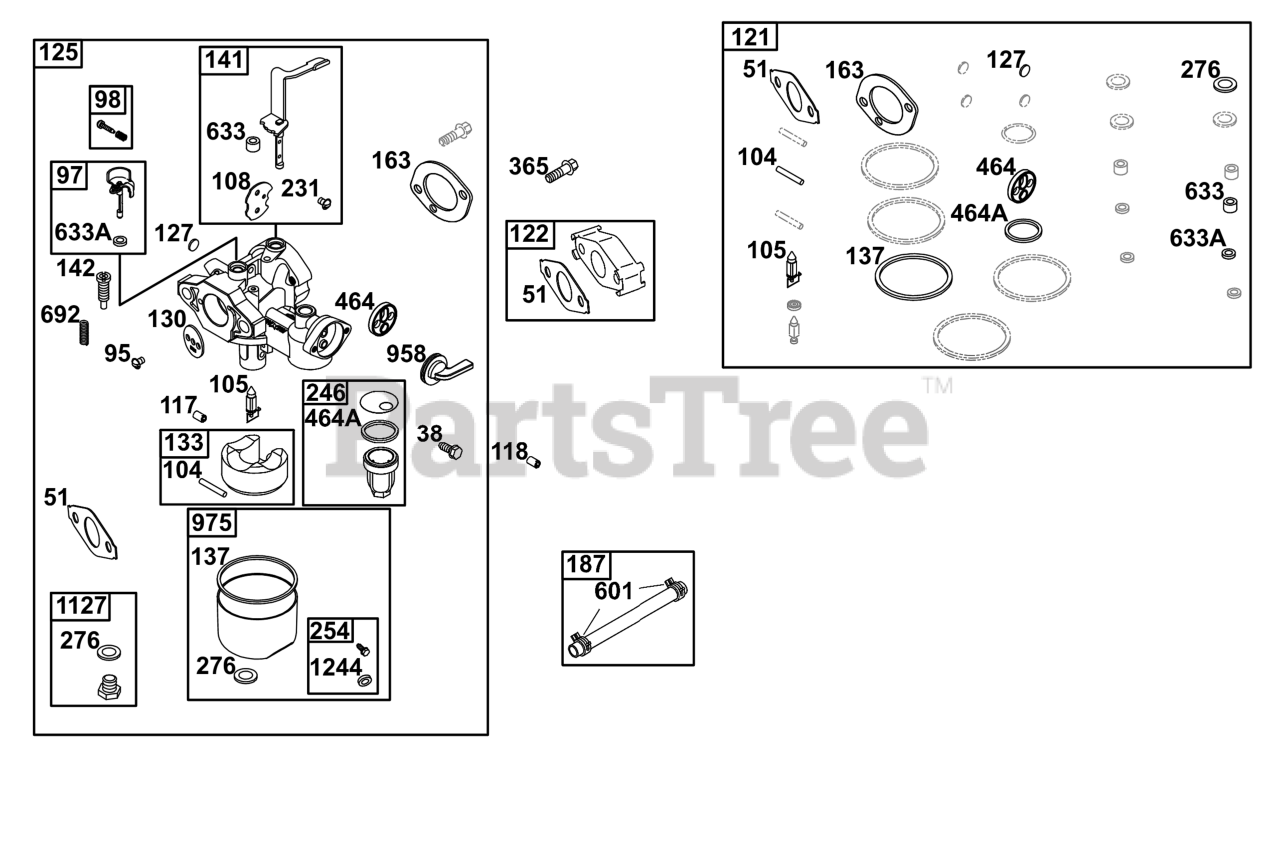

Carburetor and Fuel Supply Group Parts Diagram

  • Title

38

Briggs & Stratton 797150

SCREW

Note: (Fuel Shut Off Valve)

$2.99

$

Usually ships in 2-12 days

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 797161

SCREW

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 797153

SHAFT, Throttle

$23.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

KIT, Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797138

PIN, Float Hinge

$4.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 797139

VALVE, Float Needle

$15.99

$

In Stock, only 4 left!

0

105

Briggs & Stratton 797139

VALVE, Float Needle

$15.99

$

In Stock, only 4 left!

0

108

Briggs & Stratton 797159

VALVE, Choke

$7.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 797140

JET, Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 797141

JET, Main

Note: (High Altitude)

$16.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 797634

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$57.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 795643

SPACER, Carburetor

$13.99

$

In Stock, Qty 8

0

125

Briggs & Stratton 796447

CARBURETOR

$92.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 797135

PLUG, Welch

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 797154

VALVE, Throttle

$5.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 797136

FLOAT, Carburetor

$14.99

$

In Stock, only 2 left!

0

137

Briggs & Stratton 797137

GASKET, Float Bowl

$7.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 797158

KIT, Choke Shaft

$15.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 797151

NOZZLE, Carburetor

$13.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

187

Briggs & Stratton 791874

LINE, Fuel

$16.99

$

In Stock, only 1 left!

0

231

Briggs & Stratton 797160

SCREW

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

246

Briggs & Stratton 593246

BOWL, Fuel Filter

$9.49

$

Usually ships in 2-12 days

0

254

Briggs & Stratton 797145

DRAIN, Carburetor Bowl

$5.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 797147

WASHER, Sealing

$7.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 699484

SCREW

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

464

Briggs & Stratton 797148

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$5.99

$

Usually ships in 2-12 days

0

464A

Briggs & Stratton 797155

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$5.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 797157

SEAL, Choke/Throttle Shaft

$3.49

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 797152

SEAL, Choke/Throttle Shaft

$3.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 797134

SPRING, Detent

$4.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 797149

VALVE, Fuel Shut Off

$11.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 84003362

BOWL, Float

$36.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 797146

SCREW

Note: (Float Bowl To Carburetor Body)

$3.99

$

Usually ships in 2-12 days

0

1244

Briggs & Stratton 797143

SEAL, O-Ring

Note: (Carburetor Bowl Drain)

$5.49

$

Usually ships in 2-12 days

0
