12L232-0002-H8 - Briggs & Stratton Horizontal Engine Engine Sump, Oil Pump, Dipstick/Tube Assembly Parts Diagram

Horizontal Engine

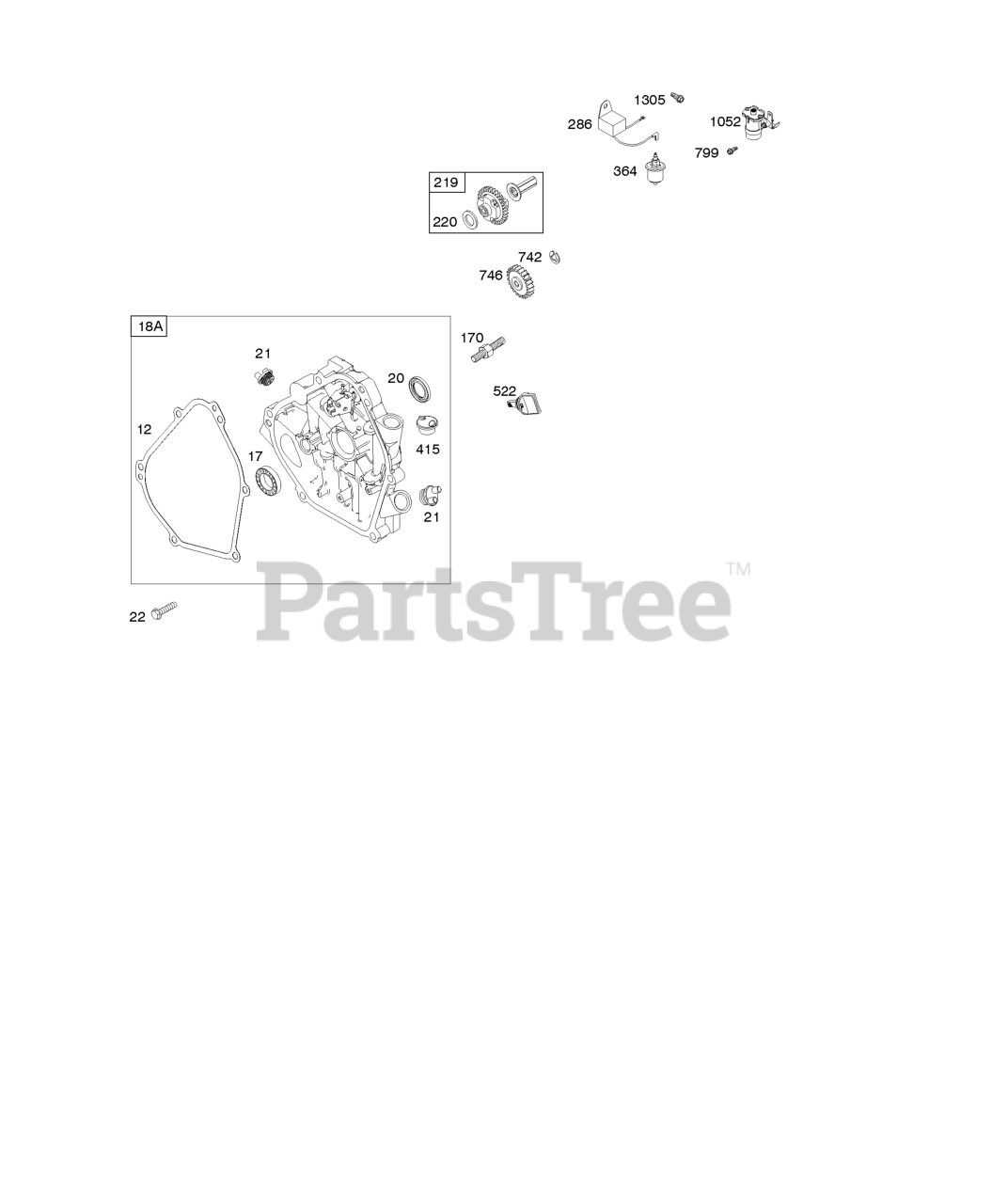

Engine Sump, Oil Pump, Dipstick/Tube Assembly Parts Diagram

  • Title

12

Briggs & Stratton 699485

Gasket-Crankcase

$8.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 798538

Bearing-Ball

$31.99

$

Usually ships in 2-12 days

0

18A

Briggs & Stratton 699672

Cover-Crankcase

$199.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 594519

Screw

Note: (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

170

Briggs & Stratton 699818

Stud

Note: (Crankcase Cover/Sump)

$8.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

286

Briggs & Stratton 794185

Module-Oil Sensor

$61.99

$

Usually ships in 2-12 days

0

364

Briggs & Stratton 695693

Terminal-Oil Plug

$13.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 693463

Plug

$3.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 798503

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 790278

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 699202

Screw

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 790141

Sensor-Oil

$61.99

$

Usually ships in 2-12 days

0

1305

Briggs & Stratton 699691

SCREW

Note: (Oil Sensor Module)

$3.99

$

Usually ships in 2-12 days

0
