12K702-0109-01 - Briggs & Stratton Vertical Engine Fuel Tank Grp Parts Diagram

Vertical Engine

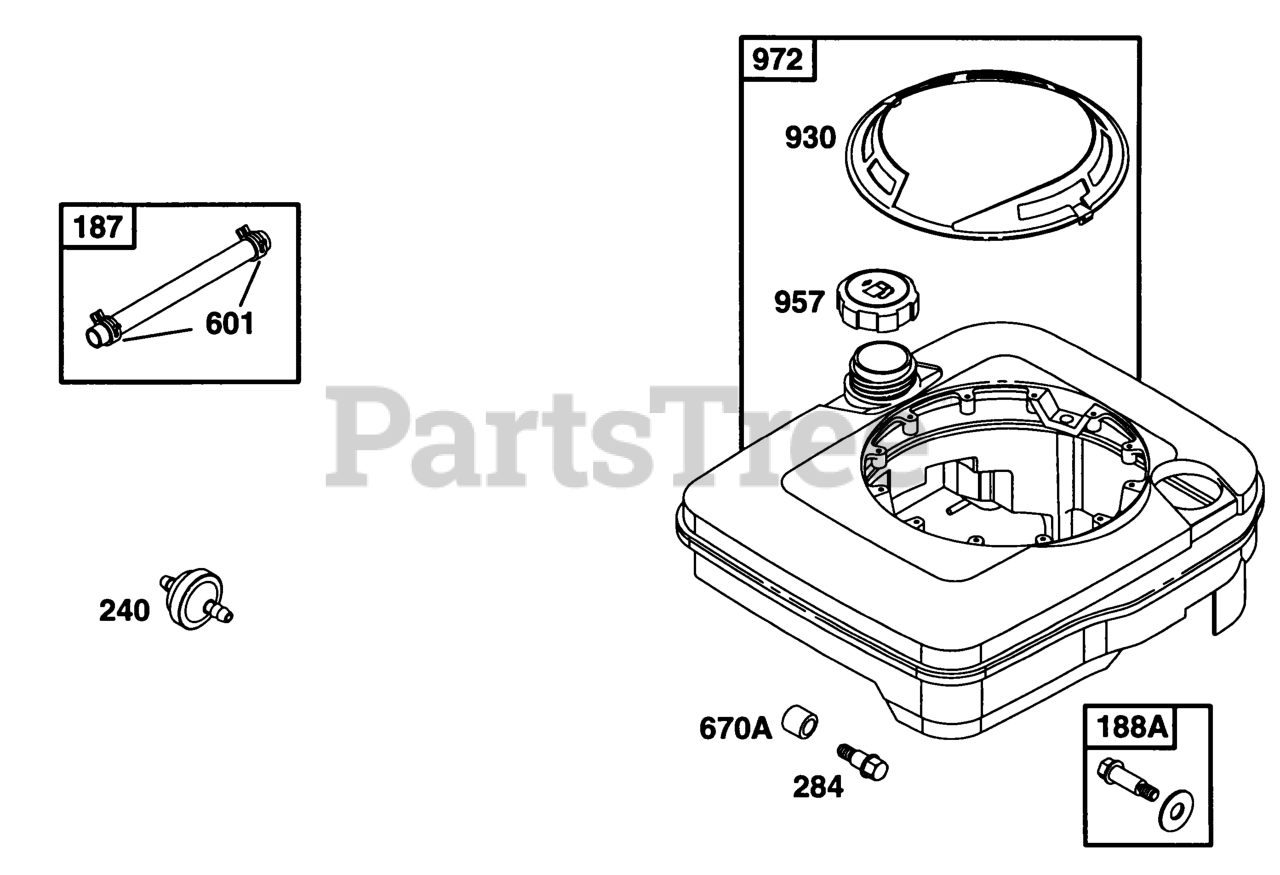

Fuel Tank Grp Parts Diagram

  • Title
187

Briggs & Stratton 298049

Pipe/Clamp Assy
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 398540

Screw/Washer Kit
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

284

Briggs & Stratton 94511

Screw, Machine Hex
(Superseded to 690940)

$3.99

$

In Stock, Qty 8

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 95162

Clamp, Hose (Red)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 280512

Spacer, Tank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

930

Briggs & Stratton 281187

Ring, Trim Black P-P (Snap-in-style For 1 Quart Tanks)
(Superseded to 690598)

$24.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap, Tank Assy (Plastic)
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 497343

Tank-Fuel (Black, 1 Quart)
(Superseded to 699392)

$

$

Not available
