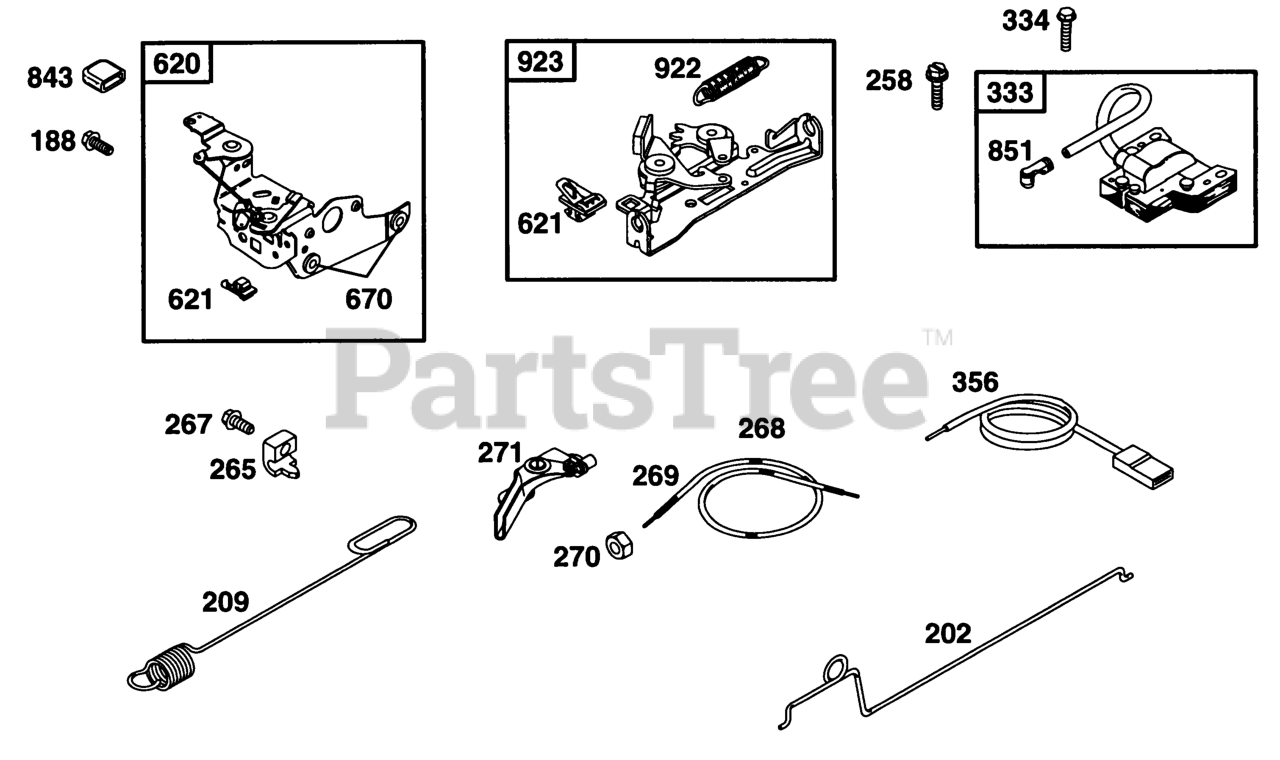

12K702-0109-01 - Briggs & Stratton Vertical Engine Controls, Brake, Elect Parts Diagram

Vertical Engine

Controls, Brake, Elect Parts Diagram

  • Title

188

Briggs & Stratton 94644

Screw, Machine Hex
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

202

Briggs & Stratton 262579

Link-Mechanical Governor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263040

Spring-Governor
(Superseded to 691291)

$7.49

$

In Stock, only 3 left!

0

258

Briggs & Stratton 94512

Screw, Tapping Hex
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 213146

Clamp, Casing
(Superseded to 690798)

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 94882

Screw-Slotted Hex.
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Magneto Armature
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

620

Briggs & Stratton 497203

Bracket, Control As (Use With Primer Type Carburetor)
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670

Briggs & Stratton 493823

Spacer (Includes 2) (Sold In Kit Only)

Note: Included in Gasket Set-Part Number 497316

$6.49

$

In Stock, only 1 left!

0

843

Briggs & Stratton 272616

Sleeve-Lever
(Superseded to 691884)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

923

Briggs & Stratton 493442

Brake Assembly
(Superseded to 796387)

$

$

Not available
