12K332-0153-01 - Briggs & Stratton Horizontal Engine Carburetor, Fuel Supply, Kit/Carburetor Gasket Parts Diagram

Horizontal Engine

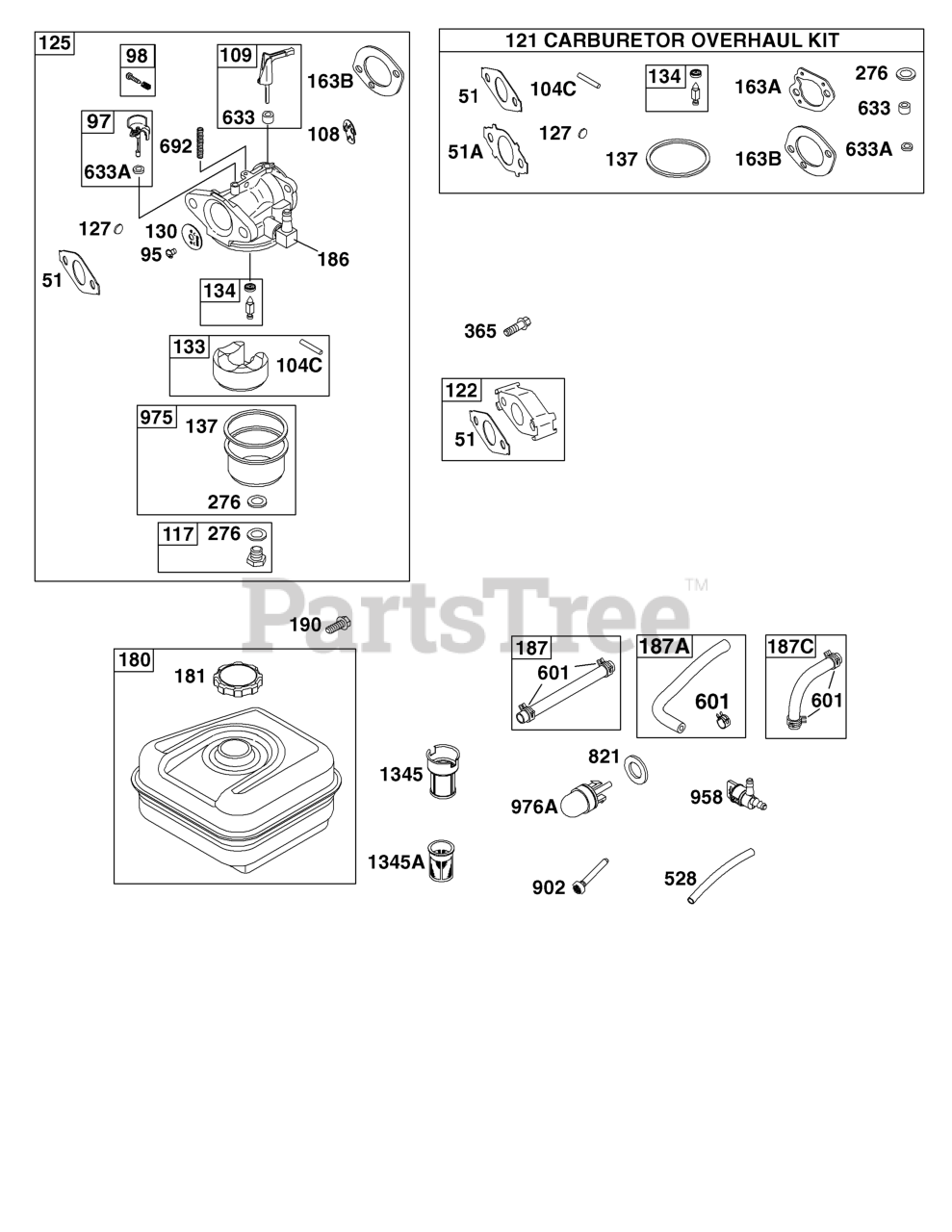

Carburetor, Fuel Supply, Kit/Carburetor Gasket Parts Diagram

  • Title

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 791718

Gasket-Intake

$4.49

$

In Stock, Qty 11

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 3 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

104C

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 692567

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 690023

Shaft-Choke

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 790570

Jet-Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 792006

Kit-Carb Overhaul

$28.99

$

In Stock, Qty 20+

0

122

Briggs & Stratton 795643

Spacer-Carburetor

$13.99

$

In Stock, Qty 11

0

125

Briggs & Stratton 790569

Carburetor

$95.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691739

Plug-Welch

$4.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, only 3 left!

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 792870

Gasket-Air Cleaner

$6.49

$

In Stock, only 1 left!

0

163B

Briggs & Stratton 696024

Gasket-Air Cleaner

Note: (Flat Panel Air Cleaner)

$5.99

$

In Stock, Qty 5

0

180

Briggs & Stratton 791598

Tank-Fuel

Note: (Metal) Used Before Code Date 07050900

$104.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 794640

Tank-Fuel

Note: (Metal) Used After Code Date 07050800

$119.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 794641

CAP, Fuel Tank

Note: (Metal) Used After Code Date 07050800

$20.99

$

In Stock, Qty 6

0

181

Briggs & Stratton 699840

Cap-Fuel Tank

Note: (Metal) Used Before Code Date 07050900

$12.99

$

In Stock, only 1 left!

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 6

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 7

0

187A

Briggs & Stratton 791867

Line-Fuel

Note: (Molded)

$15.99

$

Usually ships in 2-12 days

0

187C

Briggs & Stratton 791866

Line-Fuel

Note: (Molded)

$24.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 795047

Screw

Note: (Fuel Tank) Used After Code Date 08051100

$3.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699839

Screw

Note: (Fuel Tank) Used Before Code Date 08051200

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.49

$

In Stock, Qty 14

0

365

Briggs & Stratton 699484

Screw

Note: (Carburetor)

$3.99

$

In Stock, Qty 5

0

528

Briggs & Stratton 692792

Hose-Primer

$6.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 693867

Seal-Choke/Thr Shaft

$4.99

$

In Stock, only 1 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Choke)

$5.49

$

In Stock, Qty 11

0

821

Briggs & Stratton 792919

Washer

Note: (Carburetor Primer)

$4.49

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 692741

Filter-Primer

$4.49

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 796611

Bowl-Float

$

$

Not available

976A

Briggs & Stratton 692666

Primer-Carburetor

$9.99

$

Usually ships in 2-12 days

0

1345

Briggs & Stratton 699887

Filter-Filler Neck

$3.99

$

Usually ships in 2-12 days

0

1345A

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 1 left!

0
