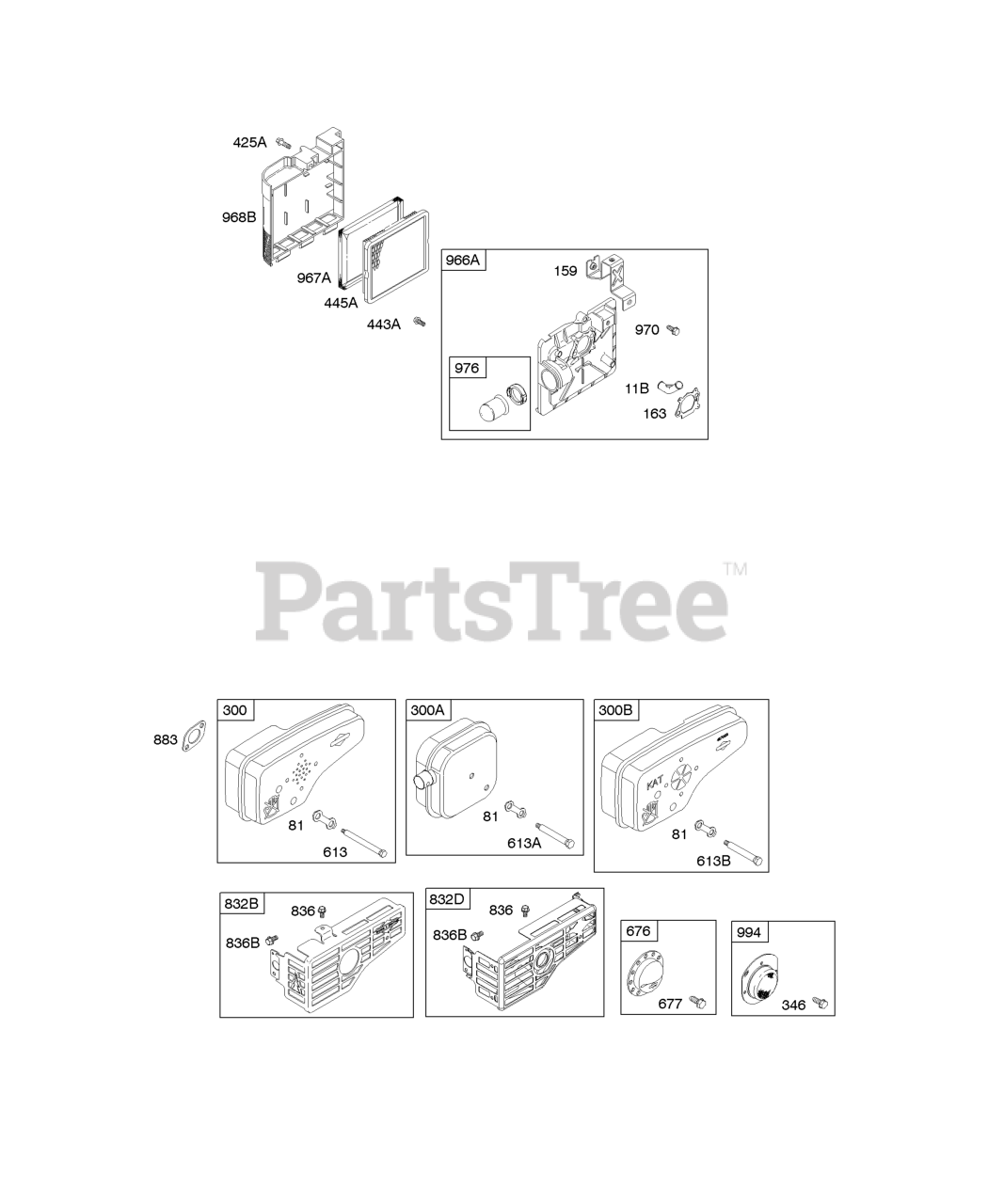

12J802-2368-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Exhaust System Parts Diagram

Vertical Engine

Air Cleaner, Exhaust System Parts Diagram

  • Title
11B

Briggs & Stratton 691923

Tube-Breather

$9.49

$

In Stock, only 1 left!

0

81

Briggs & Stratton 691740

Lock-Muffler Screw

$5.49

$

In Stock, Qty 6

0

159

Briggs & Stratton 691753

Bracket-Air Cleaner Primer
(Superseded to 795259)

$32.99

$

In Stock, only 4 left!

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

300

Briggs & Stratton 692038

Muffler

Note: (Super Lo Tone)

$29.99

$

In Stock, only 1 left!

0

300A

Briggs & Stratton 494343S

Muffler

Note: (Square Lo Tone)

$23.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 497681

Muffler
(Superseded to 692038)

Note: (Catalyst)

$29.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor)

$3.49

$

In Stock, Qty 8

0

425A

Briggs & Stratton 690670

Screw

Note: (Air Cleaner Cover)

$5.99

$

In Stock, only 4 left!

0

443A

Briggs & Stratton 692523

Screw

Note: (Air Cleaner Primer Base)

$7.49

$

In Stock, only 2 left!

0

445A

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691340

Screw

Note: (Muffler)

$4.99

$

In Stock, Qty 7

0

613A

Briggs & Stratton 691653

Screw

Note: (Muffler)

$4.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 691114

Screw

Note: (Muffler)

$5.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 396548

Deflector-Muffler

$16.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

832B

Briggs & Stratton 497683

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

832D

Briggs & Stratton 499034

Guard-Muffler
(Superseded to 593875)

$55.99

$

In Stock, only 3 left!

0

836

Briggs & Stratton 690664

Screw

Note: (Muffler Guard)

$5.49

$

In Stock, only 2 left!

0

836B

Briggs & Stratton 691147

Screw

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$8.99

$

Usually ships in 2-12 days

0

966A

Briggs & Stratton 496116

Base-A/C Primer
(Superseded to 795259)

$32.99

$

In Stock, only 4 left!

0

967A

Briggs & Stratton 493537S

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 20+

0

968B

Briggs & Stratton 692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

970

Briggs & Stratton 691681

SCREW

Note: (Air Cleaner Primer Bracket)

$8.49

$

In Stock, only 1 left!

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

994

Briggs & Stratton 398067

Arrestor-Spark

$64.99

$

Usually ships in 2-12 days

0
