12H802-1148-01 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

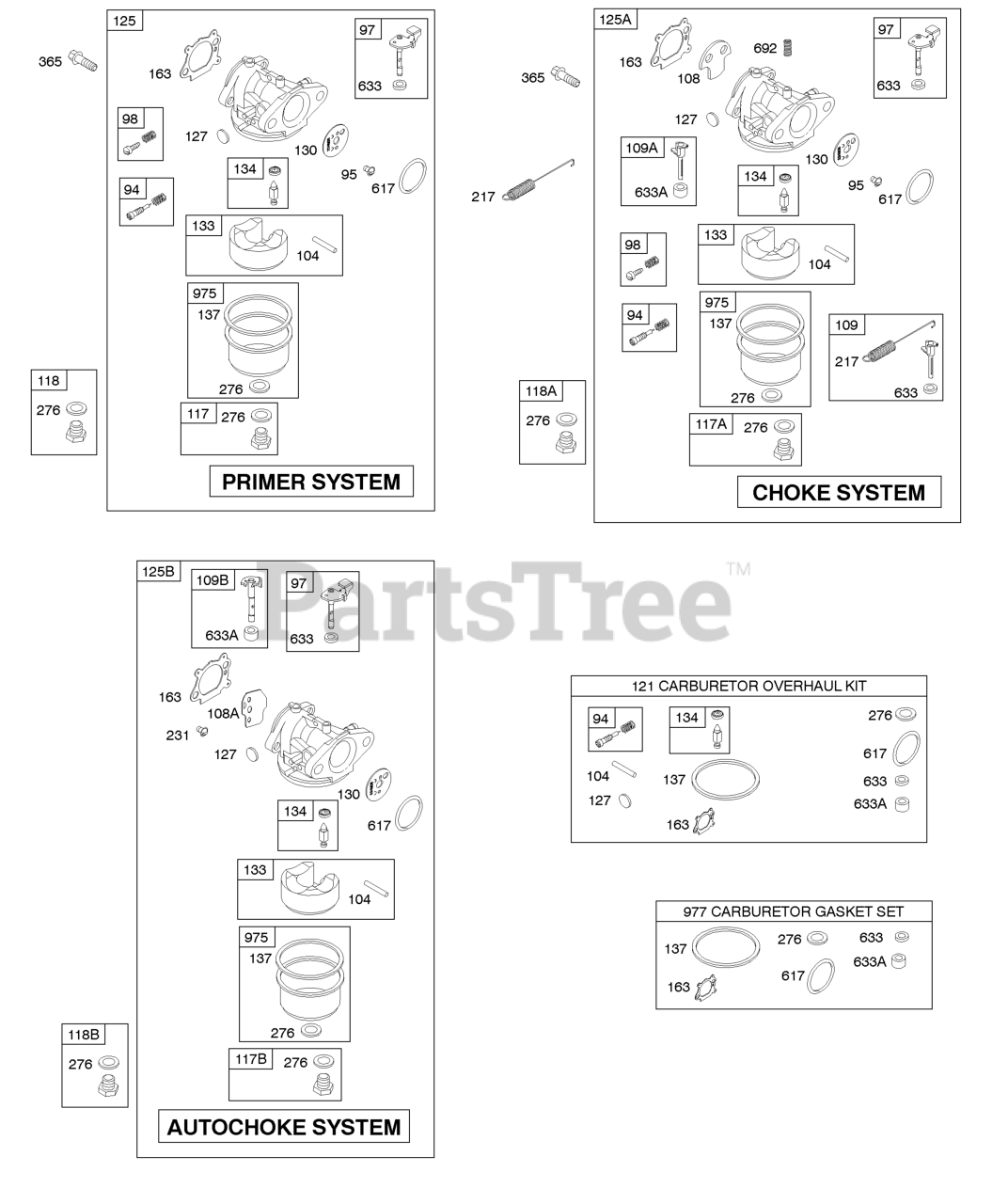

Carburetor Parts Diagram

  • Title

94

Briggs & Stratton 493765

Kit-Idle Mixture

$14.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 493267

Shaft-Throttle

Note: (Metal)

$16.99

$

In Stock, only 4 left!

0

97

Briggs & Stratton 696565

Shaft-Throttle

Note: (Plastic)

$15.99

$

In Stock, only 4 left!

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 691182

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 795935

Valve-Choke

Note: Used After Code Date 08031200

$9.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 790844

Valve-Choke

Note: Used Before Code Date 08031300

$9.49

$

In Stock, only 1 left!

0

109

Briggs & Stratton 494218

Shaft-Choke

$14.99

$

In Stock, only 3 left!

0

109A

Briggs & Stratton 498593

Shaft-Choke

$15.99

$

Usually ships in 2-12 days

0

109B

Briggs & Stratton 790843

Shaft-Choke
(Superseded to 796193)

Note: Used Before Code Date 08031300

$13.99

$

In Stock, only 2 left!

0

109B

Briggs & Stratton 795936

Shaft-Choke
(Superseded to 796193)

Note: Used After Code Date 08031200

$13.99

$

In Stock, only 2 left!

0

117

Briggs & Stratton 494870

Jet-Main

Note: (Standard)

$

$

Not available

117A

Briggs & Stratton 498978

Jet-Main

Note: (Standard)

$

$

Not available

117B

Briggs & Stratton 697355

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 498975

Jet-Main
(Superseded to 798660)

Note: (High Altitude)

$19.99

$

In Stock, Qty 5

0

118A

Briggs & Stratton 498975S

Jet-Main

Note: (High Altitude)

$

$

Not available

118B

Briggs & Stratton 692677

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 498260

Kit-Carburetor Overhaul

$16.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 498170

Carburetor
(Superseded to 799868)

Note: (Primer System)

$63.99

$

Usually ships in 2-12 days

0

125B

Briggs & Stratton 790845

Carburetor
(Superseded to 799871)

Note: (Autochoke System)

$67.99

$

In Stock, Qty 13

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 696564

Valve-Throttle

Note: (Used With Plastic Throttle Shaft) Used After Code Date 01040800

$8.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

Note: (1/16" Thick)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 15

0

163

Briggs & Stratton 272653S

Gasket-Air Cleaner
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

217

Briggs & Stratton 690354

Spring-Choke Return

$7.49

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.49

$

In Stock, Qty 10

0

365

Briggs & Stratton 691688

Screw

Note: (Carburetor/Throttle Body)

$4.49

$

In Stock, only 2 left!

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 498261

Gasket Set-Carburetor
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0
