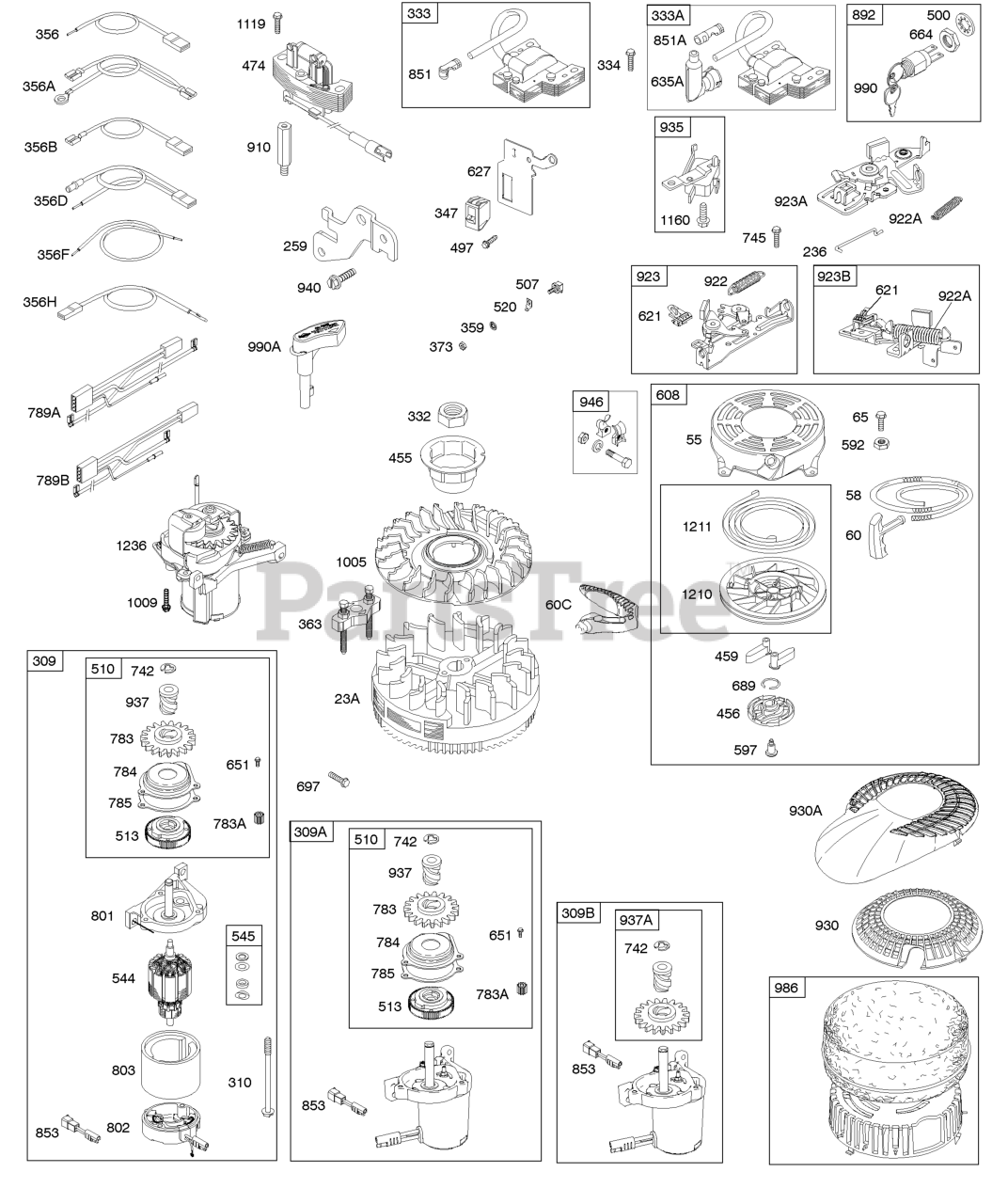

12H802-1148-01 - Briggs & Stratton Vertical Engine Alternator, Electric Starter, Electrical, Flywheel, Flywheel Brake, Ignition, Rewind Starter Parts Diagram

Vertical Engine

Alternator, Electric Starter, Electrical, Flywheel, Flywheel Brake, Ignition, Rewind Starter Parts Diagram

  • Title

23A

Briggs & Stratton 691987

Flywheel

$112.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 691421

Housing-Rewind Starter

$64.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280399S

Rope-Starter

Note: (Cut To Required Length)

$5.99

$

In Stock, Qty 8

0

60

Briggs & Stratton 281434S

Grip-Starter Rope

$3.99

$

In Stock, only 4 left!

0

60C

Briggs & Stratton 799716

Grip-Starter Rope

$10.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 690837

Screw (Rewind Starter)

Note: (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

236

Briggs & Stratton 691826

Link-Lockout

$7.99

$

In Stock, only 3 left!

0

259

Briggs & Stratton 691223

Bracket-Casing Clamp

Note: (Control Wire Casing)

$14.99

$

In Stock, only 1 left!

0

309

Briggs & Stratton 695550

Motor-Starter
(Superseded to 799045)

Note: Used Before Code Date 07052900

$198.99

$

Usually ships in 2-12 days

0

309A

Briggs & Stratton 795092

Motor-Starter
(Superseded to 799045)

Note: Used After Code Date 07052800 Used Before Code Date 10112800

$198.99

$

Usually ships in 2-12 days

0

309B

Briggs & Stratton 799045

Motor-Starter

Note: Used After Code Date 10112700

$198.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 692327

Screw (Starter Motor)

Note: (Starter Motor)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 793353

Armature-Magneto
(Superseded to 590455)

Note: (Snap In Spark Plug Boot)

$

$

Not available

333A

Briggs & Stratton 792640

Armature-Magneto
(Superseded to 590455)

Note: (Screw On Spark Plug Boot)

$

$

Not available

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 691396

Switch-Rocker

$17.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

356A

Briggs & Stratton 690650

Wire-Stop

$

$

Not available

356D

Briggs & Stratton 496381

Wire-Stop

$13.99

$

Usually ships in 2-12 days

0

356F

Briggs & Stratton 494250

Wire-Stop

$9.99

$

Usually ships in 2-12 days

0

356H

Briggs & Stratton 690791

Wire-Stop

$11.99

$

In Stock, only 1 left!

0

356B

Briggs & Stratton 693010

Wire-Stop

$11.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer (Ground Terminal)

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

455

Briggs & Stratton 791960

Cup-Flywheel

$11.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 13

0

474

Briggs & Stratton 691991

Alternator

$118.99

$

Usually ships in 2-12 days

0

497

Briggs & Stratton 690664

Screw (Muffler Guard)

Note: (Stopswitch Bracket)

$5.49

$

In Stock, only 1 left!

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

510

Briggs & Stratton 795093

Drive-Starter

$90.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 692358

Clutch-Drive
(Superseded to 795100)

$79.99

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

544

Briggs & Stratton 690786

Armature-Starter

$32.99

$

Usually ships in 2-12 days

0

545

Briggs & Stratton 492919

Washer Set (Starter Motor)

Note: (Starter Motor)

$2.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 690800

Nut (Rewind Starter)

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 13

0

597

Briggs & Stratton 691696

Screw (Pawl Friction Plate)

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 497680

Starter-Rewind

$49.99

$

In Stock, Qty 20+

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

627

Briggs & Stratton 692872

Bracket-Stopswitch
(Superseded to 792565)

$7.99

$

Usually ships in 2-12 days

0

635A

Briggs & Stratton 792597

Boot-Spark Plug
(Superseded to 793351)

Note: (Screw On Style)

$14.99

$

In Stock, only 1 left!

0

635A

Briggs & Stratton 793351

Shield-Spark Plug

Note: (Snap In Style)

$14.99

$

In Stock, only 1 left!

0

651

Briggs & Stratton 691660

Screw

Note: (Starter Gear Cover)

$3.99

$

In Stock, Qty 8

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

697

Briggs & Stratton 691127

SCREW

Note: (Starter Motor) (Drive Cap)

$4.49

$

In Stock, Qty 13

0

742

Briggs & Stratton 93941

RETAINER, E Ring

$6.99

$

In Stock, only 1 left!

0

745

Briggs & Stratton 691648

Screw (Muffler Adapter)

Note: (Brake)

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 691918

Gear-Pinion
(Superseded to 795099)

$21.99

$

Usually ships in 2-12 days

0

783A

Briggs & Stratton 691269

Gear-Pinion
(Superseded to 795096)

$13.99

$

Usually ships in 2-12 days

0

784

Briggs & Stratton 795095

Cover-Starter Gear

$13.99

$

Usually ships in 2-12 days

0

785

Briggs & Stratton 692352

Gasket-Starter Cover

$6.49

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 691372

Harness-Wiring

Note: Used Before Code Date 00040700

$27.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 696547

Harness-Wiring
(Superseded to 792685)

$33.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 690782

Cap-Drive

$85.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 695267

Cap-End

Note: Used After Code Date 00040600

$30.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 695975

Housing-Starter

Note: Used Before Code Date 00040700

$53.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 695975

Housing-Starter

Note: Used Before Code Date 00040700

$53.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 695266

Housing-Starter

Note: Used After Code Date 00040600

$34.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

851A

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

853

Briggs & Stratton 695268

Adapter-Wire

$

$

Not available

892

Briggs & Stratton 690646

SWITCH, Key

$34.99

$

In Stock, Qty 5

0

910

Briggs & Stratton 691094

Stud (Alternator)

Note: (Alternator)

$10.99

$

In Stock, only 2 left!

0

922

Briggs & Stratton 691831

Spring-Brake

$10.99

$

In Stock, only 2 left!

0

922A

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0

923

Briggs & Stratton 796387

Brake

Note: Used After Code Date 08043000

$

$

Not available

923A

Briggs & Stratton 695891

Brake
(Superseded to 796136)

$32.99

$

In Stock, only 1 left!

0

930

Briggs & Stratton 691919

Guard-Rewind

Note: (Round)

$28.99

$

Usually ships in 2-12 days

0

930A

Briggs & Stratton 691345

Guard-Rewind

Note: (Tear Drop)

$18.99

$

Usually ships in 2-12 days

0

935

Briggs & Stratton 499421

Switch-Interlock

Note: Used Before Code Date 08050100

$31.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 691325

Spline-Starter
(Superseded to 795098)

$11.99

$

Usually ships in 2-12 days

0

937A

Briggs & Stratton 799420

Spline-Starter

$26.99

$

Usually ships in 2-12 days

0

940

Briggs & Stratton 690664

Screw (Muffler Guard)

Note: (Casing Clamp Bracket)

$5.49

$

In Stock, only 1 left!

0

946

Briggs & Stratton 691738

Stop-Rope

$5.99

$

In Stock, only 4 left!

0

986

Briggs & Stratton 693514

Filter-Debris Foam

$

$

Not available

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 7

0

990A

Briggs & Stratton 695951

Key Set

Note: (Touch N Mow)

$8.49

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 691346

Fan-Flywheel

$26.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 696255

Screw

Note: (USE REFERENCE 697 ONLY)

$3.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691648

Screw (Muffler Adapter)

Note: (Alternator)

$4.99

$

Usually ships in 2-12 days

0

1160

Briggs & Stratton 690345

Screw (Breather Passage Cover)

Note: (Interlock Switch)

$4.99

$

Usually ships in 2-12 days

0

1210

Briggs & Stratton 498144

Pulley/Spring Assembly (Spring)

Note: (Pulley) (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly (Spring)

Note: (Spring) (Spring)

$19.99

$

In Stock, Qty 20+

0

1236

Briggs & Stratton 695959

Starter-Mechanical

Note: (Touch N Mow)(Do Not Service Individual Parts, Only As A Whole)

$219.99

$

Usually ships in 2-12 days

0
