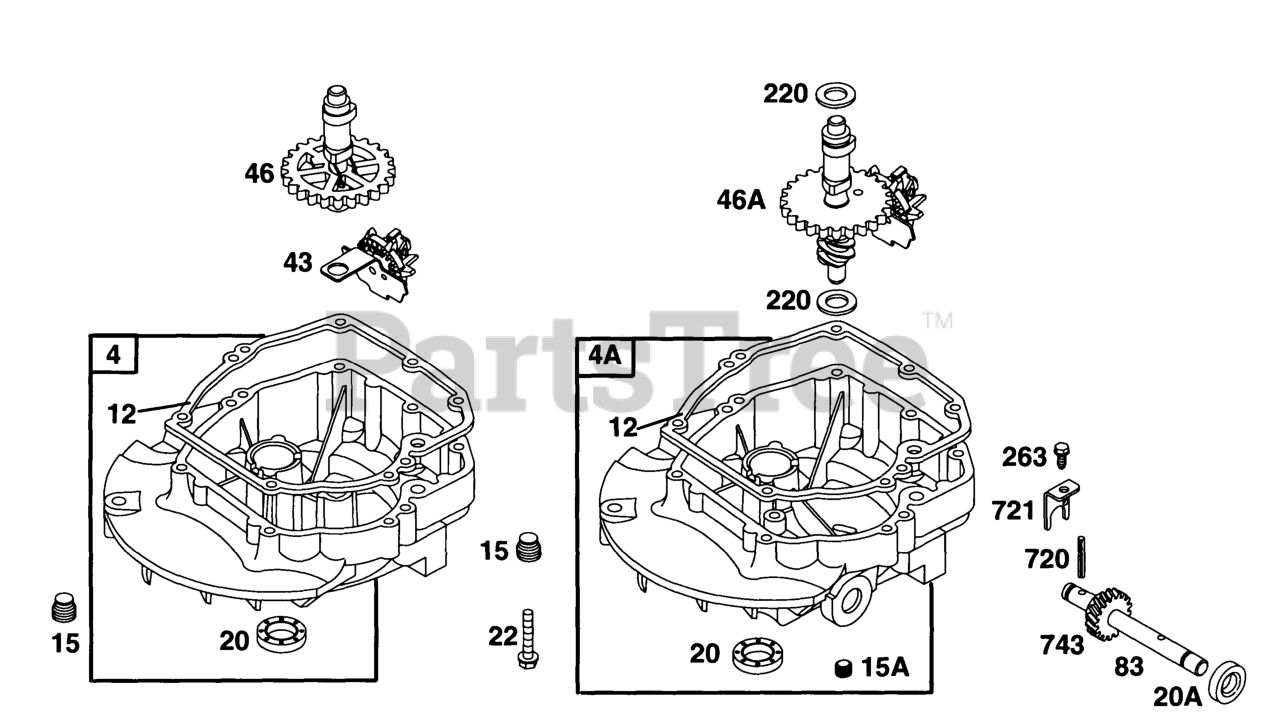

12E782-0679-01 - Briggs & Stratton Vertical Engine Sump Bases, Cams Parts Diagram

Vertical Engine

Sump Bases, Cams Parts Diagram

  • Title

4A

Briggs & Stratton 493365

Sump-Engine

$63.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 493279

Sump, Engine

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 272198

Gasket-Crankcase
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

15A

Briggs & Stratton 94470

Plug-Pipe
(Superseded to 691093)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94720

Plug-Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

20A

Briggs & Stratton 391484

Seal, Auxiliary PTO"
(Superseded to 691952)

$9.99

$

In Stock, Qty 11

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

Screw (Crankcase Cover/sump)
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94612

Screw (Crankcase Cover/Sump)(used In Hole Nearest Breather)
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 493737

Slinger-Governor/oil
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 493741

Camshaft (Counter Clockwise)

$51.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492828

Camshaft

$51.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 231711

Shaft-Auxiliary Drive
(Superseded to 690521)

$25.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 68938

Washer
(Superseded to 691074)

$

$

Not available

263

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 9

0

720

Briggs & Stratton 93474

Pin-Gear
(Superseded to 691623)

$

$

Not available

721

Briggs & Stratton 224249

Stop-Shaft
(Superseded to 690449)

$5.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 231279

Gear, Helical (Counterclockwise)
(Superseded to 691772)

$82.99

$

Usually ships in 2-12 days

0
