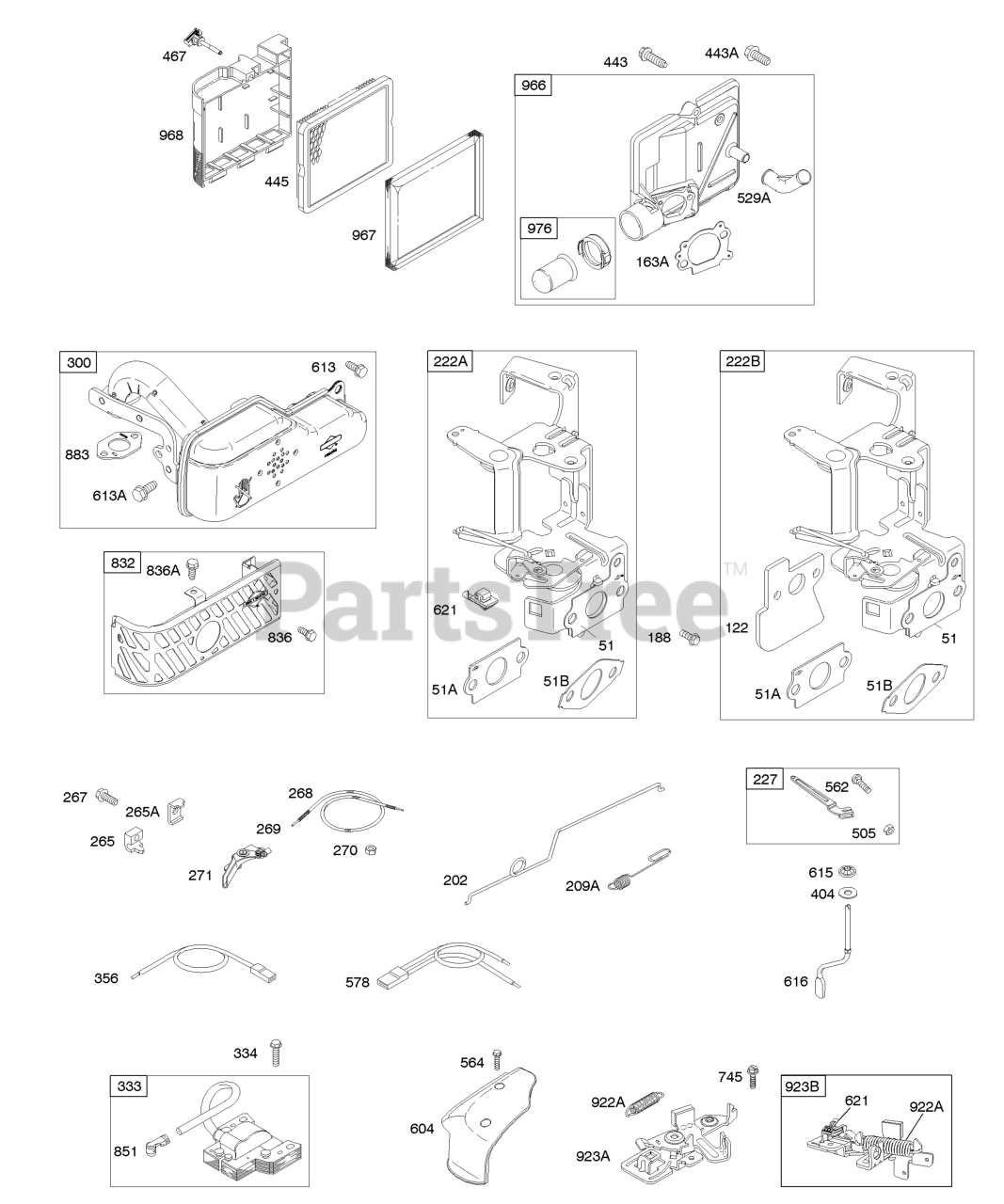

12E602-0136-B1 - Briggs & Stratton Vertical Engine Air Cleaner, Controls, Exhaust System, Flywheel Brake, Governor Spring, Ignition Parts Diagram

Vertical Engine

Air Cleaner, Controls, Exhaust System, Flywheel Brake, Governor Spring, Ignition Parts Diagram

  • Title

51

Briggs & Stratton 692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 697735

Gasket-Intake

$4.49

$

Usually ships in 2-12 days

0

51B

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 9

0

122

Briggs & Stratton 692799

Spacer-Carburetor

$14.99

$

In Stock, only 1 left!

0

163A

Briggs & Stratton 692667

Gasket-Air Cleaner

$4.49

$

In Stock, only 3 left!

0

188

Briggs & Stratton 691147

Screw

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691303

Link-Mechanical Governor

$

$

Not available

209A

Briggs & Stratton 691291

Spring-Governor

$7.49

$

In Stock, only 3 left!

0

222A

Briggs & Stratton 792402

Bracket-Control

$25.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691467

Lever-Governor Control

$12.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

265A

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 694248

Muffler
(Superseded to 692275)

$

$

Not available

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

443

Briggs & Stratton 692523

Screw

Note: (Air Cleaner Primer Base)

$7.49

$

In Stock, only 2 left!

0

443A

Briggs & Stratton 691637

Screw

Note: (Air Cleaner Primer Base)

$3.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 491588S

FILTER, A/C Cartridge

$6.49

$

In Stock, Qty 20+

0

467

Briggs & Stratton 790842

Knob-Air Cleaner Cover

$12.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

529A

Briggs & Stratton 691923

Grommet

$9.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

564

Briggs & Stratton 693808

Screw

Note: (Control Cover)

$3.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 398153

Wire Assembly

$21.99

$

Usually ships in 2-12 days

0

604

Briggs & Stratton 692669

Cover-Control

$22.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 691108

SCREW

Note: (Muffler)

$3.49

$

In Stock, Qty 20+

0

613A

Briggs & Stratton 691140

Screw

Note: (Muffler)

$3.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 698801

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

745

Briggs & Stratton 691648

Screw

Note: (Brake)

$4.99

$

Usually ships in 2-12 days

0

832

Briggs & Stratton 691466

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691147

Screw

Note: (Muffler Guard)

$3.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 697551

Screw
(Superseded to 691108)

Note: (Muffler Guard)

$3.49

$

In Stock, Qty 20+

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

922A

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0

923A

Briggs & Stratton 695891

Brake
(Superseded to 796136)

Note: Used Before Code Date 08050100

$32.99

$

In Stock, only 1 left!

0

923B

Briggs & Stratton 796136

Brake

Note: Used After Code Date 08043000

$32.99

$

In Stock, only 1 left!

0

966

Briggs & Stratton 692673

Base-Air Cleaner Primer

$

$

Not available

967

Briggs & Stratton 493537S

Filter-Pre Cleaner

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0
