12E494-0110-E1 - Briggs & Stratton Horizontal Engine Electric Starter, Muffler Groups Parts Diagram

Horizontal Engine

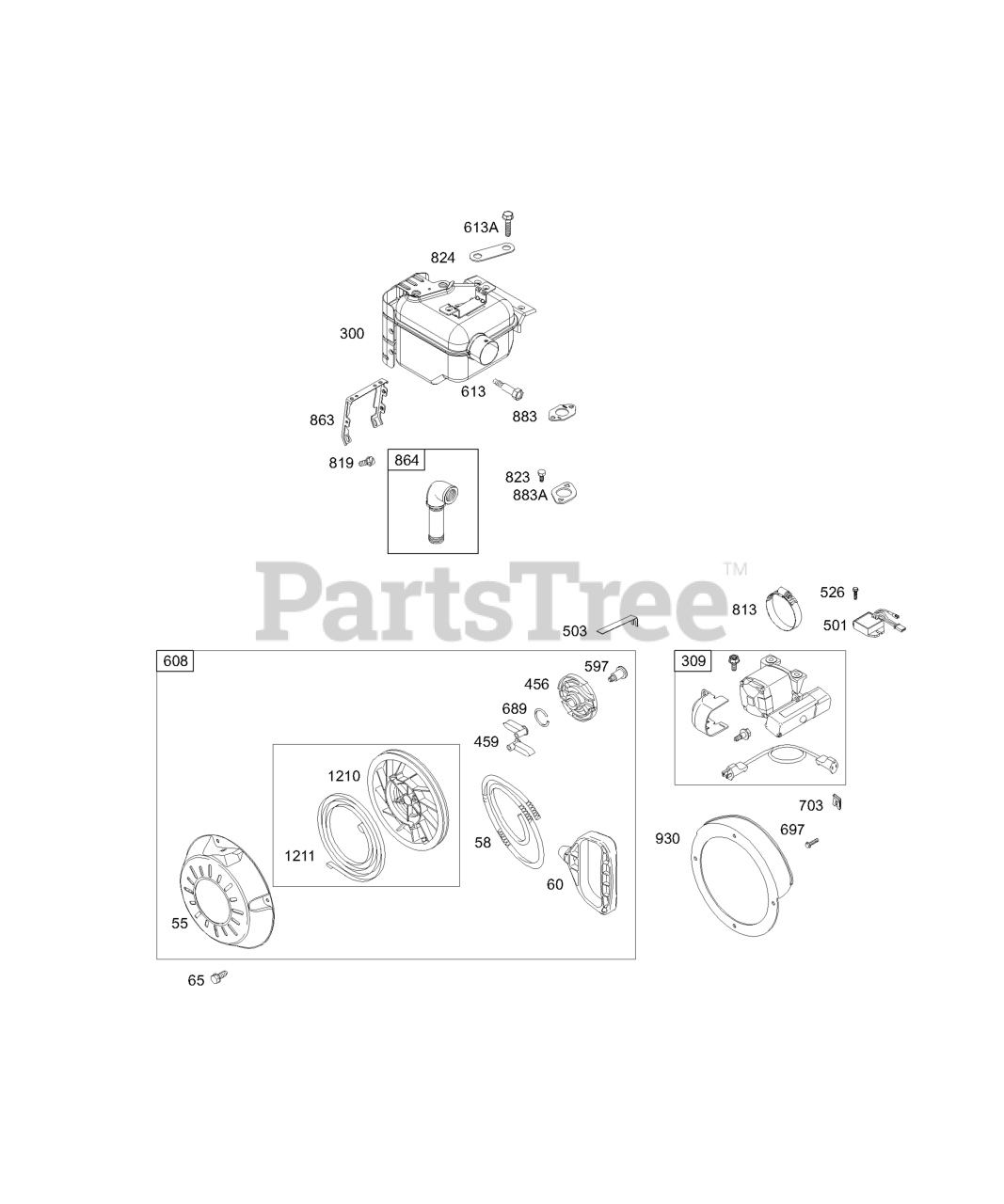

Electric Starter, Muffler Groups Parts Diagram

  • Title

55

Briggs & Stratton 696710

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 693389

ROPE, Starter (Cut To Required Length)

$9.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 699334

GRIP, Starter Rope

Note: Used After Code Date 03051100

$13.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 695740

Grip-Starter Rope
(Superseded to 699334)

Note: Used Before Code Date 03051200

$13.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 697725

SCREW

Note: (Rewind Starter)

$4.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 699787

Muffler
(Superseded to 797432)

$83.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 696818

Motor-Starter
(Superseded to 798884)

$236.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 13

0

501

Briggs & Stratton 698315

REGULATOR

$95.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 699889

Strap-Starter

$4.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 690297

Screw

Note: (Regulator)

$3.49

$

In Stock, Qty 12

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 699335

Starter-Rewind

Note: Used After Code Date 03051100

$87.99

$

In Stock, Qty 7

0

608

Briggs & Stratton 696711

Starter-Rewind
(Superseded to 699335)

Note: Used Before Code Date 03051200

$87.99

$

In Stock, Qty 7

0

613

Briggs & Stratton 697812

Screw

Note: (Muffler)

$5.99

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 691108

SCREW

Note: (Muffler)

$3.49

$

In Stock, Qty 20+

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 3 left!

0

697

Briggs & Stratton 698418

Screw

Note: (Drive Cap)

$3.49

$

Usually ships in 2-12 days

0

703

Briggs & Stratton 698320

Clip

$6.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 691685

Screw

Note: (Muffler Bracket)

$3.99

$

In Stock, Qty 6

0

823

Briggs & Stratton 691665

Screw

Note: (Muffler Adapter)

$7.99

$

In Stock, only 4 left!

0

824

Briggs & Stratton 696017

Gasket-Heat Shield

$13.99

$

In Stock, only 1 left!

0

863

Briggs & Stratton 697280

Bracket-Muffler

$13.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 697814

Adapter-Muffler
(Superseded to 699232)

$37.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

930

Briggs & Stratton 696709

Guard-Rewind

$

$

Not available

1210

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Pulley)

$19.99

$

In Stock, Qty 20+

0

1211

Briggs & Stratton 498144

Pulley/Spring Assembly

Note: (Spring)

$19.99

$

In Stock, Qty 20+

0
