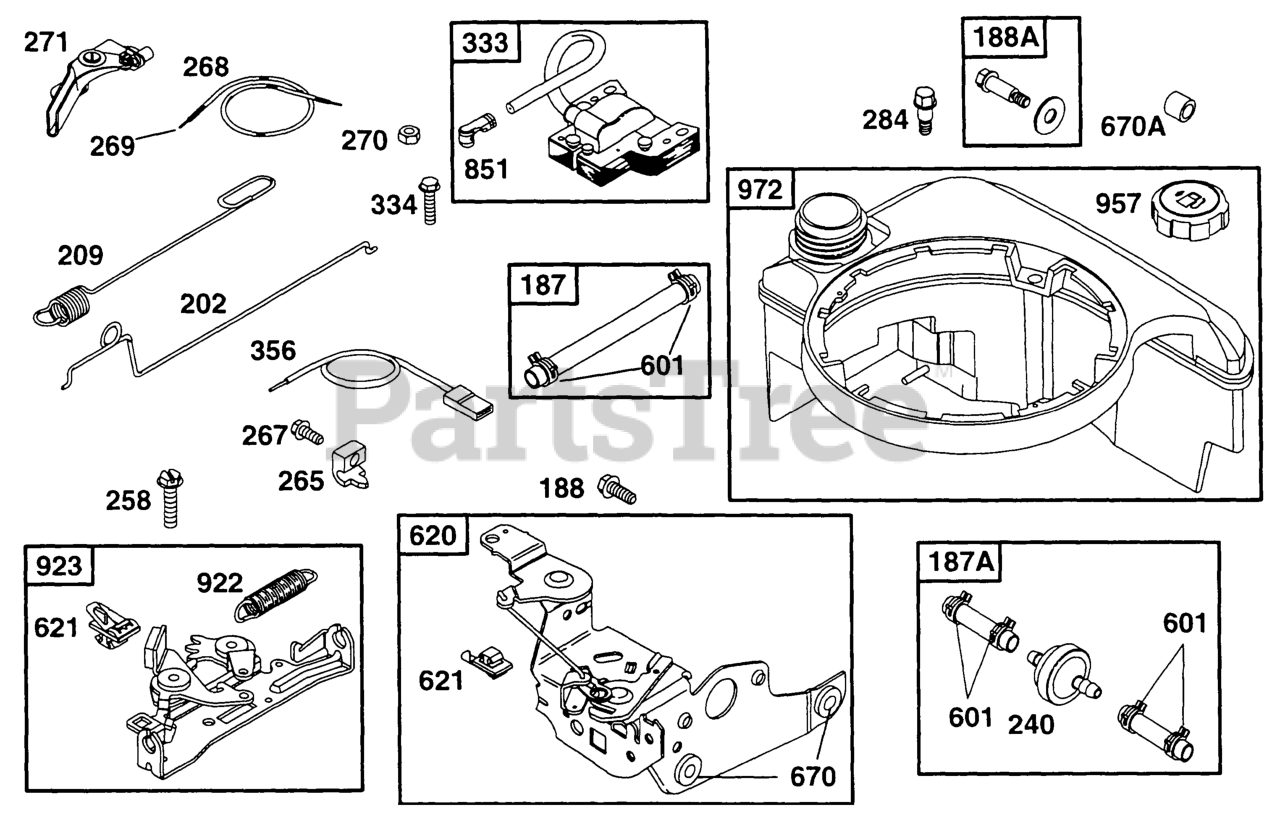

12D802-0510-XX - Briggs & Stratton Vertical Engine Controls,Fuel Tank Grp,Brake Parts Diagram

Vertical Engine

Controls,Fuel Tank Grp,Brake Parts Diagram

  • Title
187A

Briggs & Stratton 498171

Line-Fuel
(Superseded to 791891)

$18.99

$

In Stock, only 4 left!

0

187

Briggs & Stratton 492790

Line-Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188A

Briggs & Stratton 398540

Screw/Washer Kit
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

188

Briggs & Stratton 94644

Screw
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 262579

Link-Governor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263046

Spring-Governor
(Superseded to 691292)

$8.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 298090

Filter-Fuel
(Superseded to 298090S)

$

$

Not available

258

Briggs & Stratton 94512

Screw
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 213146

Clamp-Casing
(Superseded to 690798)

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 94694

Screw
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 66986

Casing-Control Wire (Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26099

Wire-Control (Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94511

Screw
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

Wire-Stop
(Superseded to 692390)

$

$

Not available

601

Briggs & Stratton 93053

Clamp-Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 497203

Bracket-Control
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 396847

Switch-Stop
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670A

Briggs & Stratton 280512

Spacer-Fuel Tank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

670

Briggs & Stratton 493823

Spacer (Includes 2)

$6.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 262640

Spring-Brake
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

$

$

Not available

957

Briggs & Stratton 397974

Cap-Fuel Tank
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

Tank-Fuel
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0
