12D602-0119-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply Parts Diagram

Vertical Engine

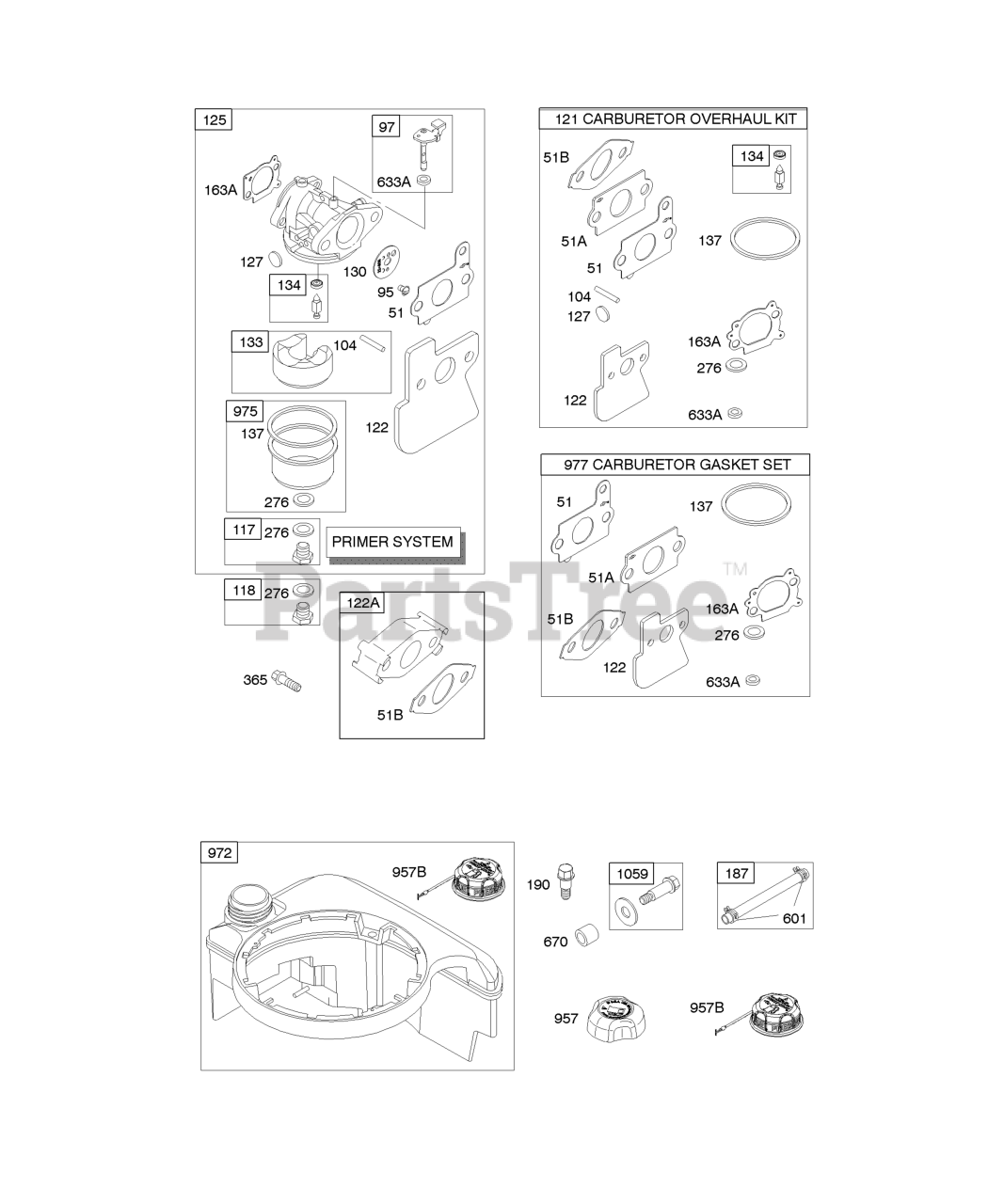

Carburetor, Fuel Supply Parts Diagram

  • Title

51

Briggs & Stratton 692668

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 697735

Gasket-Intake

$4.49

$

Usually ships in 2-12 days

0

51B

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 9

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 499682

Shaft-Throttle

Note: (Metal)

$16.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 790121

Shaft-Throttle

Note: (Plastic)

$16.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 498978

Jet-Main

Note: (Standard) Used Before Code Date 03110700

$

$

Not available

117

Briggs & Stratton 498981

Jet-Main

Note: (Standard) Used After Code Date 03110600

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 498975

Jet-Main
(Superseded to 798660)

Note: (High Altitude) Used Before Code Date 03110700

$19.99

$

In Stock, Qty 5

0

118

Briggs & Stratton 497466

Jet-Main

Note: (High Altitude) Used After Code Date 03110600

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 792383

Kit-Carb Overhaul

$28.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 692799

Spacer-Carburetor

$14.99

$

In Stock, only 1 left!

0

122A

Briggs & Stratton 792382

Spacer-Carburetor

$9.99

$

In Stock, Qty 5

0

125

Briggs & Stratton 790120

Carburetor

$

$

Not available

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 696564

Valve-Throttle

Note: (Used With Plastic Throttle Shaft)

$8.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 692667

Gasket-Air Cleaner

$4.49

$

In Stock, only 3 left!

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 5

0

365

Briggs & Stratton 691129

SCREW

Note: (Carburetor) Used After Code Date 05110100

$3.99

$

In Stock, Qty 6

0

365

Briggs & Stratton 691136

Screw
(Superseded to 691148)

Note: (Carburetor) Used Before Code Date 05110200

$3.99

$

In Stock, only 2 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

633A

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 5

0

957

Briggs & Stratton 692046

Cap-Fuel Tank

Note: (Plastic)

$5.49

$

In Stock, Qty 8

0

957B

Briggs & Stratton 699985

Cap-Fuel Tank
(Superseded to 796577)

Note: (Plastic)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 699374

Tank-Fuel

Note: (Plastic)

$64.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 792385

Gasket Set-Carburetor
(Superseded to 792383)

$28.99

$

In Stock, only 1 left!

0

1059

Briggs & Stratton 692311

Kit-Screw/Washer

$7.49

$

In Stock, only 1 left!

0
