12C802-1120-01 - Briggs & Stratton Vertical Engine Carburetor Assy Parts Diagram

Vertical Engine

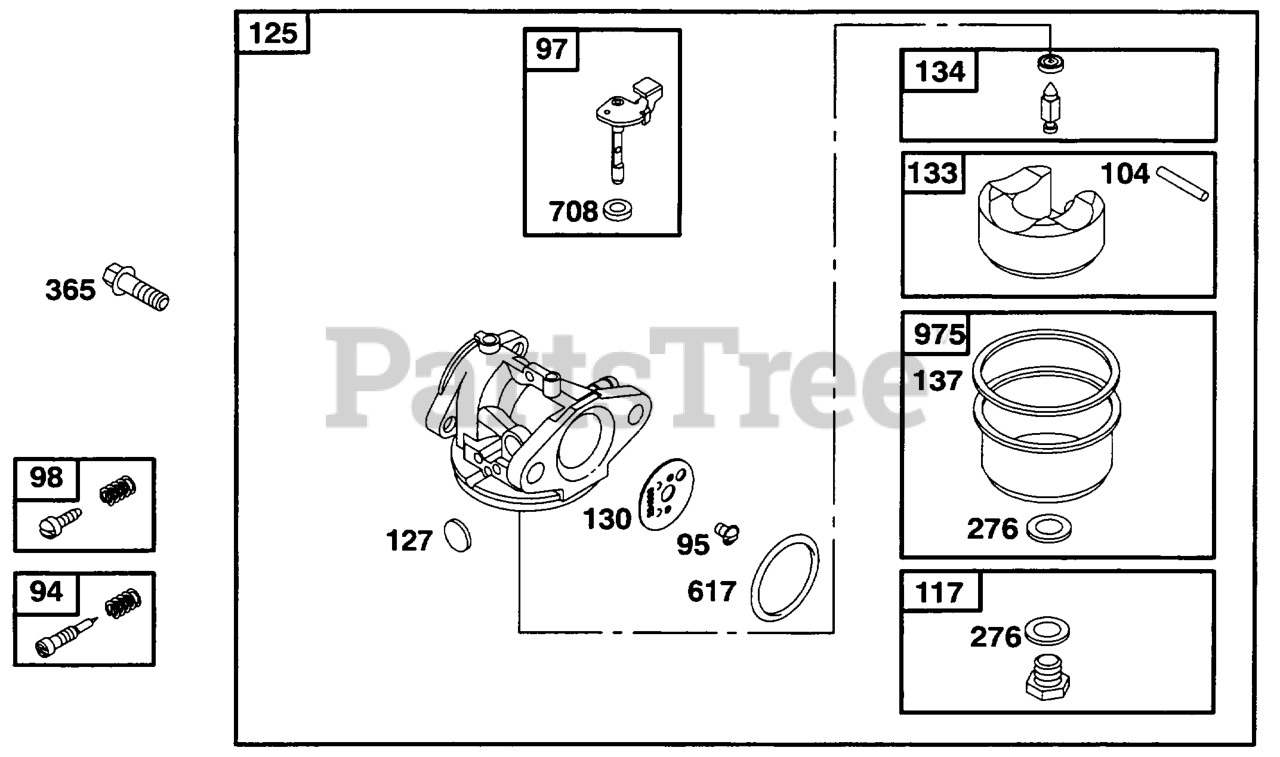

Carburetor Assy Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 4 left!

0

97

Briggs & Stratton 493267

Shaft-Throttle

$16.99

$

In Stock, only 4 left!

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 498975

Jet-Main (Standard)
(Superseded to 798660)

$19.99

$

In Stock, Qty 5

0

125

Briggs & Stratton 498966

Carburetor
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 16

0

365

Briggs & Stratton 692524

Screw (Carburetor)
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-O Ring (Intake Manifold)
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

708

Briggs & Stratton 691321

Seal-Dust (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
