12C412-0100-E1 - Briggs & Stratton Horizontal Engine Carburetor Group, Fuel Tank Group, Kits/Gaskets - Carburetor Parts Diagram

Horizontal Engine

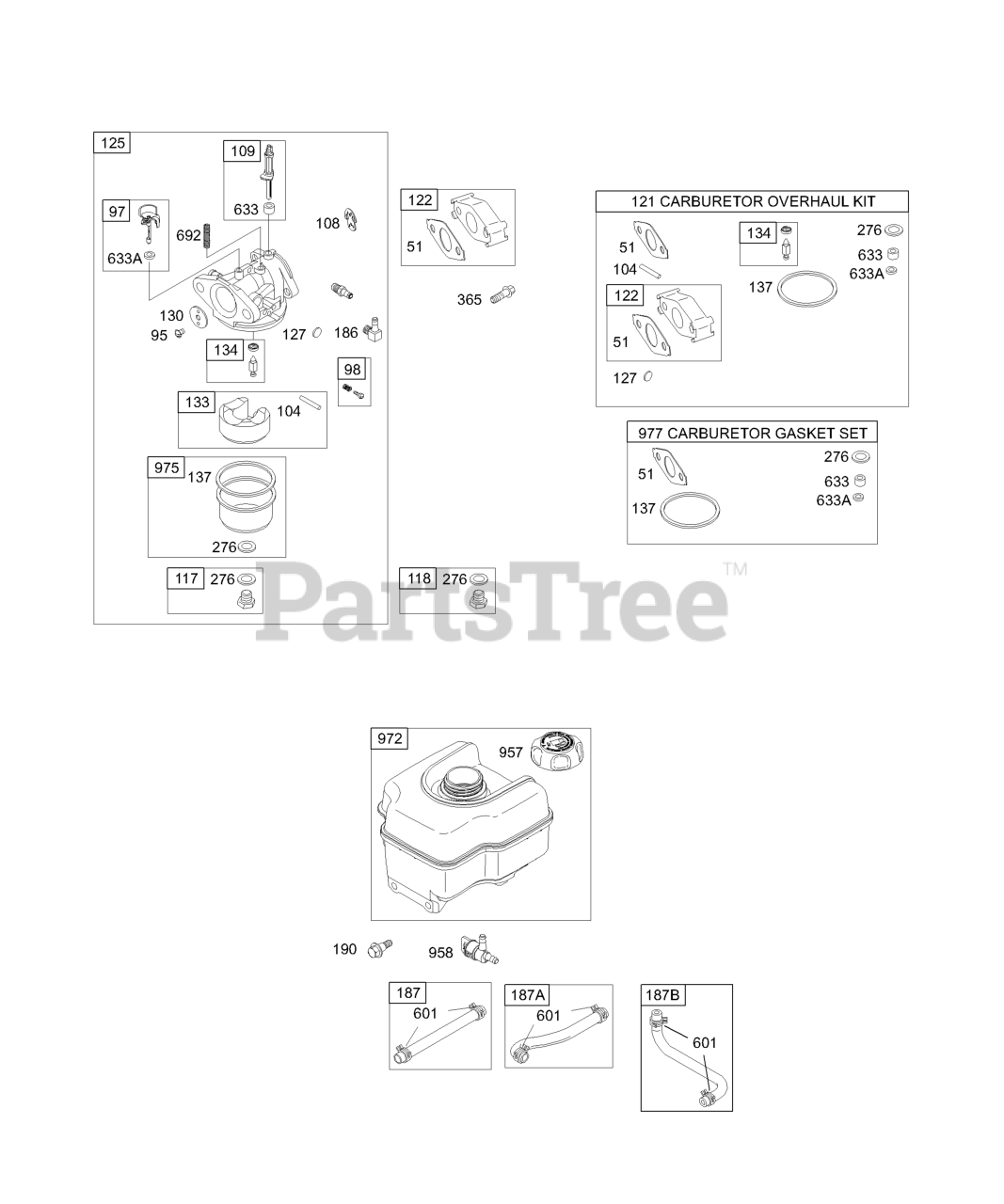

Carburetor Group, Fuel Tank Group, Kits/Gaskets - Carburetor Parts Diagram

  • Title

51

Briggs & Stratton 692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 17

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 695807

Valve-Choke
(Superseded to 796993)

$9.49

$

In Stock, only 2 left!

0

109

Briggs & Stratton 695729

Shaft-Choke

$30.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 690048

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 498977

Jet-Main

Note: (High Altitude)

$

$

Not available

121

Briggs & Stratton 695157

Kit-Carburetor Overhaul

$18.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

$13.99

$

In Stock, Qty 10

0

125

Briggs & Stratton 695727

Carburetor
(Superseded to 798917)

$92.99

$

In Stock, Qty 11

0

127

Briggs & Stratton 694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 692601

Line-Fuel
(Superseded to 791867)

Note: (Molded)

$15.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 8

0

365

Briggs & Stratton 692568

Screw

Note: (Carburetor)

$3.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Choke)

$5.49

$

In Stock, Qty 11

0

957

Briggs & Stratton 695737

Cap-Fuel Tank
(Superseded to 792647)

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 692586

Valve-Fuel Shut Off
(Superseded to 698180)

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 695736

Tank-Fuel
(Superseded to 799863)

Note: (Plastic) (4 Quart)

$89.99

$

In Stock, Qty 10

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 695156

Gasket Set-Carburetor
(Superseded to 695157)

$18.99

$

In Stock, only 1 left!

0
