12BV829Q755 - Yard-Man Walk-Behind Mower (2007) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

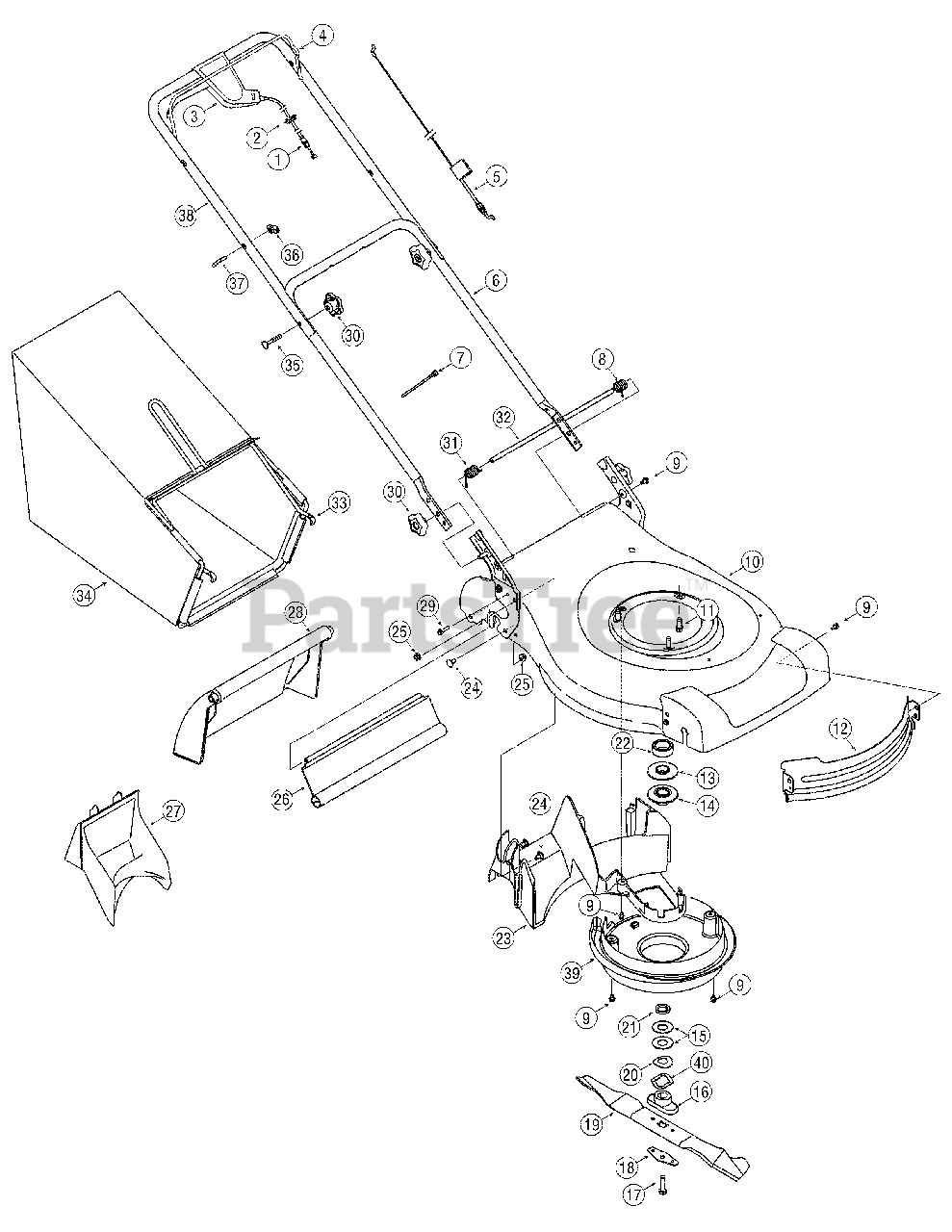

General Assembly Parts Diagram

  • Title

1

MTD 746-04265A

Drive Cable
(Superseded to 946-04265A)

$40.99

$

In Stock, only 3 left!

0

2

MTD 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

MTD 753-05096A

Drive Control Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

4

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

5

MTD 746-04213

Control Cable
(Superseded to 946-04213)

$25.99

$

In Stock, only 1 left!

0

6

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

MTD 732-04265

Torsion Spring, LH

$10.99

$

Usually ships in 3-6 days

0

9

MTD 710-0896

TT Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

10

MTD 787-01343A

21-inch Deck

Note: use with 710-0260A Carriage Bolt, 5/16-18 x .62; See note with LH/RH handle brackets

$

$

Currently unavailable

10

MTD 787-01591

21-inch Deck

Note: use with 710-3025 Hex Cap Screw, 5/16-18 x .625 GR5; See note with LH/RH handle brackets

Variations

MTD 787-01591-0638

DECK-RD 21" ECON W - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01591-0650

No Longer Available DECK-RD 21 - RED METALLIC (0650)

$

$

Not available

MTD 787-01591-0691

DECK-RD 21" ECON W - BLACK JACK (0691)

$

$

Not available

$160.99

$

Usually ships in 3-6 days

0

11

MTD 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

12

MTD 787-01346

Deck Baffle
(Superseded to 987-01834)

$47.99

$

In Stock, only 1 left!

0

13

MTD 756-04157B

Upper Engine Pulley
(Superseded to 956-04157B)

Note: Equipped on Units with Briggs & Stratton Engine

$17.99

$

In Stock, only 1 left!

0

13

MTD 756-04273

Upper Engine Pulley

Note: Equipped on Units with Honda Engine

$

$

Not available

14

MTD 756-04156B

Lower Engine Pulley
(Superseded to 956-04156B)

Note: Equipped on Units with Briggs & Stratton Engine

$

$

Not available

14

MTD 756-04272

Lower Engine Pulley

Note: Equipped on Units with Honda Engine

$

$

Not available

15

MTD 736-0514

Flat Washer, .885 x 1.850 x .060

Note: Equipped on Units with Briggs & Stratton Engine

$

$

Not available

16

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

Note: Equipped on Units with Briggs & Stratton Engine

$20.99

$

In Stock, only 1 left!

0

16

MTD 748-04096

Blade Adapter

Note: Equipped on Units with Honda Engine

$22.99

$

In Stock, Qty 20+

0

17

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 8

0

18

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 13

0

19

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

20

MTD 736-0513

Sprg Washer, .890 x 1.70 x .048
(Superseded to 936-0513)

Note: Equipped on Units with Briggs & Stratton Engine

$

$

Not available

21

MTD 750-1071

Sleeve Spacer
(Superseded to 950-1071)

Note: Equipped on Units with Briggs & Stratton Engine

$4.49

$

In Stock, only 3 left!

0

21

MTD 750-04818

Slv. Spcr., 25mm x 1.375 x .375

Note: Equipped on Units with Honda Engine

$5.99

$

Usually ships in 3-6 days

0

22

MTD 750-04825

Sleeve Spacer

Note: Equipped on Units with Honda Engine

$

$

Not available

23

MTD 731-05463A

Deck Baffle

$

$

Not available

24

MTD 710-0260A

Carriage Bolt, 5/16-18 x .62

Note: use with 787-01341A deck, bolt secures handle bracket

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-3025

Hex Cap Screw, 5/16-18 x .625 GR5

Note: use with 787-01591 deck, screw secures handle bracket

$3.99

$

In Stock, Qty 8

0

25

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-05462A

Trailshield

$22.99

$

In Stock, only 1 left!

0

MTD 710-1268

Screw, Hex Washer Hd. Tapp #10-16 x .375

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

27

MTD 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

28

MTD 731-05017A

Rear Door
(Superseded to 931-05017A)

$

$

Not available

29

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 16

0

30

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

31

MTD 732-04264

Torsion Spring, RH

$10.99

$

In Stock, only 1 left!

0

32

MTD 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

33

MTD 647-04051

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

MTD 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 664-04047

Grass Catcher
(Superseded to 964-04047)

$108.99

$

Usually ships in 3-6 days

0

35

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

36

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

38

MTD 749-04206

Upper Handle

Variations

MTD 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 731-05903

Engine Baffle

$

$

Not available

40

MTD 736-0447

Washer, Wave, 1.5 x 1.0 x .029

Note: Equipped on Units with Honda Engine

$4.49

$

In Stock, Qty 20+

0
