12B412-0100-E1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

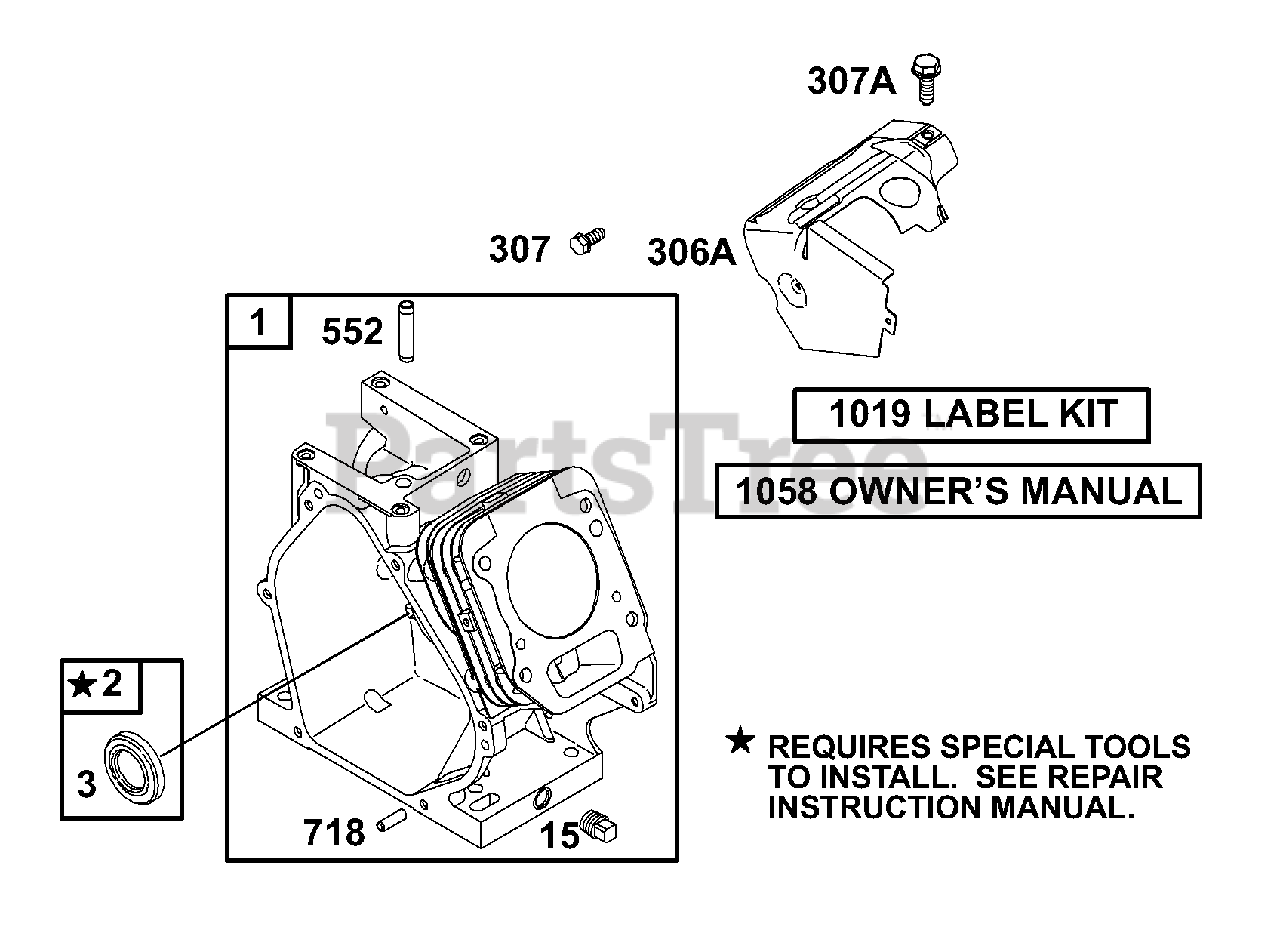

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 695771

Cylinder Assembly
(Superseded to 699505)

$255.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/seal (Magneto Side)
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil (Magneto Side)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 2 left!

0

306A

Briggs & Stratton 695710

Shield-Cylinder

$18.99

$

Usually ships in 2-12 days

0

307A

Briggs & Stratton 691003

SCREW

$3.49

$

In Stock, Qty 9

0

307

Briggs & Stratton 690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 692346

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 695442

Kit-Label

$34.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 274690

Manual-Owner's

$

$

Not available
