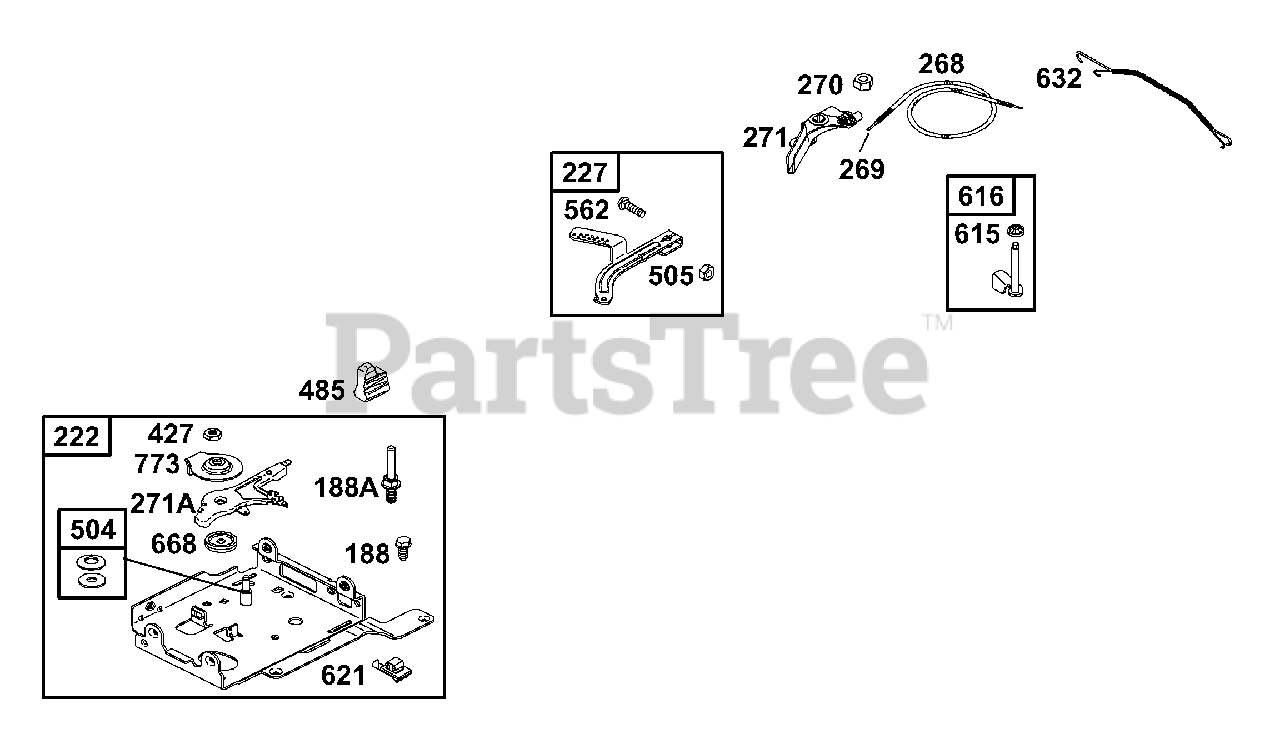

12B412-0100-E1 - Briggs & Stratton Horizontal Engine Controls Parts Diagram

Horizontal Engine

Controls Parts Diagram

  • Title

188A

Briggs & Stratton 695709

Screw (Control Bracket)

$4.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 690877

Screw (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

222

Briggs & Stratton 695742

Bracket-Control
(Superseded to 793108)

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

268

Briggs & Stratton 691072

Casing-Control Wire Wire (Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 691589

Wire-Control (Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 691027

NUT

$13.99

$

In Stock, only 2 left!

0

271A

Briggs & Stratton 695743

Lever-Control

$22.99

$

Usually ships in 2-12 days

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

427

Briggs & Stratton 694255

Nut (Control Bracket)

$3.49

$

In Stock, only 1 left!

0

485

Briggs & Stratton 695755

KNOB, Control

$11.99

$

In Stock, only 1 left!

0

504

Briggs & Stratton 694254

Washer Set-Friction
(Superseded to 695383)

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 94852

Bolt (Governor Control Lever)
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

615

Briggs & Stratton 692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 692653

Spring/link-Mechanical Governor

$8.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 694257

Spacer

$4.99

$

In Stock, only 1 left!

0

773

Briggs & Stratton 694258

Retainer

$4.49

$

In Stock, only 1 left!

0
